Low Voltage G652D Oplc Composite Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166

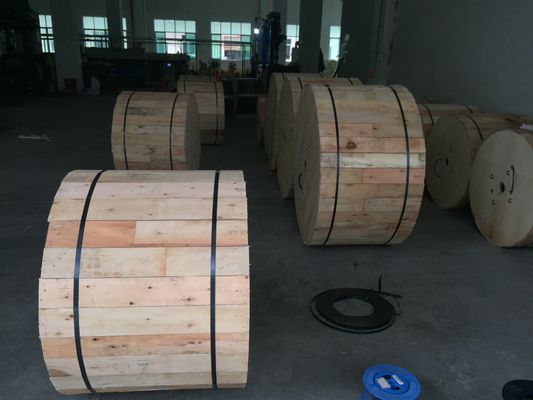

Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per 2 day |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO | Model Number: | GYTA |
Detail Information |
|||
Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
---|---|---|---|
Application: | Aerial/duct | Number Of Conductors: | 12 24 36 48 |

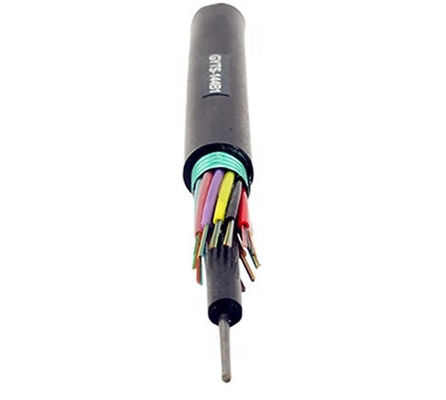

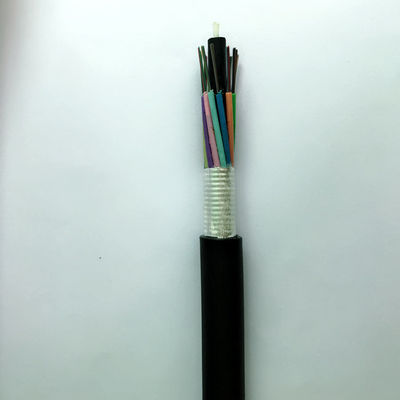

Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
Central Strength Member: | Aluminium Wires | ||
Highlight: | Armored Outdoor Fiber Optic Cable,GYTA Outdoor Fiber Optic Cable,G657A2 Outdoor Fiber Optic Cable |
Product Description
Characteristics:
1. The precise control of the excess length of the optical fiber ensures that the optical cable has good tensile properties and temperature characteristics.
2. The loose tube material itself has good water resistance and high strength. The tube is filled with special grease to provide critical protection for the optical fiber. Good pressure resistance and flexibility.
3. The PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance.
4. Use the following measures to ensure the waterproof performance of the optical cable
Optical Characteristics
|
|||||
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
||
Attenuation
(+20℃) |
'@850nm
|
≤3.0 dB/km
|
≤3.0 dB/km
|
||
'@1300nm
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|||
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|||
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|||
Bandwidth
(Class A) |
'@850nm
|
≥500 MHz·km
|
≥200 MHz·km
|
||
'@1300nm
|
≥1000 MHz·km
|
≥600 MHz·km
|
|||
Numerical Aperture
|
0.200±0.015NA
|
0.275±0.015NA
|
|||
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
Tensile Strength | Long Term (N) | 1000 |
Short Term (N) | 3000 | |
Crush Resistance | Long Term (N) | 1000 |
Short Term (N) | 3000 | |
Bending Radius | Static (mm) | 10D |
Dynamic (mm) | 20D |
