8 12 24 Core GYTC8Y/GYTC8S Strand Fiber Optic Cable Self Supporting Fiber Optic Cable
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001,ROHS,CE,FCC | Model Number: | GYTC8S-24B1,48B1 |
|
Detail Information |
|||
| Fiber Type: | G652D | Fiber Count: | 2-144 Cores |
|---|---|---|---|
| Length: | 2 Km Or Customized | Model Number: | GYTC8S |
| Color: | Black | Messenger Wire: | 1.0*7 Steel Stranded Wire |
| Application: | Aerial,Overhead | Structure: | Figure 8 Cable |
| Type: | Singlemode & Multimode | Operating Temperature: | -40 ~ +60 C |
| Oem: | Yes | Armored: | Aluminium Tape/Steel Tape,steel Tape |
| High Light: | Overhead Figure 8 Fiber Optic Cable,2km Length Figure 8 Fiber Optic Cable,Multimode Figure 8 Fiber Optic Cable |
||
Product Description
24/48 Core Aerial Optical Fiber Cable Gytc8s
24 Core 48 Core Figure 8 GYTC8S Self-Supporting Armored Outdoor Fiber Optic Cable

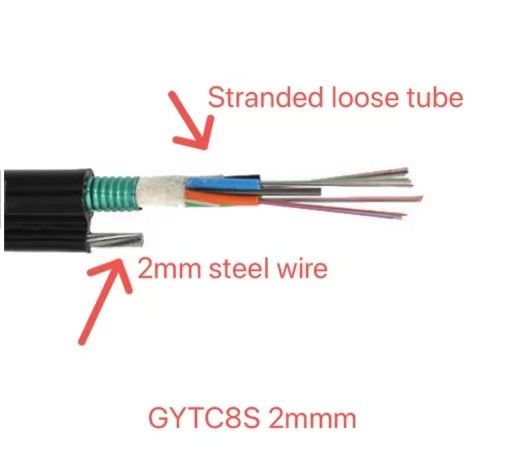

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.
Features
1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Dimensional Characteristics
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) | |
| GYTC8S 2-36 | 6 | 2.3 | 6 | 11.6X25.5 | 270 |
| GYTC8S 38-72 | 12 | 2.3 | 6 | 13.2X28.5 | 310 |
| GYTC8S 74-96 | 12 | 2.3 | 8 | 14.9X33.0 | 390 |
| GYTC8S 98-120 | 12 | 2.3 | 10 | 16.8X33.0 | 390 |
| GYTC8S 122-144 | 12 | 2.3 | 12 | 18.8X35.0 | 440 |
Picture Show
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
