GYTC8S Communication Figure 8 Fiber Optic Cable For Aerial

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001,ROHS,CE,FCC Model Number: GYTC8S-24B1,36B1,48B1

Detail Information

Fiber Type: G652D Fiber Count: 2-144 Cores
Length: 2 Km Or Customized Color: Black
Messenger Wire: 1.0*7 Steel Stranded Wire Application: Aerial,Overhead
Structure: Figure 8 Cable Type: Singlemode & Multimode
Operating Temperature: -40 ~ +60 C Oem: Yes
Armored: Aluminium Tape/Steel Tape,steel Tape Certification: ISO9001,CE,ROHS,CE And ROHS
Strength Member: Steel Wire Strength Member Out Sheath: HDPE
Highlight:

GYTC8S Figure 8 Fiber Optic Cable

,

Aerial Figure 8 Fiber Optic Cable

,

Oem Figure 8 Fiber Optic Cable

Product Description

Communication cables Figure 8 GYTC8S Self-Supporting for aerial



Fig.8 GYTC8S Communication Cables For Aerail



Product Characteristic:

1. The messenger wire together with OFC as a whole part. OFC installation can be completed at one time. Ease construction and less affected by environment, reducing installation cost.

2. It adopts stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telephone pole.

3. The reasonable structure design and precision control for over length ensure OFC with excellent performances of mechanical tensile strain and environment temperature.

4. The close structure of SZ layer stranding preventing optical fiber from stress under bad environment.

5. It could ensure moisture and water resistant performance of OFC with filling compound filled outside strength member and inside cable core.

It could ensure much better moisture resistance and improve side press resistance perform with longitudinal steel plastic tape wrapping cable core.



Structure :

  • Loose tube
  • Filling compound
  • Aluminum (steel) tape coated with PE jacket
  • Self-supporting by high grade zinc-galvanized stranded steel wires

GYTC8S Communication Figure 8 Fiber Optic Cable For Aerial 0





Dimensions of Cable Constructions

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)

4 1+5 4 1.8±0.1 1.4/1.4 1.6 9.0*14.5 155
6 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
8 1+5 8 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
24 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0*14.5 155
36 1+6 12 1.9±0.1 1.6/1.6 1.6 9.6*15.2 168
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.6*15.2 168
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.8*16.3 190
96 1+8 12 2.2±0.1 1.6/3.5 1.6 12*17.5 205
144 1+12 12 2.2±0.1 2.0/6.4 1.8 15.8*21.3 320

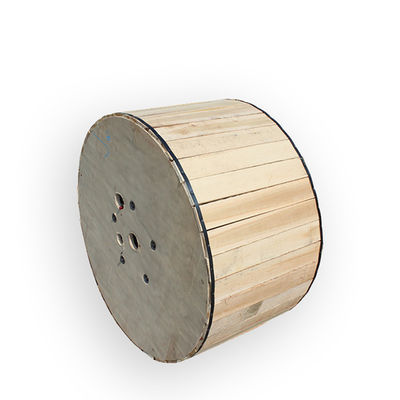

Drum

Cable type Drum
Height (mm) Width (mm) Inner diameter (mm)

Length

(km)

Drum type
GYTC8S-(4-36) 950 760 400 2 wood drum
GYTC8S-(48-72) 1000 760 400 2 wood drum
GYTC8S-96 1200 760 500 2 wood drum





Features

1,High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
2,Good mechanical and temperature performance
3,High strength loose tube that is hydrolysis resistant
4,Special tube filling compound ensure a critical protection of fiber
5,The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof





Picture Show

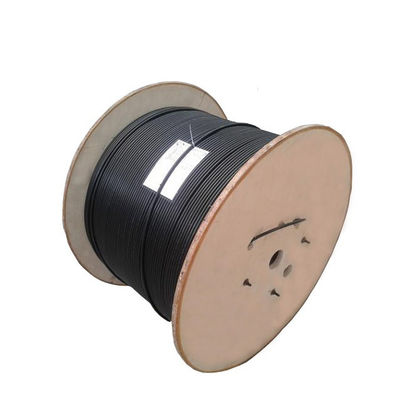

GYTC8S Communication Figure 8 Fiber Optic Cable For Aerial 1

GYTC8S Communication Figure 8 Fiber Optic Cable For Aerial 2



GYTC8S Communication Figure 8 Fiber Optic Cable For Aerial 3



FAQ

1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.



2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



3.What is your warranty period?

25 years for fiber optic cable



4.What is your delivery time?

Usually within 3-5 working days



5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
