Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | 1/2/3/4/5 km in one wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5dyas | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000 Per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC SDOC | Model Number: | GYXTW-12B1 |
|
Detail Information |
|||
| Jacket Material: | PE | Outer Diameter: | 6/7/8/9mm |
|---|---|---|---|
| Steel Wire: | 0.7/0.8/1.0mm | Color: | Black |
| Fiber Count: | 2-24 Core | Structure: | Unit Tube |
| Strength Member: | Two Steel Wire | Installation: | Aerial &Duct |
| Product Name: | GYXTW Optic Fiber Cable | Fiber Type: | YOFC Or As Request |
| High Light: | GYXTW multimode fiber patch cable,9mm multimode fiber patch cable,24 Core multimode fiber optic cable |
||
Product Description
Single mode Multi mode Fibra Optica Cable Types Fiber Optic Cable GYXTW
| Items | Unit | Specification | |
| Single mode G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Features:
1.Small outer diameter, light weight and convenient construction
2.Stable fiber excess length control Excellent environmental performance
3.After the cable is formed, the additional attenuation of the fiber is almost zero,the dispersion value does not change
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃

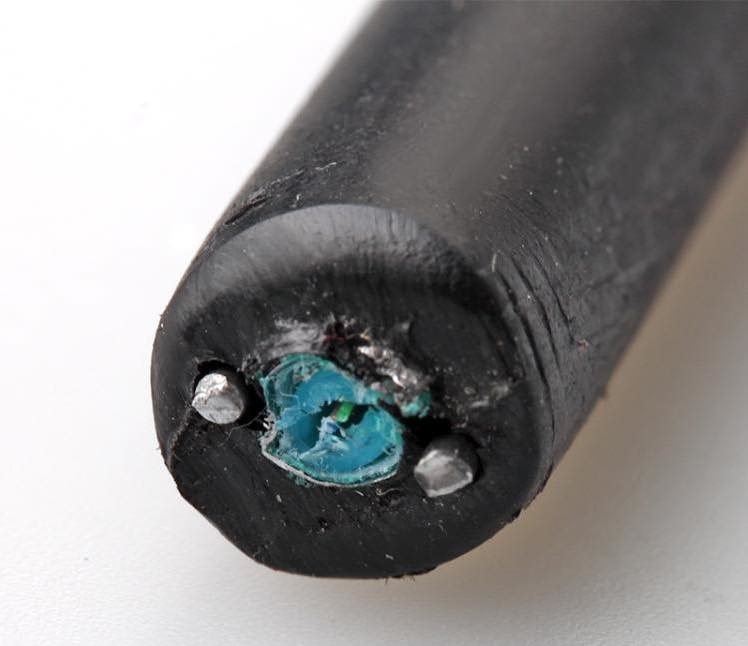

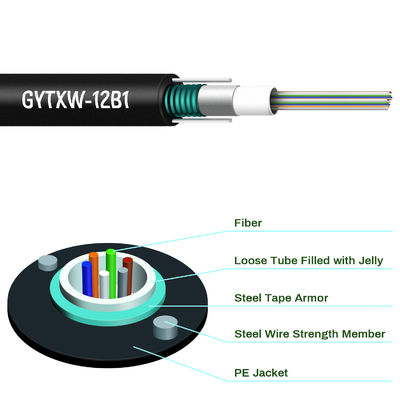

Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D Features |
Different diameter
Packing
1/2/3/4/5 km in one wooden drum,deliver days:3-5work days
Shipping
By sea/by air or express delivery,it depends on the order quantity
OEM Service support to printing your company logo,year,meter metion.
