48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker
48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker
Contact Now

48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYTS

Detail Information
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 2-288
Jacket: PE Color: Black
Length: 1km 2km 3km 4km Warranty: 25 Years
Application: Aerial,Duct
High Light:

GYTS Underground Fiber Cable

,

GYTS Armoured Fiber Cable

,

48 Cores Underground Fiber Cable

Product Description

2 4 6 8 12 24 32 48 Cores Armoured Optical Fiber Cable GYTS Underground Fiber Cable

48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 0

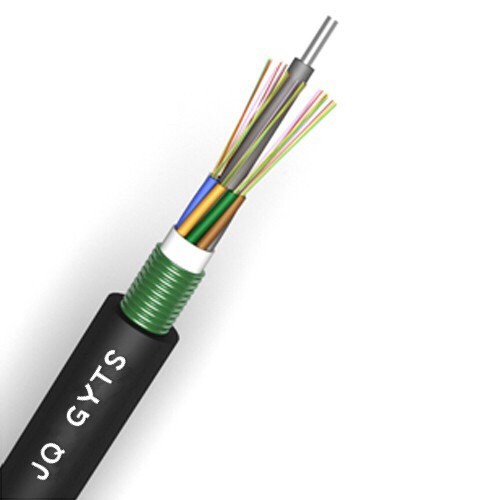

Structure feature

1.Loose tubes(or some filers) stranded around the metal central strength member
2.Bound by corrugated longitudinal steel tape with outer PE jacket
3.The tube is made of good temperature property material. A number of single or multi-mode fibers double-coated are contained in the loose tube.
48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 1
Product feature


1.Choice of Fibre Type

2.Colour code of Fibre

3.High water resistance

4.High crush resistance

5.Choice Sheath Material

6.Low attenuation and dispersion

7.Good flexibility and bending performance

48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 2
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D



48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 3





Fiber Tube Color:
48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 4

Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.
48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 5
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 6
Exhibition Picture
48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker 7
