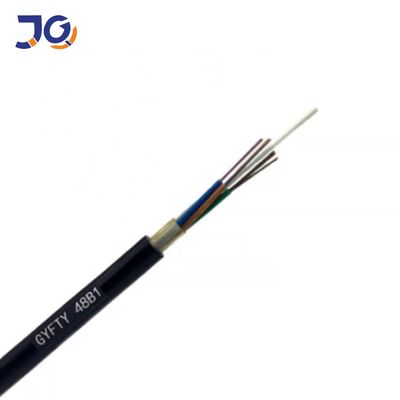

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYFTY

Detail Information

Jacket: PE Color: Black
Fiber Count: 2-144 Cores Strength Member: FRP
Fiber Mode: Single Mode/multi Mode Warranty: 25 Years
High Light:

Gyfty Non Armored Fiber cable

,

24 Core Non Armored Fiber cable

,

24 Core stranded loose tube cable

Product Description

2 4 6 12 24 Core Fibre Optic Cable Stranded Loose Tube Non Armored Gyfty Fibra Optica

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 0

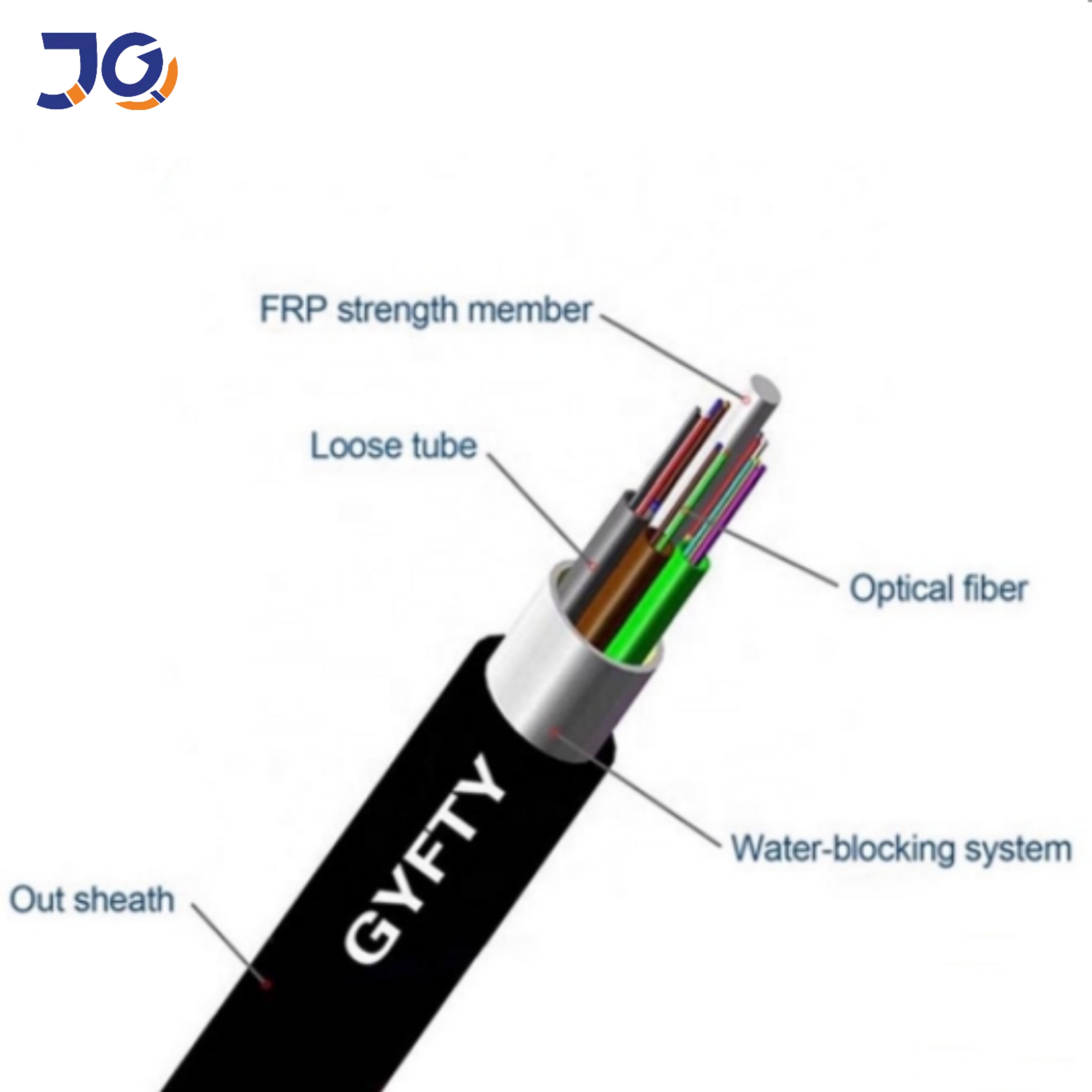

Structure Feature

1.Non-metallic water blocking+ glass yarn provides high sensile strength.
2.Special gel in the tube offers critical protection for the fibers.
3.With FRP central strength member.
4.PE jacket itself prevents UV, and UV material can be added to perform much better.

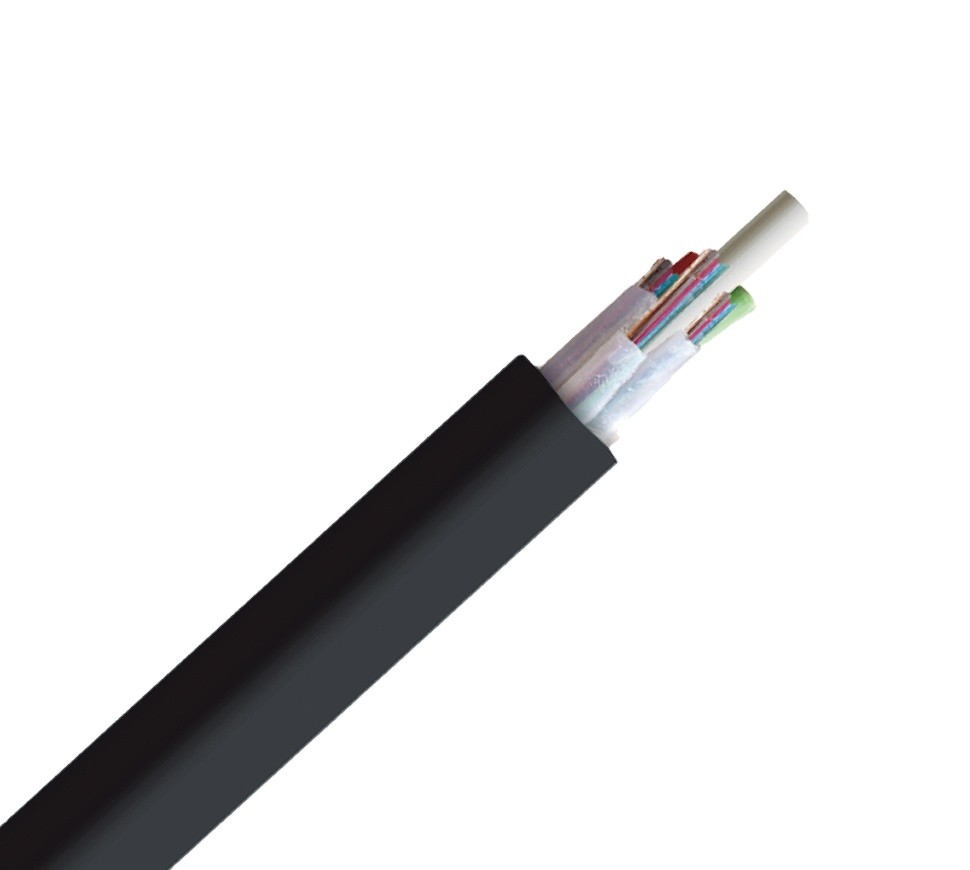

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 1


Product Feature
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 2

Technical parameters
cable count
weight
OD
Minimumum Allowable
Tensile Strength (N)
Minimum Allowable
Crush Load(N/100mm)
Min Bendingradius
(MM)
Suitable
Temperature

KG
mm
short/long term
short/long term
short/long term
(°C)
2--30
80
9.0
1500/600
1000/300
10D/20D
--40~+60
38-48
109
9.2
1500/600
1000/300
10D/20D
--40~+60



Factory Picture

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 3



24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 4



Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 5

24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 6



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
24 Core Stranded Loose Tube Gyfty Non Armored Fiber Cable 7
