Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your order quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ASU

Detail Information

Jacket: PE Color: Black
Fiber Type: G652D/G657A1/G657A2 Fiber Count: 1-12 Cores
Strength Member: 2pcs FRP Warranty: 25 Years
OEM: Yes
High Light:

12 Core ASU Fiber Optic Cable

,

Mini ADSS ASU Fiber Optic Cable

,

80m Span ASU Cable

Product Description

Single Mode 6 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span 80m Fiber Optic Cable

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 0

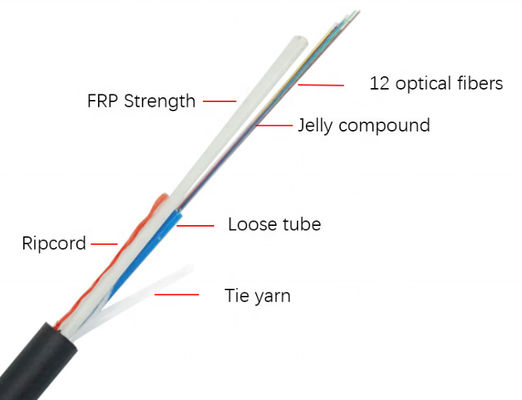

Structure Feature:
1.The ASU Mini ADSS optical fiber is put in a loose tube with 4-12 cores in the tube.
2.Tube filling compound will be used for as water blocking elements.
3.FRP are put together for the tensile strength purpose.
4.Cable surface is extruded with a PE outer sheath.
Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 1

Product features:
1.Small Size and Ligth Weight
2.Two FRP as strength member to provide good tensile performance
3.Gel Filled or gel free , good waterproof performance
4.Low price ,high fiber capacity

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 2

Technical Data
No. of cable
2-12
Fiber Model
G.652D
Strength Member
Material
FRP
Diameter(±0.05)mm
1.8
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.8
Thickness(±0.03)mm
0.35
The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter(±0.2)mm
6.7
Cable Weight(±5)kg/km
38
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70



Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 3



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)



Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 4



Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 5

Factory Picture

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 6



Certificate

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 7

Mini ADSS 12 Core ASU Fiber Optic Cable Self Supporting Span 80m 8
