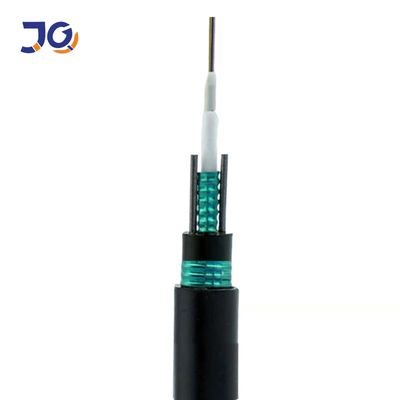

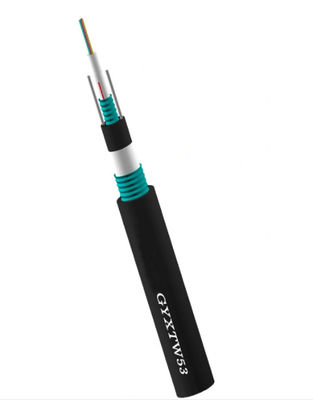

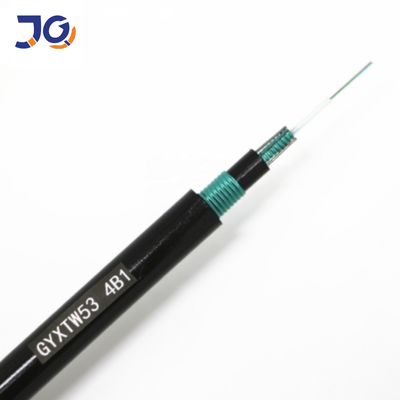

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYXTW53

Detail Information

Fiber Count: 2-24 Life Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Overhead, Duct, Direct Burial
Factory: Yes Color: Black
High Light:

Sheathed Central Loose Tube Fiber Cable

,

Armored Central Loose Tube Fiber Cable

,

GYXTW3 cst fibre optic cable

Product Description

Gyxtw53 Armored Sheathed Double Central Loose Tube Outdoor 8 12 24 Core Fiber Optic Cable

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 0

1. Product introductiom:

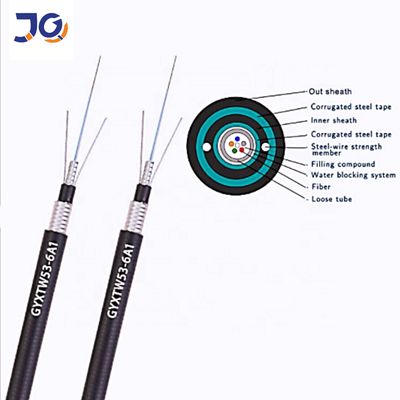

1.These cables are constructed with a central tube filled with water blocking jelly giving it excellent water and moisture resistance.

2.Two corrugated steel armouring and two steel wires strengthening with in the inner PE sheath and an outer PE sheath give this cable excellent tensile strength, mechanical and environmental protection.

3.They have small diameter, light weight and installation friendly since they come in a single tube with loose tube fiber count up to 12 fibers.

4.Their compact construction protects the loose tube from shrinking, the double armour makes it crush, rodent and impact resistance, the outer PE sheath gives it ultraviolet protection.

5.This cable is suitable for external distribution through ducts, conduits or aerial pipe lines.

6.They come in larger delivery length, so can also be used in long distance communication system, service drop cables, building interconnections.



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 1

2. Features:

1. Good mechanical and temperature performance

2.Metallic armor to protect cable from rodent attack and mechanical damage.

3.Embedded steel wire provide desirable tensile strength and crush resistance.

4.Compact, easy to install.

5.UV and waterproof design.



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 2

3. Application:

Duct, direct burial, aerial

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 3



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 4



4.Ordering Information



Fiber Count Outer Diameter (mm) Loose Tube Diameter (mm) Cable Weight (kg/km) Bend Radius
Short (mm) Long (mm)
2 12.0 2.8 165.0 20D 10D
4 12.0 2.8 165.0 20D 10D
6 12.0 2.8 165.0 20D 10D
8 12.0 2.8 165.0 20D 10D
12 12.0 2.8 165.0 20D 10D
GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 5



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 6



There are twelve fiber color code.They are A grade fiber.

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 7

All products will have been strictly quality checked in house before packing.

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 8

All products will be well packed before shipment.



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 9




We are fiber cable manufacturer. We have a factory.

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 10

GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 11



We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351



GYXTW3 Armored Sheathed CST Central Loose Tube Fiber Optic Cable 12









FQA



1,Q:Are you a factory or trade company?

A:We are a factory



2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:What’s delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
