12 Core ASU Aerial Optical Cable Voyage For Fiber Optic

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your order quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ASU

Detail Information

Jacket: PE Color: Black
Fiber Type: G652D Fiber Count: 4/6/12 Cores
Strength Member: 2pcs FRP Lift Time: 25 Years
Factory: Yes Fiber Brand: YOFC
High Light:

ASU Aerial Optical Cable Voyage

,

12 Core Aerial Optical Cable Voyage

,

12 Core Fiber Optic ASU cable

Product Description

Aerial Outdoor Optical Cable 4 6 12 Core Asu 120 Meters Voyage Fiber Optic Cable

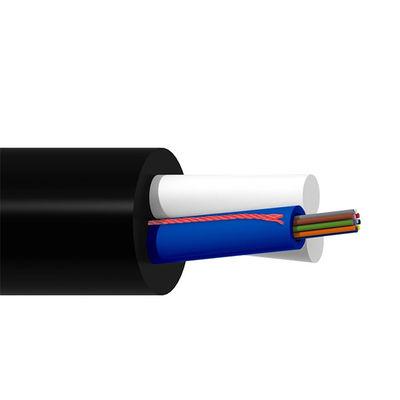

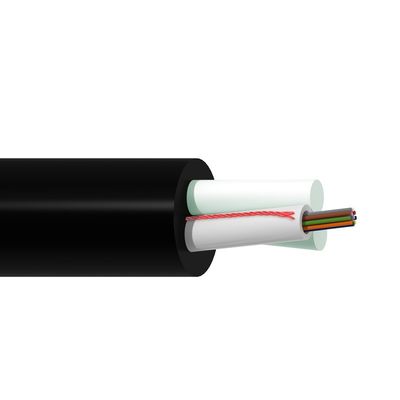

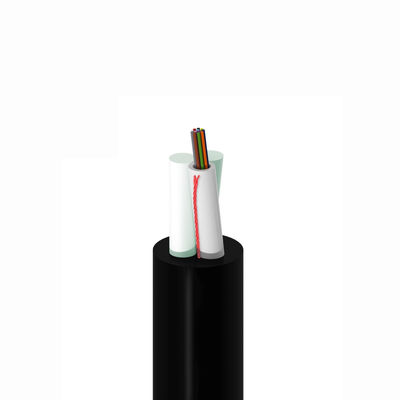

12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 0

Product Details



Non-Armored Uni-Tube optical cable with fibers placed in looser tube.

The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene as outer jacket.

Two embedded FRP or metallic wire provide desire tension.

The red rip cord makes this cable easily to open it.



12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 1



Characteristics
1:Embedded FRP as two strength members provide desirable tensile strength.
2:Compact, light weight ,easy to install.
3:UV and moisture-resistant design
12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 2
ASU 80
The ASU80 optical cables are self-supporting in spans of up to 80 meters.
Therefore, they are indicated for cable passage in urban centers,
as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.

12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 3
ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters.
Therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.
12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 4
Technical Data
ASU Fiber Counts 12 core



Sheath Reinforcement

Material FRP*2
  Dia(±0.05mm) 2.0mm



Loose Tube

Material PBT
  Diameter(±0.05mm) 2.0mm
  Thickness(±0.03mm) 0.35mm



Outer Sheath

Material MDPE/HDPE
  Thickness(±0.03mm) 1.6mm(nominal)
  Color Black
Cable Diameter(norminal) 7.0mm

12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 5

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 6



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)



12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 7



12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 8

Factory Picture

12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 9



We still have more.Please feel free to contact me. Whatsapp:+86 18122383351



12 Core  ASU Aerial Optical Cable Voyage For Fiber Optic 10
