12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span

1KM
MOQ
12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 4-12
Warranty: More Than 25years
Fiber Type: G652D,G652B,G657A
Application: Aerial
Fiber Brand: YOFC
Packing: 2km/Wooden Durm
Strength Member: FRP
OEM: Yes
Jacket: PE
Highlight:

FRP Strengthen ASU Cable

,

12 Core ASU Cable

,

FRP Strengthen asu wire
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Jiqian
Certification: ISO9001/CE
Model Number: ASU
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 working days ,it depends on your order
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

12 Core Self Supporting 120M Span 2 Frp Strengthen Member Aerial ASU Cable De Fibra Optica

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 0


Product Description

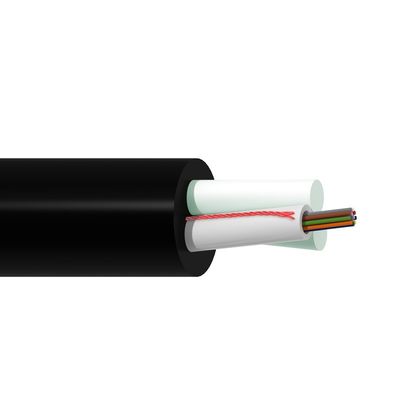

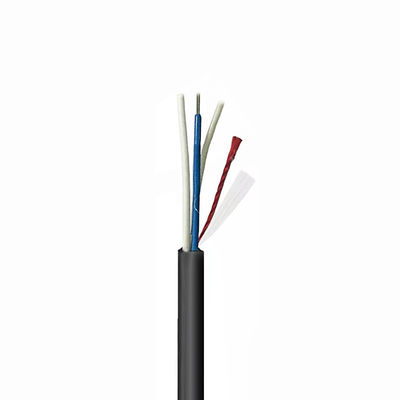

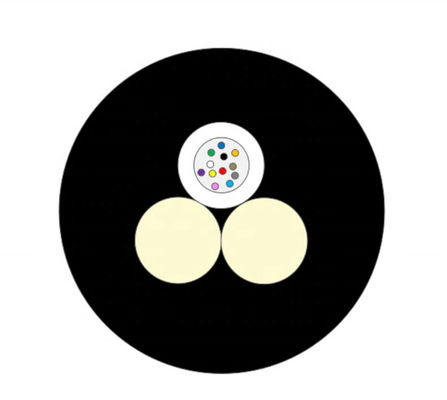

Non-Armored Uni-Tube optical cable with fibers placed in looser tube.
The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene as outer jacket.
Two embedded FRP or metallic wire provide desire tension.
The red rip cord makes this cable easily to open it.
12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 1
ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters.
Therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.
12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 2
ASU 120
ASU120 optical cables are self-supporting in spans of up to 120 meters. Therefore, they are indicated for the passage of cables in environments

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 3





Applicable fields:

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 4







Specification



No. of cable
1-12
Fiber Model
G.652D
Strength Member
Material
FRP

Diameter(±0.05)mm
1.8
Loose Tube
Material
PBT

Diameter(±0.06)mm
1.8

Thickness(±0.03)mm
0.35

The Max.Core NO./Tube
12
Outer Sheath
Material
PE
Cable Diameter(±0.2)mm
6.7
Cable Weight(±5)kg/km
38
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60

Transport&Storage
-40~+70

Operation
-40~+70
We still have self-supporting cables for longer distances on the market.
Such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.







12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 5



There are twelve fiber color code.They are A grade fiber.

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 6

All products will have been strictly quality checked in house before packing.

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 7

All products will be well packed before shipment.



12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 8




We are fiber cable manufacturer. We have a factory.

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 9

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 10



We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351



12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span 11
