Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYFXTY-6B1.3

Detail Information

Fiber Type: Single Mode G652D Jacket Material: PE
Strength Member: Two FRP Cable Diameter: 6mm
Color: Black Storage/Operation: -40℃~+70℃
Application: Aerial Fiber Count: 2/4/6/8/12 Core
Length: 2km Or Customized Length
High Light:

G652D GYFXTY Fiber Optic Cable

,

Aerial GYFXTY Fiber Optic Cable

,

Single Mode g652d fiber cable

Product Description

Aerial Single Mode G652D 6Core 8 Core Fiber Optic Cable GYFXTY

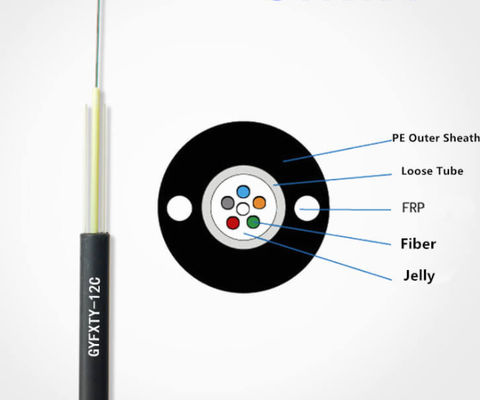

Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable 0







Optical Characteristics











G.652



G.655



50/125μm



62.5/125μm



Attenuation(+20C)



@850nm











3.0dB/km



≤3.0dB/km



@1300nm











≤1.0dB/km



≤1.0dB/km



@1310nm



≤036dB/km



≤0.40dB/km











@1550nm



0.22dB/km



≤0.23dB/km











Bandwidth(ClassA)



@850nm











2500MHz-km



2200MHz.km



@1300nm











1000MHz.km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.15NA



CableCut-off Wavelength



1260m



1480nm













Structure and Technical Specification OF GYFXTY

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable 1





Technical data



Fiber

count



Cable

diameter(mm)



Nominal

weight(KGS)



AllowableTensileLoad(mm)



Allowable Crush Resistance(N/100m)



Short term



Long term



Short term



Long term



2-12



8.0



60



800N



400N



1000N/100m



300N/100m





Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;



Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable 2

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable 3

Aerial Single Mode G652D 8 Core GYFXTY Fiber Optic Cable 4
