4 Core Singlemode Figure 8 GYTC8S Fiber Optic Cable For Aerial Application

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYTC8S

Detail Information

Type: Fiber Optic Cable, Gytc8s Number Of Conductors: ≥ 10
Jacket: PE Cores: 2-288
Application: Aerial Fiber Mode: Single Mode & Multi Mode
Storage Temperature: -20℃ - +70°C
High Light:

singlemode figure 8 cable

,

4 core figure 8 cable

,

Aerial figure 8 fiber optic cable

Product Description

Outdoor aerial self supporting 24core 48core g652d g657a fiber optical figure8 cable gytc8s gyxtc8s gytc8a ftth flat drop cable

Tchnical parameters

Performance Long-term Short-term
Max.Tension(N) 2500 5000
Max.Crushing(N/10cm) 300 1000
Resistance(N/100mm2) 20D(Dynamic) 10D(static)
Storage and operating temperature -40℃ to +70℃



Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.2 dB/km
@1300nm   ≤1.0 dB/km ≤1.2 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm

Cable Specification:

Item Name:gytc8s cable

Optical Mode:Singlemode/Multimode

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm

Total Fiber Count:2-288

Bend Radius(Static/Dynamic):10D/20D

Working Life:More than 25 years

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Features:

Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.

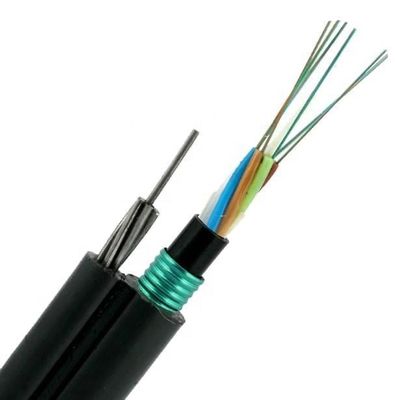

4 Core Singlemode Figure 8 GYTC8S Fiber Optic Cable For Aerial Application 0

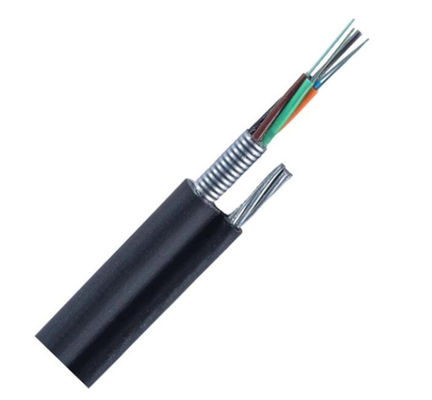

Cable Structure

4 Core Singlemode Figure 8 GYTC8S Fiber Optic Cable For Aerial Application 1

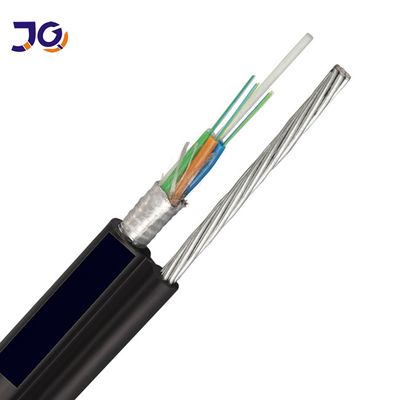

Packing:

1/2/3/4km or customized length export wooden drum

4 Core Singlemode Figure 8 GYTC8S Fiber Optic Cable For Aerial Application 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
