GYXTW Steel Tape Armored Loose Tube Cable 24 Core Single Mode

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information

Out Color: Black Armoured: Steel Tape
Jacket: PE Loose Tube Color: At Your Request
Operating Temperature: -40°C~+70°C Place Of Origin: Guangdong, China
Fiber Material: YOFC Fiber Type: Single Mode
Key Word: GYXTW
High Light:

steel tape armored loose tube cable

,

24 core loose tube cable

,

GYXTW loose tube fiber cable

Product Description

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw



Cable structure and parameter

Fiber count Outer
diameter
Max.Bending Radius(Static/Dynamic term) Max.tensile strength(long/short term) Max.Crush Resistance Weight
(approx.)
mm D N N/100mm² kg/km
2,4,6,8 8.3 10/20 600/1500 3000 66
10,12 9.0 10/20 600/1500 3000 82

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Cable bending radius: 10 x cable diameter (static)

20 x cable diameter (dynamic)

Application temperature range

Operating temperature range -40℃ to +70℃
Storage / Transport temperature range -40℃ to +70℃
Installation temperature range -20℃ to+70℃

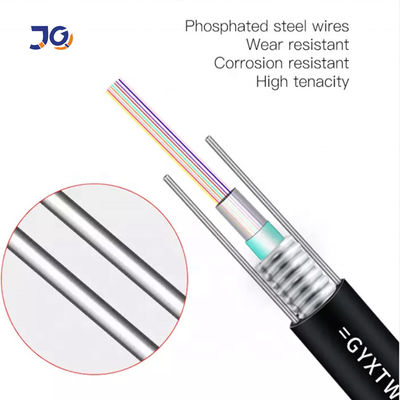

GYXTW Steel Tape Armored  Loose Tube Cable 24 Core Single Mode 0

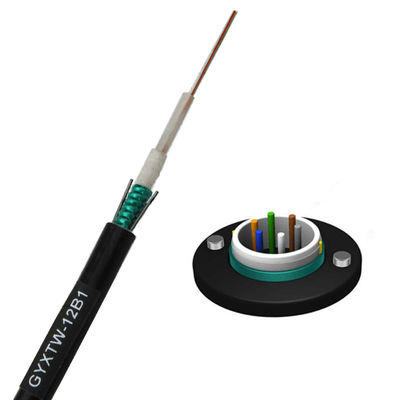

Cable Structure

GYXTW Steel Tape Armored  Loose Tube Cable 24 Core Single Mode 1
Packing

1/2/3/4km or customized length export wooden drum

GYXTW Steel Tape Armored  Loose Tube Cable 24 Core Single Mode 2

GYXTW Steel Tape Armored  Loose Tube Cable 24 Core Single Mode 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
