Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1KM | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 working days ,it depends on your order | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60000KM/month |
| Place of Origin: | Guangdong, China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYXTW |
|
Detail Information |
|||
| Fiber Count: | 2-24 Core | Lift Time: | 25 Years |
|---|---|---|---|
| Fiber Type: | G652D | Fiber Brand: | YOFC |
| Wave Length: | 1310/1550 | Length: | 1km 2km 3km 4km |
| High Light: | Single Mode Outdoor Fiber Optic Cable,8 Core GYXTW Fiber Optic Cable,Loose Tube GYXTW Fiber Optic Cable |
||
Product Description

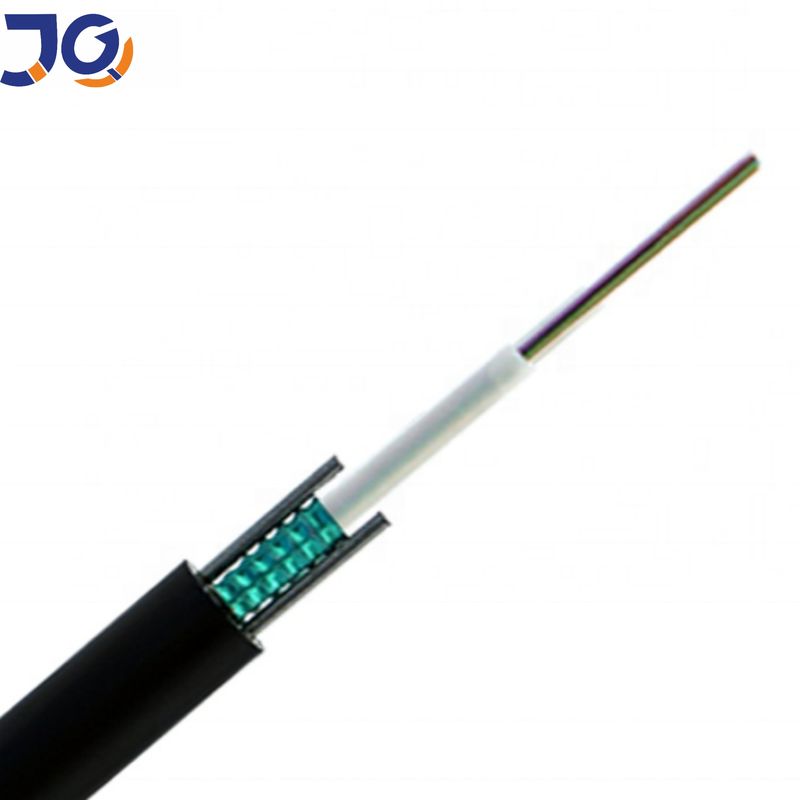

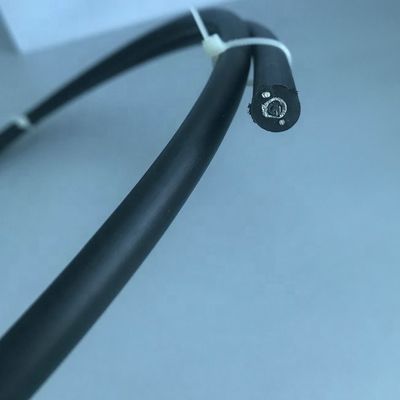

Aerial Single Mode Armored Loose Tube Cable GYXTW 4 6 8 12 Core Fiber Optic Cable

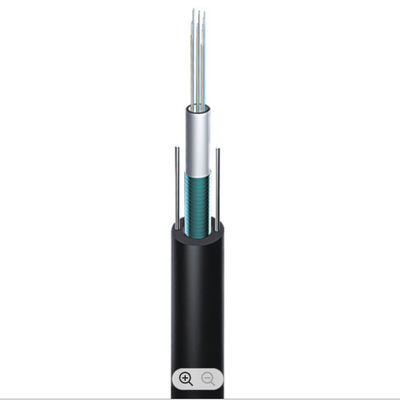

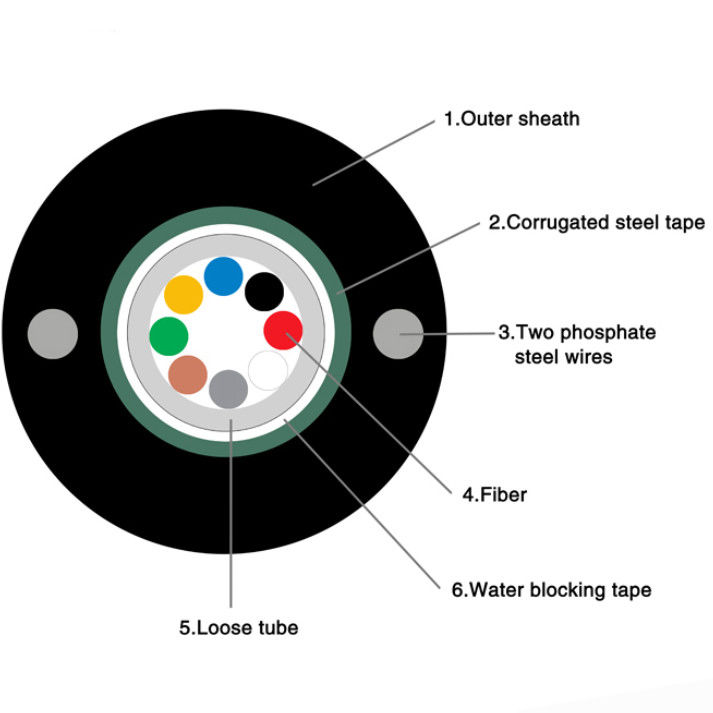

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material.
The loose tube is filled with gel filling compound.
The loose tube is covered by a PSP longitudinal.
Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.
Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 |
80±0.2 |
58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
Cable Performance
| Item | Parameters | |
| Fiber Count | 12 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | nature | |
| Filler | Material | none |
| Color | none | |
| Strength Member | Dimension | 0.7mm±0.05mm |
| Material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| Color | Black | |
Factory
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
