Home /Products/Outdoor Fiber Optic Cable/PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable

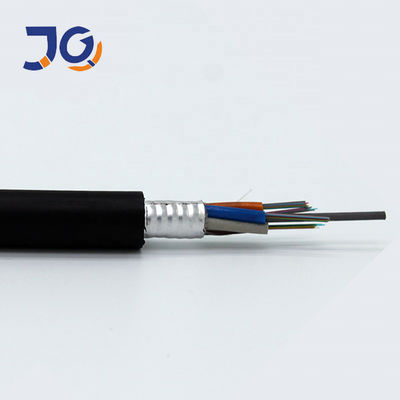

PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable

1KM
MOQ
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2-288 Core
Jacket: PE
Color: Black
Warranty: 25 Years
OEM: Yes
Wave Length: 1310/1550
Length: 1KM 2KM 3KM 4KM
Highlight:

Armored PE Jacket Fiber Cable

,

PE Jacket Armored Duct Aerial Carble

,

12 Core PE Jacket Fiber Cable
Basic Infomation
Place of Origin: Guangdong,China
Brand Name: Jiqian
Certification: CE/ISO9001
Model Number: GYTA
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 days, it depends on your quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

Duct Aerial Armored Single Mode Gyta 12 24 36 48 72 Core Fiber Optic Cable

PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 0
Data Sheet

Cable Type


Fiber Count


Tubes


Fillers


Cable Diameter mm


Cable Weight kg/km
Tensile Strength
Crush Resistance
Bending Radius
Long/Short Term
Long/Short Term
Static/ Dynamic
N
N/100mm
mm
GYTA
2~6
1
4
10.2
116
600/1500
300/1000
10D/20D

 GYTA
8~12
2
3
10.2
116
600/1500
300/1000
10D/20D
GYTA-14~18
14~18
3
2
10.2
116
600/1500
300/1000
10D/20D
GYTA-20~24
20~24
4
1
10.2
116
600/1500
300/1000
10D/20D
GYTA-26~30
26~30
5
0
10.2
116
600/1500
300/1000
10D/20D
GYTA-32~36
32~36
6
0
10.6
129
1000/3000
300/1000
10D/20D
GYTA-38~48
38~48
4
1
11.2
141
1000/3000
300/1000
10D/20D
GYTA-50~60
50~60
5
0
11.2
141
1000/3000
300/1000
10D/20D
GYTA-62~72
62~72
6
0
12
159
1000/3000
300/1000
10D/20D
GYTA-74~84
74~84
7
1
13.6
209
1000/3000
300/1000
10D/20D
GYTA-86~96
86~96
8
0
13.6
209
1000/3000
300/1000
10D/20D
GYTA-98~108
98~108
9
1
15.4
232
1000/3000
300/1000
10D/20D
GYTA-110~120
110~120
10
0
15.4
232
1000/3000
300/1000
10D/20D
GYTA-122~132
122~132
11
1
17.2
280
1000/3000
300/1000
10D/20D
GYTA-134~144
134~144
12
0
17.2
280
1000/3000
300/1000
10D/20D

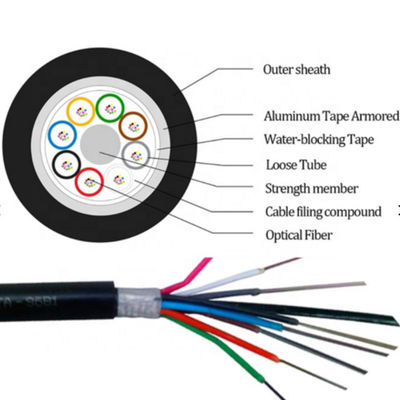

PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 1

GYTA  is designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

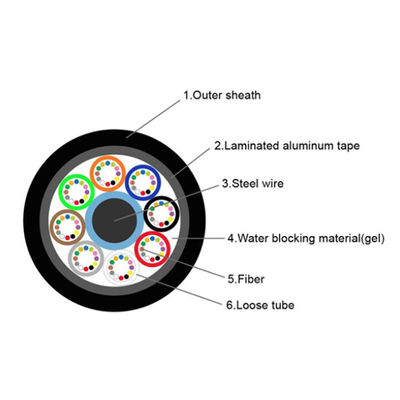

PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 2

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 3
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Company Picture
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 4
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 5
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 6
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 7
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
PE jacket Armored Duct Aerial Carble , 12 Core Fiber Optic Cable 8
