Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube
Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube
Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube
Contact Now

Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTC8Y

Detail Information
Type: Fiber Optic Cable, Gytc8s Application: Self-supporting Aerial
Jacket: PE Cores: 2-288
Laying Method: Overhead Aerial Strength Memember: Steel Wire
Fiber: G652D
High Light:

GYXTC8Y Fiber Optical Cables

,

Non Armoured Fiber Optical Cables

Product Description

Aerial Central Loose Tube Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Factory Price

Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.
Applications
Backbones and Access.
Installed aerially.

Optical Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

 850 nm     ≤3.0 dB/km ≤3.2 dB/km
1300 nm     ≤1.0 dB/km ≤1.2 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz-km ≥200 Mhz-km
1300 nm     ≥1000 MHz-km ≥600 Mhz-km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc ≤1260 nm ≤1450 nm
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility

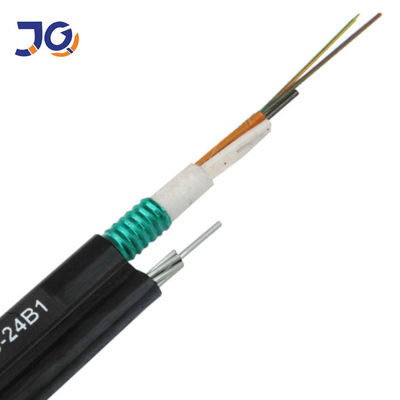

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
product description

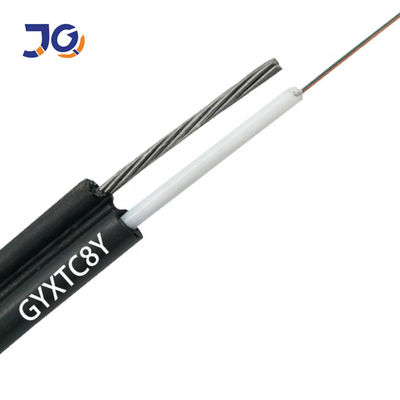

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.

Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube 0

1.Low dispersion and attenuation
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3.Compact structure and lightness, flexible and good bend-resistant performance
4.With small cable diameter, light cable weight, self-supporting
5.Operating Temperature : -40~+60°C

Cable Structure

Non Armoured Fig8 GYXTC8Y Fiber Optical Cables Aerial Central Loose Tube 1

FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

Tag:

GYXTC8S Aerial Fiber Cable

GYXTC8S figure 8 fiber cable

2.0mm Wire Outdoor Fiber Optic Cable
