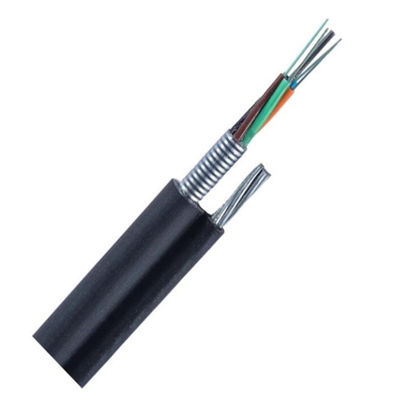

Aerial Self - Supporting Fig8 GYXTC8S Optical Fiber Cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTC8S

Detail Information

Type: Fiber Optic Cable, Gytc8s Certificate: ISO9001/CE/RoHS/CE
Material Of Jacket: Black Polyethylene(PE) Cores: 2-288
Laying Method: Overhead Aerial Fiber Mode: Single Mode & Multi Mode
Fiber Brand: YOFC Cable Structure: Figure 8 Uni-loose Tube Non- Armor
Central Strength Member: FRP
High Light:

GYXTC8S Optical Fiber Cable

,

Aerial Self - Supporting Optical Fiber Cable

,

GYXTC8Y Outdoor Fiber Optic Cable

Product Description

Aerial Self-supporting Fig8 GYXTC8S Optical Fiber Cable

Characteristic
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Compact structure and lightness, flexible and good bend resistant performance
With small cable diameter, light cable weight, self-supporting
Operating Temperature : -40~+70℃
Specification
Item
Description
Fiber
ITU G.652 fiber
Tube filling
Tube filling compound
Loose tube
Material
PBT
Diameter
1.95mm±0.1mm
Outer sheath
Material
PE
Thickness
1.6mm
Wire messager
steel wires
Tension(Long Term)
2500N
Tension(Short Term)
5000N
Crush(Long Term)
300N/10cm
Crush(Short Term)
1000N/10cm
Min. Bend Radius(Dynamic)
20D/ mm
Min.Bend Radius(Static)
10D/mm
Outer jacket
PE
Tube color
blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Product Description

The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape or steel tape is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.With self-supporting messenger wire.

Aerial Self - Supporting Fig8 GYXTC8S Optical Fiber Cable 0

Cable Structure

Aerial Self - Supporting Fig8 GYXTC8S Optical Fiber Cable 1

Applications
Backbones and Access.
Installed aerially.

Aerial Self - Supporting Fig8 GYXTC8S Optical Fiber Cable 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
