2 4 6 8 16 24 Aerial Armoured Outdoor Fiber Optic Cable Gyxtw 1km g652d Single Mode 12 Core

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYXTW

Detail Information

Application: Outdoor Aerial And Duct Armoured: Steel Tape
Jacket: PE Loose Tube Color: At Your Request
Operating Temperature: -40°C~+70°C Place Of Origin: Guangdong, China
Fiber Material: YOFC Fiber Type: Single Mode
Key Word: GYXTW Bend Radius: Static 10x Cable D; Dynamic 20x Cable Diameter
High Light:

Armoured Outdoor Fiber Optic Cable

,

g652d Outdoor Fiber Optic Cable

,

Outdoor Fiber Optic Cable 12 Core

Product Description

2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw 1km Price g652d Single Mode 12 Core Fiber Optic Cable

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Optical Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

850 nm     ≤3.0 dB/km ≤3.2 dB/km
1300 nm     ≤1.0 dB/km ≤1.2 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz-km ≥200 Mhz-km
1300 nm     ≥1000 MHz-km ≥600 Mhz-km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc ≤1260 nm ≤1450 nm

Cable bending radius: 10 x cable diameter (static)

20 x cable diameter (dynamic)

Application temperature range

Operating temperature range -40℃ to +60℃
Storage / Transport temperature range -40℃ to +60℃
Installation temperature range -20℃ to +60℃

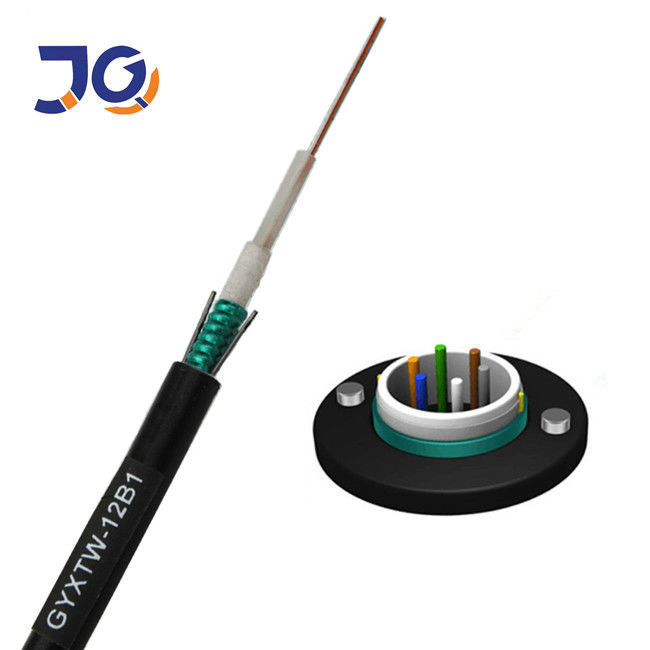

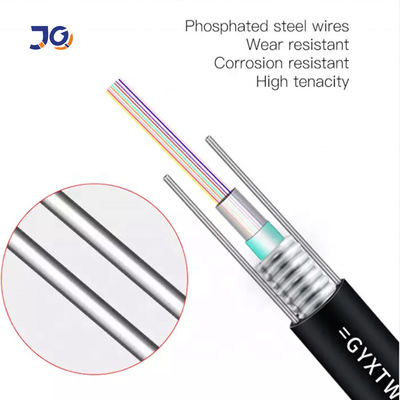

GYXTW copper armored cable is an outdoor communication optical cable of metal strength member of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel steel wire strength members, and sheath.

2 4 6 8 16 24 Aerial Armoured Outdoor Fiber Optic Cable Gyxtw 1km g652d Single Mode 12 Core 0

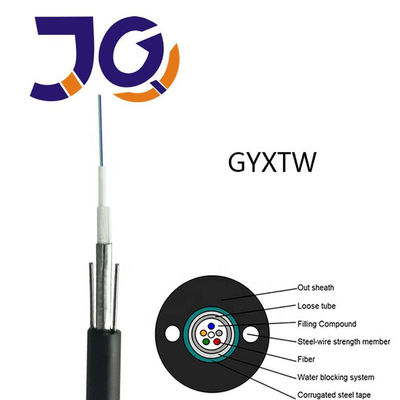

Cable Structure

2 4 6 8 16 24 Aerial Armoured Outdoor Fiber Optic Cable Gyxtw 1km g652d Single Mode 12 Core 1
Packing

Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.

Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than

6000m with a tolerance.

Covered by plastic buffer sheet.

Sealed by strong wooden battens.

At least 1m of cable inner end should be reserved for testing.

2 4 6 8 16 24 Aerial Armoured Outdoor Fiber Optic Cable Gyxtw 1km g652d Single Mode 12 Core 2

2 4 6 8 16 24 Aerial Armoured Outdoor Fiber Optic Cable Gyxtw 1km g652d Single Mode 12 Core 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
