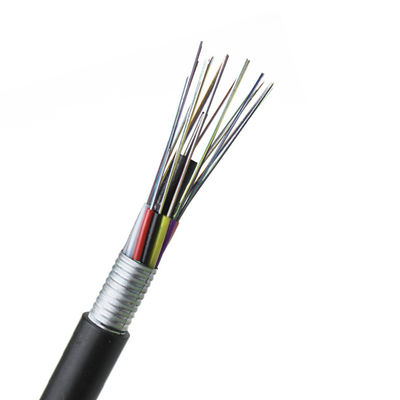

288 Cores Outdoor Fiber Optic Cable Underground G652D Single Mode Armoured GYTS

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 3-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTA

Detail Information

Place Of Origin:: Guangzhou,China Fiber Count: 2-288cores
Material Of Jacket: PE Application: Aerial And Duct
Fiber Brand: YOFC Structure: Loose Tube Stranded
Strength Member: Steel Cable Type: GYTA
High Light:

288 Cores Outdoor Fiber Optic Cable

,

Outdoor Fiber Optic Cable Single Mode

,

GYTS Outdoor Fiber Optic Cable

Product Description

outdoor G652D single mode armoured optical fiber cable gyta gyts Fibre optic cable GYTA

Product Description

FIber count
2-288
Waterproof layer
Cable core filled with cable gel or water blocking tape, water blocking yarns.
Loose tube
colored fiber in loose tube, jelly-filled
Sheath
Polyethylene (PE)
Central strength member
Steel wire or FRP
Operation temp
-40°~+70°



Features:

Up to 288 fibers.

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tape armor to protect cable from mechanical damage.

UV and waterproof design.

Application:

Backbones and Access.

Installed in ducts, Aerial

Optical Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

850 nm     ≤3.0 dB/km ≤3.2 dB/km
1300 nm     ≤1.0 dB/km ≤1.2 dB/km
1310 nm ≤0.36 dB/km ≤0.40 dB/km
1550 nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth 850 nm     ≥500 MHz-km ≥200 Mhz-km
1300 nm     ≥1000 MHz-km ≥600 Mhz-km
Numerical Aperture     0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc ≤1260 nm ≤1450 nm

Dimensions of Cable Constructions





Fiber count







Structure



Fibers per tube



Loose tube diameter (mm)



CSM

diameter/pad diameter (mm)

Nominal Thickness of outer jacket

(mm)



Cable diameter/ Height (mm)



Cable weight (kg/km)

4 1+5 4 1.8±0.1 1.4/1.4 1.4 8.5±0.3 75
6 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
8 1+5 8 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
12 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
24 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
36 1+6 12 1.95±0.1 1.5/1.5 1.6 8.8±0.3 85
48 1+5 12 1.95±0.1 1.5/1.5 1.6 9.3±0.3 90
60 1+5 12 1.95±0.1 1.6/1.6 1.6 9.3±0.3 90
72 1+6 12 1.95±0.1 2.0/2.0 1.6 9.6±0.3 95
96 1+8 12 1.95±0.1 1.4/3.2 1.6 11.5±0.3 120
144 1+12 12 1.95±0.1 2.0/5.7 1.8 14.2±0.3 185
216 1+6+12 12 1.95±0.1 2.0/2.0 1.8 14.5±0.3 200
288 1+9+15 12 1.95±0.1 2.0/3.7 1.8 16.2±0.3 240



Cable Structure

GYTS Moisture Resistant Steel Tape Armoured 12 24 748 72 Core Outdoor Optic Fiber  Cable Price



 Packing

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

288 Cores Outdoor Fiber Optic Cable Underground G652D Single Mode Armoured  GYTS 1

288 Cores Outdoor Fiber Optic Cable Underground G652D Single Mode Armoured  GYTS 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
