GYTA53 Indoor Fiber Optic Cable Self - Supporting Overhead 12 / 24 / 48 Core

Minimum Order Quantity :	1kilometer	Packaging Details :	Wooden Drum
Delivery Time :	3-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong,China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYTA53

Detail Information
Place Of Origin::	Guangzhou,China	Fiber Count:	2-288cores
Material Of Jacket:	PE	Application:	Direct Burial
Fiber Brand:	YOFC	Structure:	Loose Tube Stranded
Strength Member:	Steel	Product Type:	Fiber Optic Cable
Cable Color:	Black	Fiber Mode:	Single Mode
Highlight:	GYTA53 Indoor Fiber Optic Cable , 48 Core Indoor Fiber Optic Cable

Product Description

Dimensions of Cable Construction




Fiber count




Structure


Fibers per tube


Loose tube diameter (mm)


CSM
diameter/pad diameter (mm)

			Nominal Thickness of outer jacket
(mm)


Cable diameter/ Height (mm)


Cable weight (kg/km)



			4
			1+5
			4
			1.8±0.1
			1.4/1.4
			1.6
			11.5±0.2
			140


			6
			1+5
			6
			1.85±0.1
			1.4/1.4
			1.6
			11.5±0.2
			140


			8
			1+5
			8
			1.9±0.1
			1.4/1.4
			1.6
			11.5±0.2
			140


			12
			1+5
			6
			1.85±0.1
			1.4/1.4
			1.6
			11.5±0.2
			140


			24
			1+5
			6
			1.85±0.1
			1.4/1.4
			1.6
			11.5±0.2
			140


			36
			1+5
			12
			1.9±0.1
			1.6/1.6
			1.6
			11.5±0.2
			140


			48
			1+5
			12
			1.95±0.1
			1.6/1.6
			1.6
			12.2±0.2
			145


			60
			1+5
			12
			1.95±0.1
			1.6/1.6
			1.6
			12.2±0.2
			150


			72
			1+6
			12
			1.95±0.1
			2.0/2.0
			1.6
			12.2±0.2
			160


			96
			1+8
			12
			1.95±0.1
			1.4/3.2
			1.6
			13.8±0.2
			180


			144
			1+12
			12
			1.95±0.1
			2.0/5.7
			1.6
			16.7±0.3
			245


Applications
Directburied, Duct Underground conduits.
Payment
We usually use T/T
T/T deposit before production and balance when shipment.

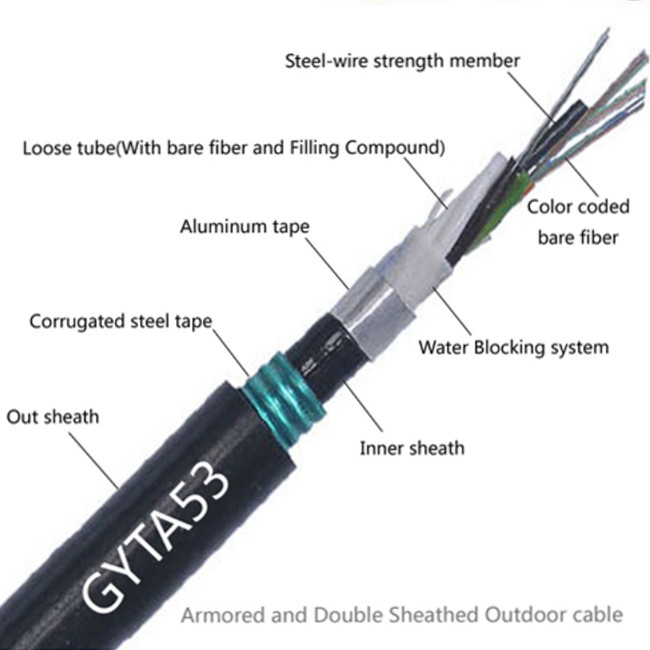

Cable Structure
Packing
wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
