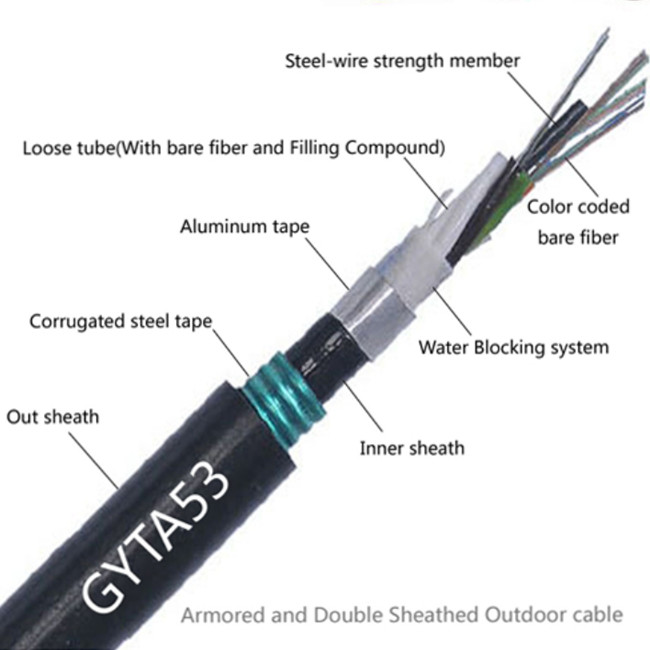

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53

Contact Now

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53

Minimum Order Quantity :	1kilometer	Packaging Details :	Wooden Drum
Delivery Time :	3-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong,China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYTA53

Detail Information
Place Of Origin::	Guangzhou,China	Fiber Count:	2-288cores
Material Of Jacket:	PE	Application:	Direct Burial
Fiber Brand:	YOFC	Structure:	Loose Tube Stranded
Strength Member:	Steel	Product Type:	Fiber Optic Cable
Cable Color:	Black	Fiber Mode:	Single Mode
Highlight:	ISO9001 Outdoor Fiber Optic Cable , Double Jacket Outdoor Fiber Optic Cable , GYTY53 Outdoor Fiber Optic Cable

Product Description

Factory price outdoor underground singlemode armored double jacket 24 48 core fiber optic cable GYTA53

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140
6	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	140
8	1+5	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
12	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	140
24	1+5	6	1.85±0.1	1.4/1.4	1.6	11.5±0.2	140
36	1+5	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	140
48	1+5	12	1.95±0.1	1.6/1.6	1.6	12.2±0.2	145
60	1+5	12	1.95±0.1	1.6/1.6	1.6	12.2±0.2	150
72	1+6	12	1.95±0.1	2.0/2.0	1.6	12.2±0.2	160
96	1+8	12	1.95±0.1	1.4/3.2	1.6	13.8±0.2	180
144	1+12	12	1.95±0.1	2.0/5.7	1.6	16.7±0.3	245

Drum

Cable type	Drum
Cable type	Height (mm)	Width (mm)	Inner diameter (mm)	Length (km)	Drum type
GYTA53-(4-30)	1000	720	400	2	wood drum
GYTA53-(36-60)	1000	720	400	2	wood drum
GYTA53-72	1100	720	450	2	wood drum
GYTA53-96	1200	720	550	2	wood drum
GYTA53-144	1400	800	700	2	wood drum

Note:Special cable structure can be designed and manufactured on customer’s request.

Features

Loose tube gel-filled construction for superiorfiber protection.

Double jacket single armored(GYTA53) and Double jacket double armored(GYTA53) for rodent pr.otection and direct burial.

UV and moisture-resistant design

Applications

Directburied, Duct Underground conduits.

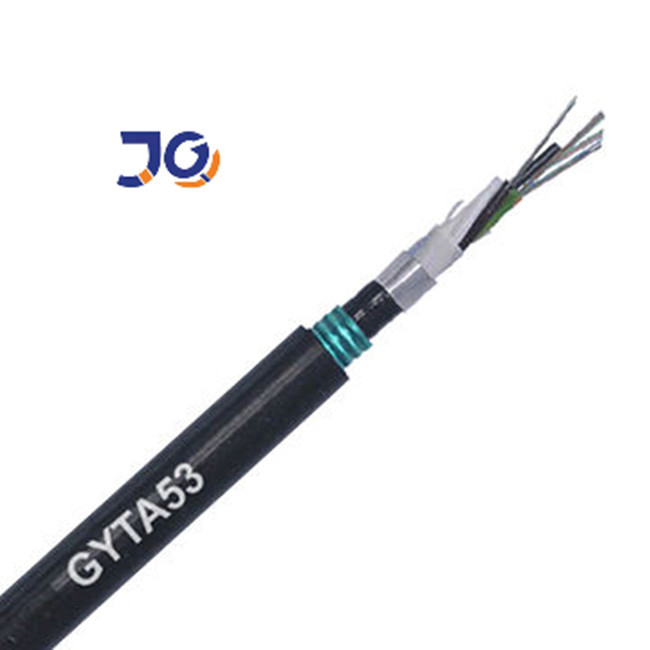

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53 0

Packing
wooden drum or fumugated wooden drum,normal wooden drum

Drum size can be designed,details will calculation for suitable for containers

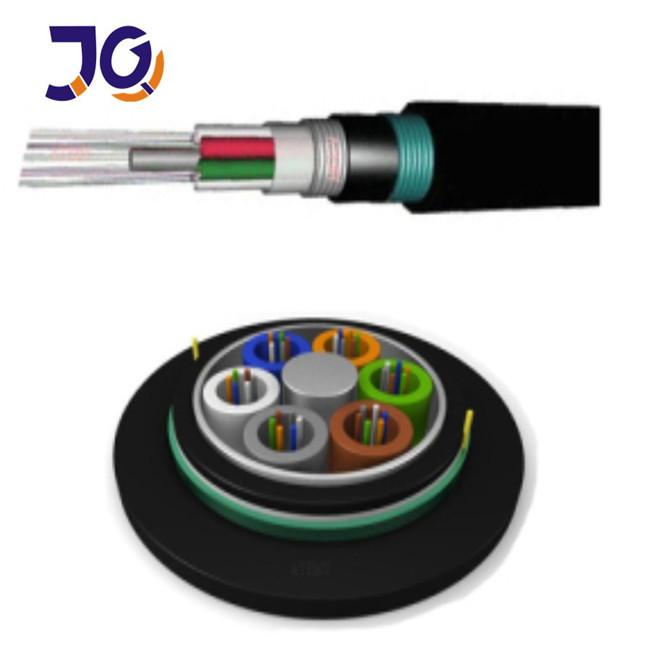

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53 1

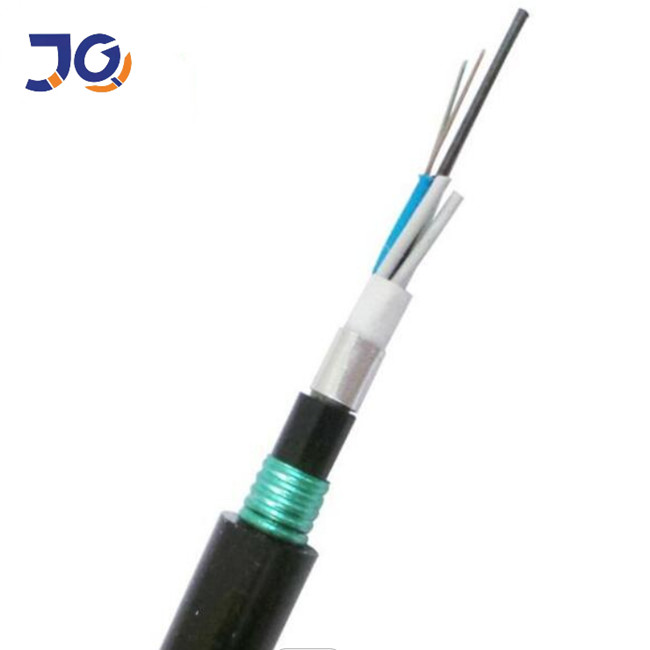

ISO9001 Outdoor Fiber Optic Cable Singlemode Armored Double Jacket GYTA53 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
