OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 3-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | GYTA53 |
|
Detail Information |
|||
| Place Of Origin:: | Guangzhou,China | Keyword: | GYTA53 |
|---|---|---|---|
| Product Name: | Armoured Fiber Optical Cable | Application: | Directburied, Duct Underground Conduits |
| Fiber Brand: | YOFC | Structure: | Loose Tube Stranded |
| Strength Member: | Steel | Product Type: | Fiber Optic Cable |
| Temperature: | -40℃ -- +60℃ | Fiber Mode: | Single Mode |
| High Light: | 144 Cores Armoured Optical Fiber Cable,GYTS53 Armoured Optical Fiber Cable,GYXTW Outdoor Fiber Optic Cable |
||
Product Description

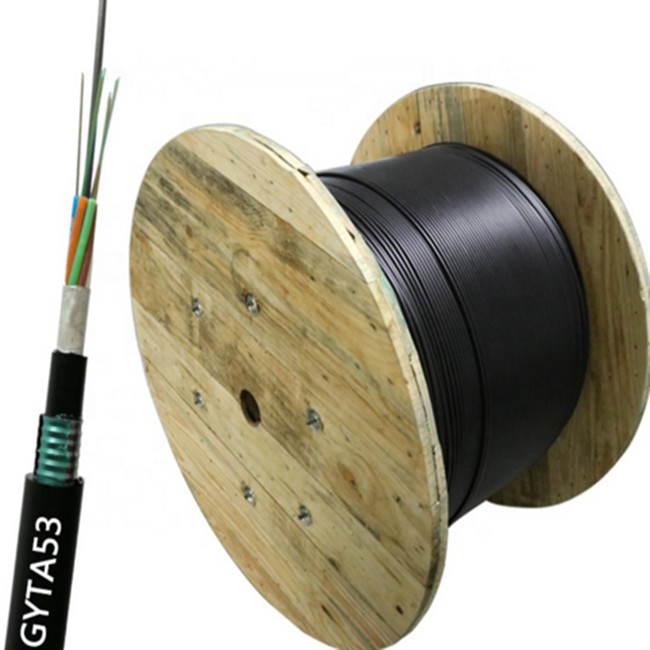

Fibra optica 2 4 6 8 24 32 48 84 96 144 288 cores Armoured Optical Fiber Cable GYTA53 Fiber Cable
Product Description

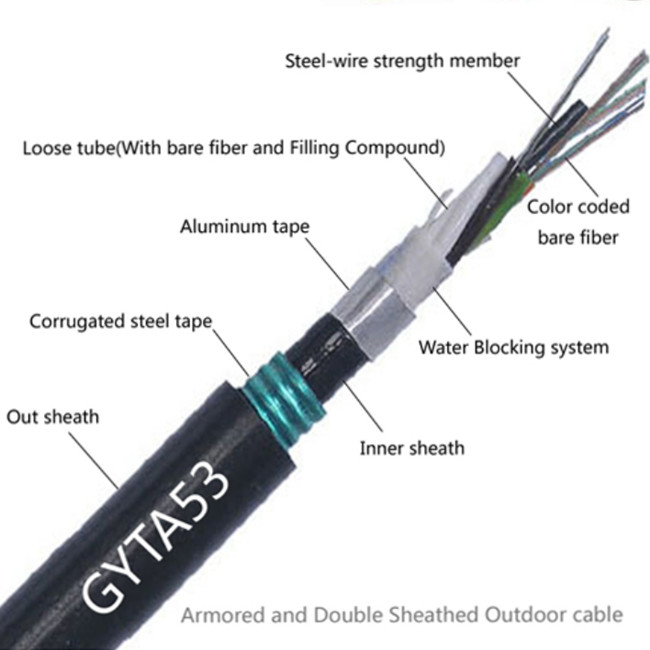

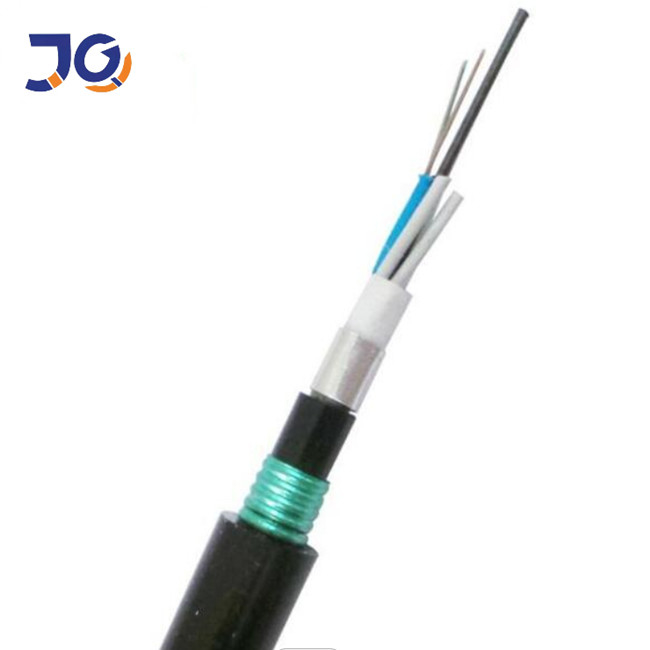

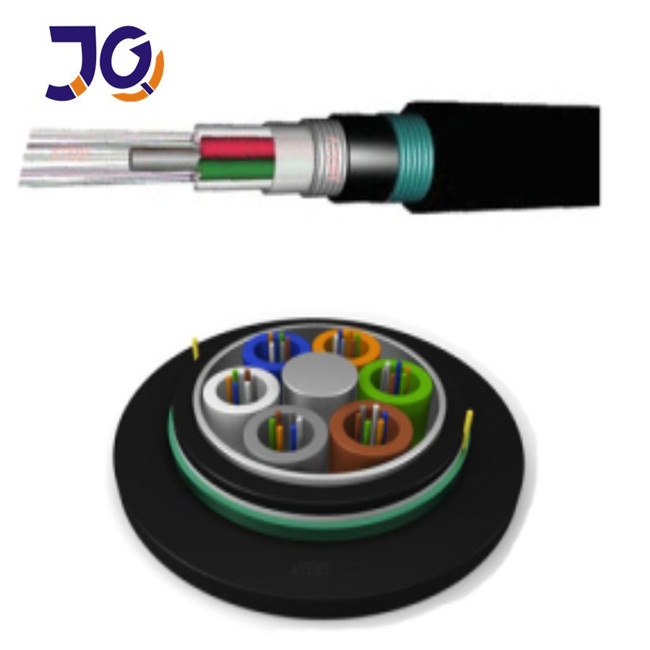

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Feature
High strength loose tube that is hydrolysis resistant
special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 36 | 1+5 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 11.5±0.2 | 140 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 145 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 150 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 12.2±0.2 | 160 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 13.8±0.2 | 180 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.6 | 16.7±0.3 | 245 |
Optical Characteristics:
| Fiber type | G.652D(9/125) |
| Loose tube | PBT Loose Tube |
| Attenuation@1310nm | ≤ 0.36 dB/km |
| Attenuation@1550nm | ≤ 0.22 dB/km |
| Temperature range | Transport/Operating -40~+60°C |
Standards:
GYTA53 cable complies with standard YD/T901-2001 as well as IEC60794-1
Storage/Operating Temperature: -40℃ to + 60℃
Applications
Directburied, Duct Underground conduits.
Packing

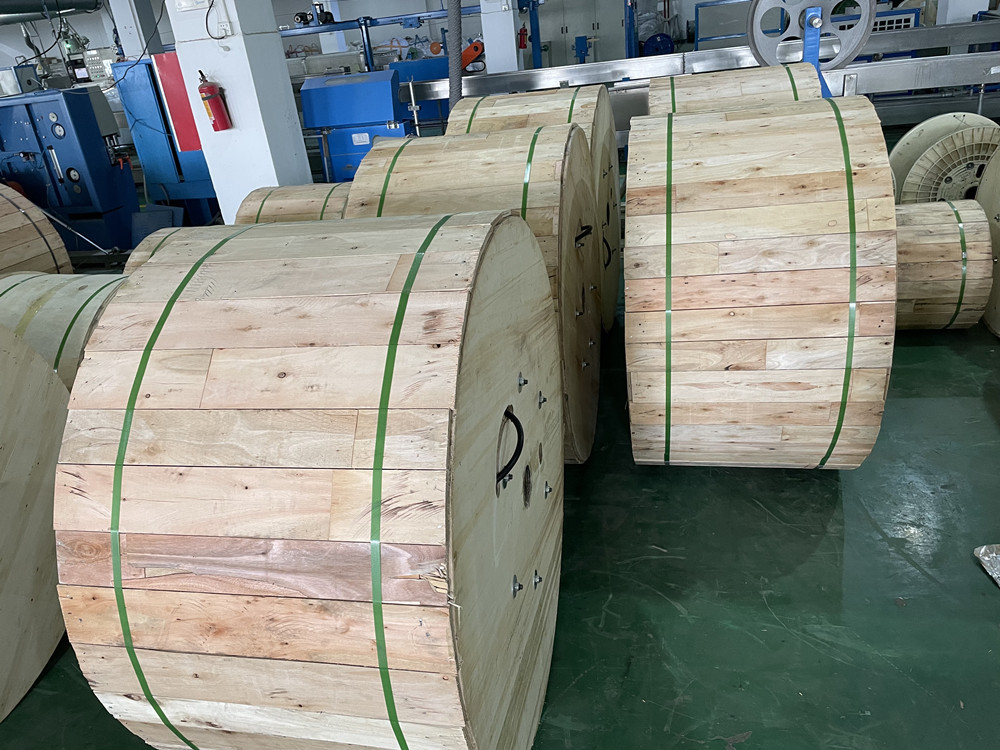

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
