Single Mode Underground Outdoor Fiber Optic Cable 12 24 48 Core GYXTW53

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Brand Name: Jiqian/OEM Certification: CE/ISO9001
Model Number: GYXTW53

Detail Information

Place Of Origin: Guangdong, China Out Color: Black
Armoured: Steel Tape Jacket: PE Jacket
Strength Member: Two Parallel Steel Wire Operating Temperature: -40°C~+70°C
Fiber Type: Single Mode/Multi Mode Application: Networking
Keyword: Fiber Optic Cable Gyxtw53
High Light:

GYXTW Outdoor Fiber Optic Cable

,

48 Core Outdoor Fiber Optic Cable

,

Fiber Optic Cable GYXTW53

Product Description

Single Mode Underground Outdoor 12 24 48 Core Fiber Optic Cable GYXTW53

Description:

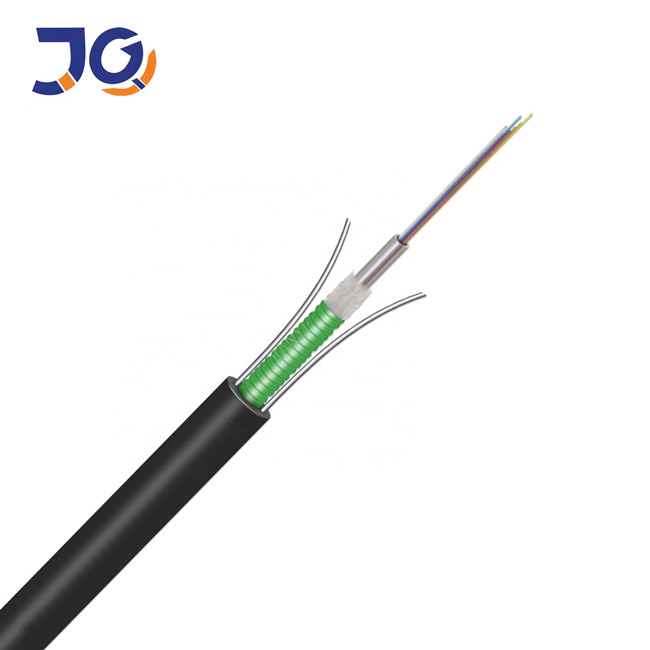

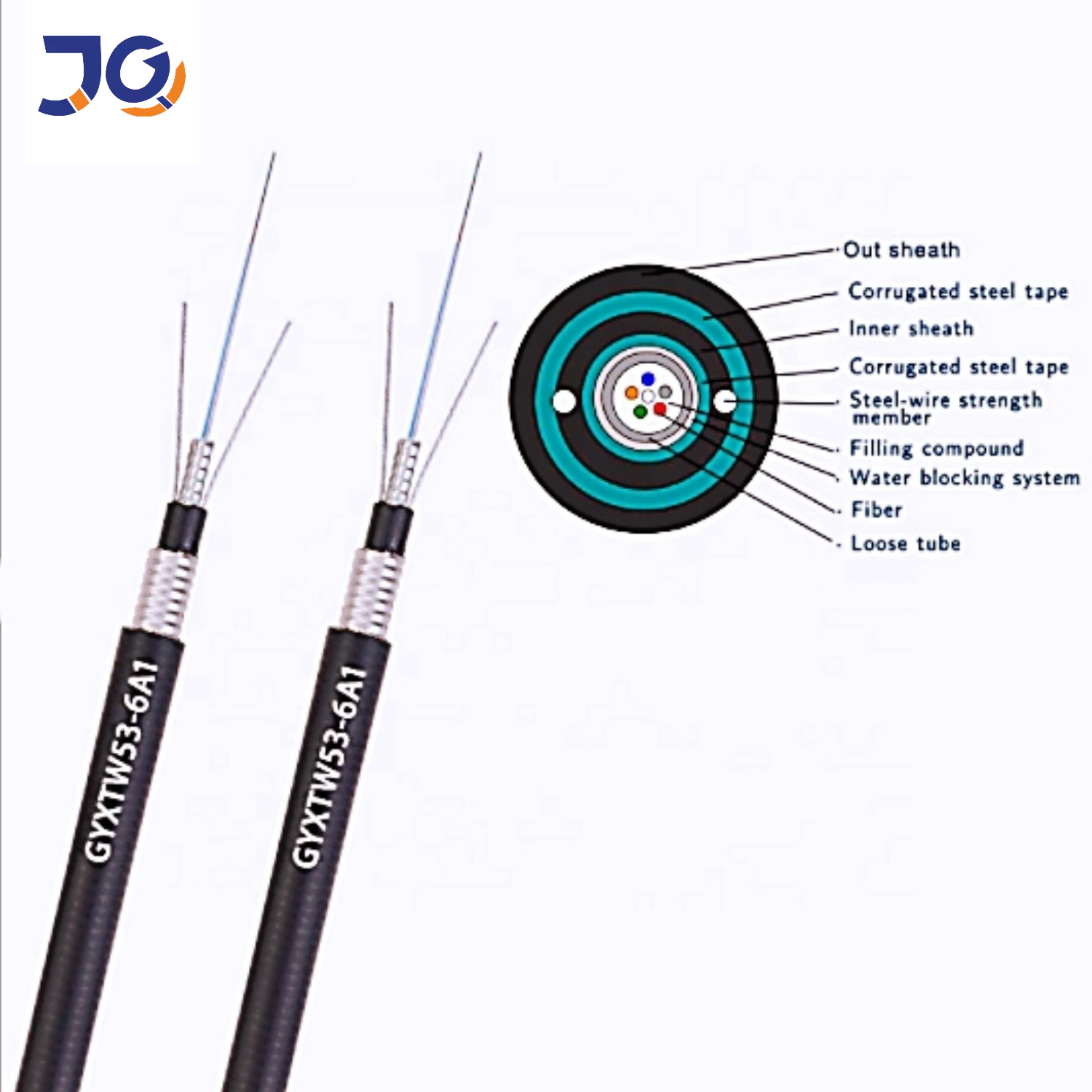

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Application:

Outdoor direct buried application;
Long haul communication system;
Subscriber and local area network;

Voice,data,video and image system.

Mechnical Parameters:

Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tension Strength (N) (Long/Short Term)
Crush Load (N/100mm) (Long/Short Term)
Bending Radius (Static/Dynamic)
2 12.0 120 1500/3000 600/2200 10D/20D
4 12.0 120 1500/3000 600/2200 10D/20D
6 12.0 120 1500/3000 600/2200 10D/20D
8 12.0 120 1500/3000 600/2200 10D/20D
10 12.0 120 1500/3000 600/2200 10D/20D
12 12.0 120 1500/3000 600/2200 10D/20D
24 12.0 120 1500/3000 600/2200 10D/20D

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100


outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw53

Single Mode Underground Outdoor Fiber Optic Cable 12 24 48 Core GYXTW53 0

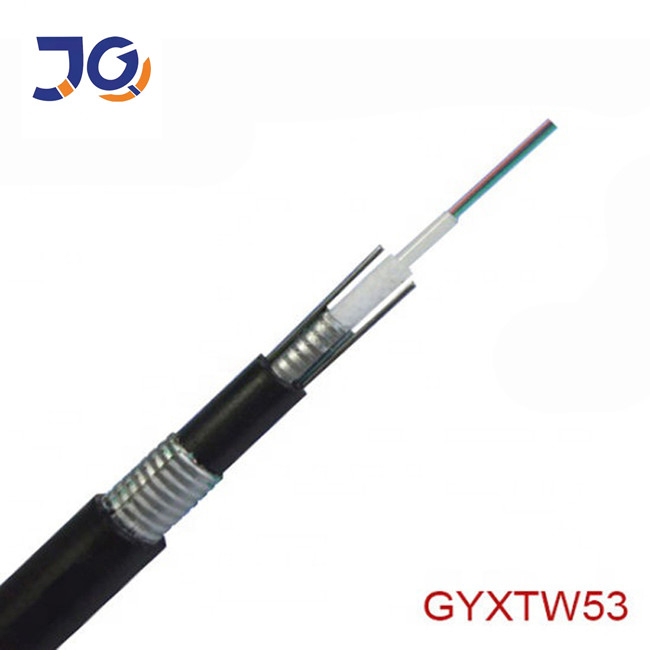

Unit tube 8 core fiber optic cable price per meter Double Jacket Armoured Optical Cable GYXTW53
Single Mode Underground Outdoor Fiber Optic Cable 12 24 48 Core GYXTW53 2

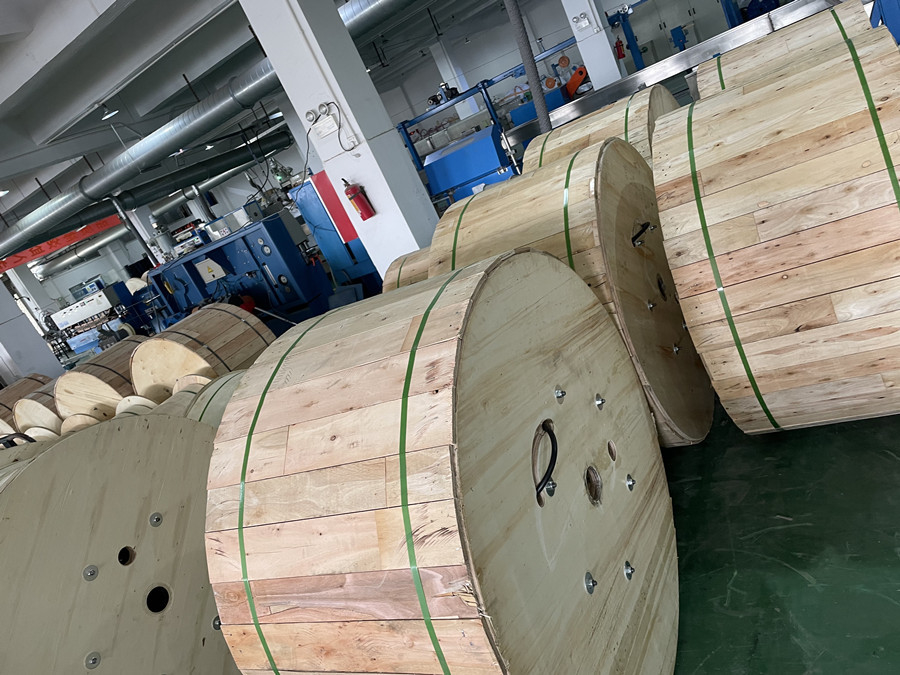

Packing

1/2/3/4km or customized length export wooden drum

Single Mode Underground Outdoor Fiber Optic Cable 12 24 48 Core GYXTW53 3

Single Mode Underground Outdoor Fiber Optic Cable 12 24 48 Core GYXTW53 4

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
