G652D 2 4 6 12 24 Core Outdoor GYXTW53 Fiber Optic Cable For Networking

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: GYXTW53

Detail Information

Out Color: Black Armoured: Steel Tape
Jacket: PE Strength Member: Steel Wire FRP KFRP
Operating Temperature: -30°C~+70°C Place Of Origin: Guangdong, China
Fiber Type: G652D/G657A1/G657A2/G657B3 Fiber Type: Single Mode
Application: Networking
High Light:

Outdoor Fiber Optic Cable 12 Core

,

G657B3 Outdoor Fiber Optic Cable

,

Networking Fiber Optic Cable

Product Description

Factory price outdoor Direct Buried 2 4 6 12 24 Core Fiber Optic Cable GYXTW53

Description:

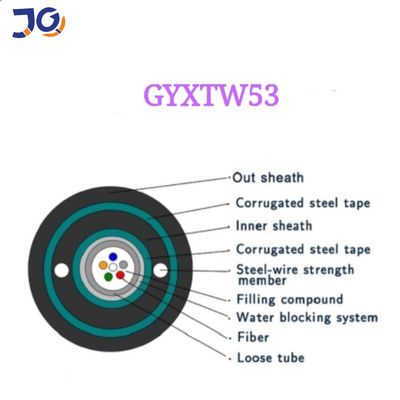

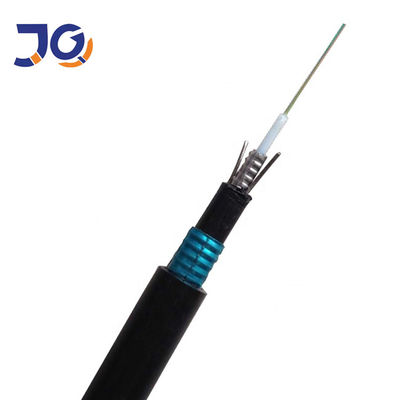

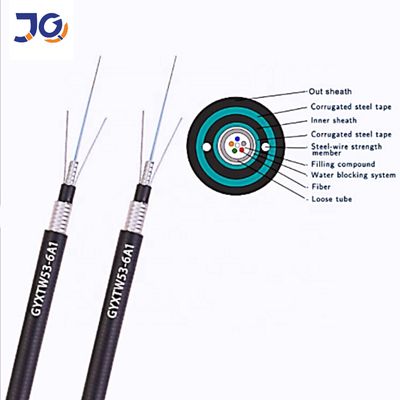

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

steel tape and the loose tube water-blocking material is applied to keep the cable compact

and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

The cable is completed with PE sheath.

Application:

Outdoor direct buried application;
Long haul communication system;
Subscriber and local area network;

Voice,data,video and image system.

Product features

precision control of fiber length ensures excellent mechanical and temperature properties
the loose casing material itself has good hydrolysis resistance and high strength
the tube is filled with special ointment for critical protection of the optical fiber
good lateral compression resistance and softness
two parallel wires ensure the tensile strength of the cable
double PSP improves the moisture resistance of optical cable
good water resistance material to prevent longitudinal water seepage of optical cable
polyethylene (PE) sheath has excellent uv radiation resistance
small diameter, light weight, easy to lay
steel tape armour gives the cable excellent rodent protection

Mechnical Parameters:

Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tension Strength (N) (Long/Short Term)
Crush Load (N/100mm) (Long/Short Term)
Bending Radius (Static/Dynamic)
2 12.0 120 1500/3000 600/2200 10D/20D
4 12.0 120 1500/3000 600/2200 10D/20D
6 12.0 120 1500/3000 600/2200 10D/20D
8 12.0 120 1500/3000 600/2200 10D/20D
10 12.0 120 1500/3000 600/2200 10D/20D
12 12.0 120 1500/3000 600/2200 10D/20D
24 12.0 120 1500/3000 600/2200 10D/20D

Environmental Conditions:

Storage/Operating Temperature : -40℃ to + 70℃

Installation Temperature : -40℃ to + 70℃

Packing

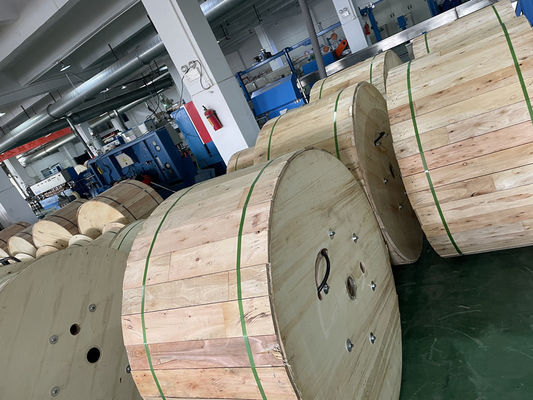

1/2/3/4km or customized length export wooden drum

outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw

G652D 2 4 6 12 24 Core Outdoor GYXTW53 Fiber Optic Cable For Networking 0

Unit tube 8 core fiber optic cable price per meter Double Jacket Armoured Optical Cable GYXTW53

G652D 2 4 6 12 24 Core Outdoor GYXTW53 Fiber Optic Cable For Networking 2

G652D 2 4 6 12 24 Core Outdoor GYXTW53 Fiber Optic Cable For Networking 3



FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
