Low Voltage G652D Oplc Composite Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-4days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 80000 kilometers per month |
| Place of Origin: | China | Brand Name: | Jiqian/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001/fcc/ROHS | Model Number: | GYXTW53 |
|
Detail Information |
|||
| Out Color: | Black | Armoured: | Steel Tape |
|---|---|---|---|
| Jacket: | PE | Strength Member: | Steel Wire |
| Operating Temperature: | -30°C~+70°C | Place Of Origin: | Guangdong, China |
| Fiber Type: | G652D/G657A1/G657A2/G657B3 | Fiber Type: | Single Mode |
| Application: | Networking | FIBER: | YOFC |
| Highlight: | Steel Tape Direct Burial Fiber Cable,GYXTW53 Direct Burial Fiber Cable,Outdoor Fiber Optic Cable 12 Core |
||
Product Description
Underground 4 6 8 10 12 Core Communication Double Steel Tape Direct Burial Fiber Cable GYXTW53
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Mechnical Parameters:
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tension Strength (N) (Long/Short Term) |
Crush Load (N/100mm) (Long/Short Term)
|
Bending Radius (Static/Dynamic) |
| 2 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 4 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 6 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 8 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 10 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 12 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
| 24 | 12.0 | 120 | 1500/3000 | 600/2200 | 10D/20D |
Environmental Conditions:
Storage/Operating Temperature : -40℃ to + 70℃
Installation Temperature : -30℃ to + 60℃
Description:

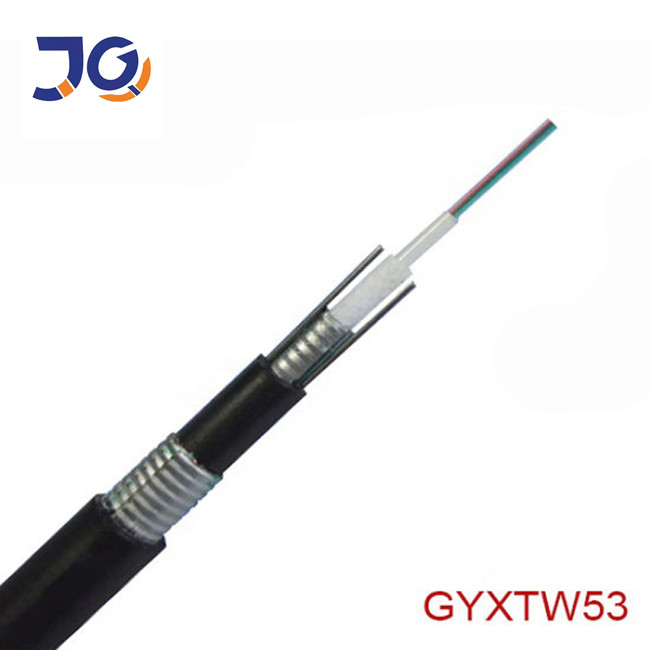

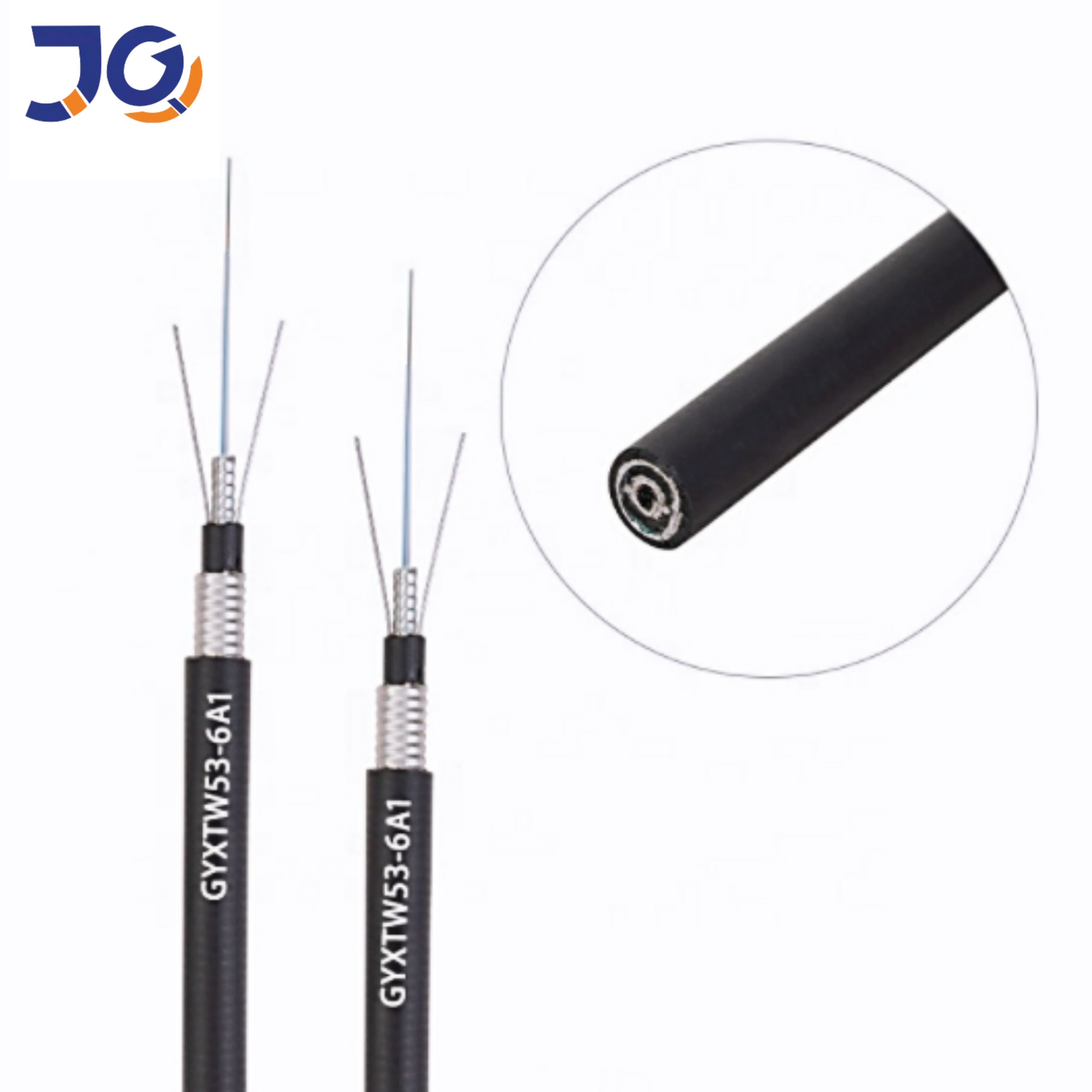

The structure of GYXTW53 cable is to insert 250 m optical fiber into the loose sleeve made of high-modulus material, and fill the loose sleeve with waterproof compound.A layer of double-sided coated plastic steel belt (PSP) longitudinal package is used outside the loose bushing, and water-blocking material is added between the steel belt and loose bushing to ensure the compact and longitudinal water-blocking of optical cable. Two parallel steel wires are placed on both sides and extruded to make polyethylene inner sheath.
Packing:

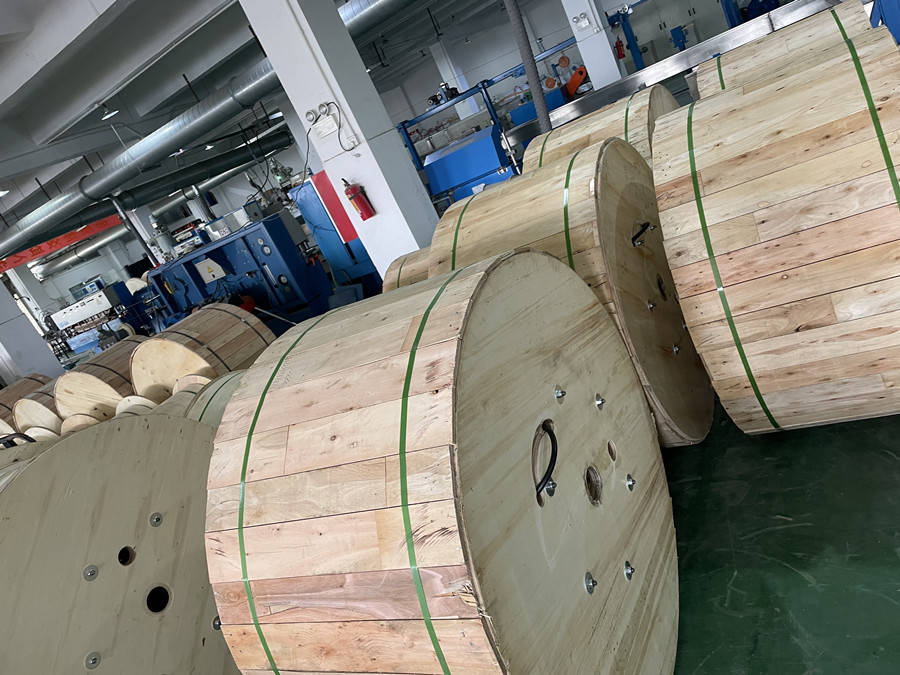

1/2/3/4km or customized length export wooden drum
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
