OEM Outdoor Fiber Optic Cable PVC Sheath Blue Direct Buried Mining 8 Core MGTSV

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian/OEM
Certification: CE/ISO9001 Model Number: mgtsv

Detail Information

Out Color: Blue\Customized Armoured: Steel Tape
Jacket: PVC\LSZH \LSOH \PE \HDPE Strength Member: Steel Wire
Temperature Range: -20°~60°C Place Of Origin: Guangdong, China
Fiber Type: G652D Fiber Type: Single Mode
Application: Telecommunication Keywords: Outdoor Cable
High Light:

OEM Outdoor Fiber Optic Cable

,

PVC Sheath Outdoor Fiber Optic Cable

,

Direct Buried Outdoor Fiber Optic Cable

Product Description

Outdoor PVC sheath Blue Single Mode Direct Buried Mining Fiber Optic Cable 8 Core MGTSV for mining use price meter

Description:

The structure of MGTSV cable is 250um fibers,are positioned in a loose tube made of a high modulus plastic.Loose tube are filled with denatured water-resistand compound .A Steel wire,sometimes sheathed with Polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.Loose tubes(and fillers)are stranded around the strength member into a compact and circular cable core.The cable is waterblocking dry structure .
The cable includes two sheaths,inner jacket is armored corrugated steel with the Flame retardant polyolefin,outer jacket is Blue Polyvinylchloride.

Features:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Special designed compact fiber structure,effectively avoid the tube shrinked.
The cable structure is excellent in environmental protection and fire resistant
The following measures are taken to ensure the cable watertight:
1.Single steel wire used as the central strength member
2..Loose tube filling compound
3.Fiber cores are absolutely waterblocking dry structure

Standards
MGTSV Cable complies with Standard of MT/T 386-2011,as well as YD/T 901-2009.

Cable
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight Kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100m
Bending Radius Static/Dynamic mm
MGTSV-2~6
2~60
5
12.2
156
1000/2000
500/1500
10D/20D
MGTSV-62~72
62~72
6
13.8
210
1750/3500
500/1500
10D/20D
MGTSV-74~96
74~96
8
15.1
242

1750/3500
500/1500
10D/20D
MGTSV-98~120
98~120
10
17.2
280

1750/3500
500/1500
10D/20D
MGTSV-122~144
122~144
12
19
320

1750/3500
500/1500
10D/20D
MGTSV-146~216
146~216
18
19
320

1750/3500
500/1500
10D/20D

OEM Outdoor Fiber Optic Cable PVC Sheath Blue Direct Buried Mining 8 Core MGTSV 0

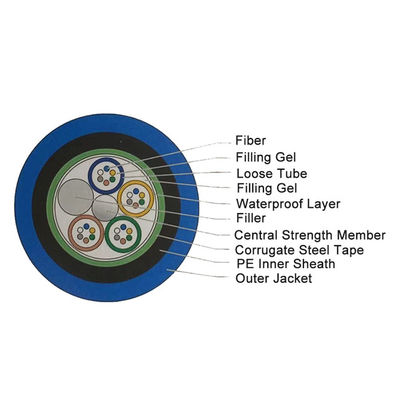

Structure

OEM Outdoor Fiber Optic Cable PVC Sheath Blue Direct Buried Mining 8 Core MGTSV 1



Packing

1/2/3/4km or customized length export wooden drum

OEM Outdoor Fiber Optic Cable PVC Sheath Blue Direct Buried Mining 8 Core MGTSV 2

Application

Duct/Aerial/Direct Buried



OEM Outdoor Fiber Optic Cable PVC Sheath Blue Direct Buried Mining 8 Core MGTSV 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
