OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | Normally 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 6000km per month |
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS 48B1 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | ≥ 10 | Strength Member: | FRP |
| Storage/operating Temperature:: | -40 To +70 °C | Application: | Overhead |
| OEM: | Yes | Manufacturer: | Yes |
| Structure: | Stranded Loose Tube | Package: | Plywood Drum |
| High Light: | Outdoor Single Mode Fiber Optic Cable,Overhead Single Mode Fiber Optic Cable |
||
Product Description

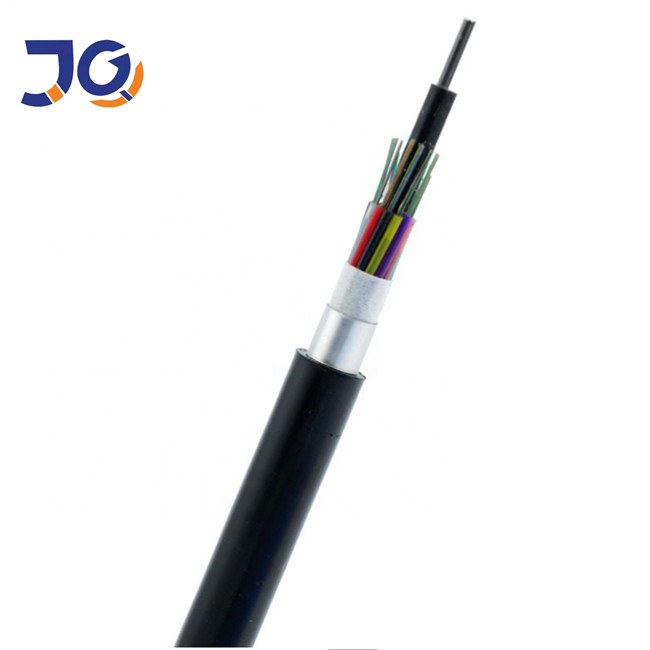

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For Telecommunication
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
Cable Performance
|
Item |
Contents |
Value | |||
| 6/12/24 | 48 | 72 | 96 | ||
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
|
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
|
Central strength member |
Material | FRP | |||
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 | |
| PE layer diameter (mm) | -- | -- | 3.5 | ||
| Peripheral strength member | Material | FRP | |||
|
Sheath |
Material | HDPE | |||
| Color | Black | ||||
| Thickness (mm) | Nominal: 1.6 | ||||
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 | |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 | |
Fiber parameter
| Parameter | Specification |
| MFD (1310nm) | 8.7~9.5 um |
| Cladding diameter | 125±1.0um |
| Fiber diameter | 235~255um, with UV coating, and colored to : 250±15um |
| Core/cladding concentricity error | ≤ 0.6um |
| Coating/cladding concentricity error | ≤ 12.0um |
| Cladding non circularity | ≤ 1.0% |
| Cut off wavelength | λcc ≤1260nm |
|
Attenuation coefficient |
1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling |
|
Bending-loss performance of optical fiber @1310nm&1550nm |
≤0.05dB (100 turns around a mandrel of 50mm diameter) |
| Polarization mode dispersion maximum individual fibre |
≤0.2ps/√km |
| Polarization mode dispersion link value | ≤0.1ps/√km |
| Zero-dispersion wavelength | 1300~1324nm |
| Zero-dispersion slope | ≤0.092ps/nm2·km |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
