OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T,Alipay, Western Union |
| Supply Ability : | 6000km |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Model Number: | GYXTW |
|
Detail Information |
|||
| Certification: | ISO 9001/CE/FCC/ROHS | Cable Brand: | Jiqian |
|---|---|---|---|
| Number Of Conductors:: | 12 | Application: | Duct/aerial |
| Fiber Type: | Fiberhome/YOFC | Suitable Temperature: | -40+60 |
| Service: | OEM, ODM | Port: | Guangzhou |
| High Light: | PE Jacket Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable 8 Cores |
||
Product Description

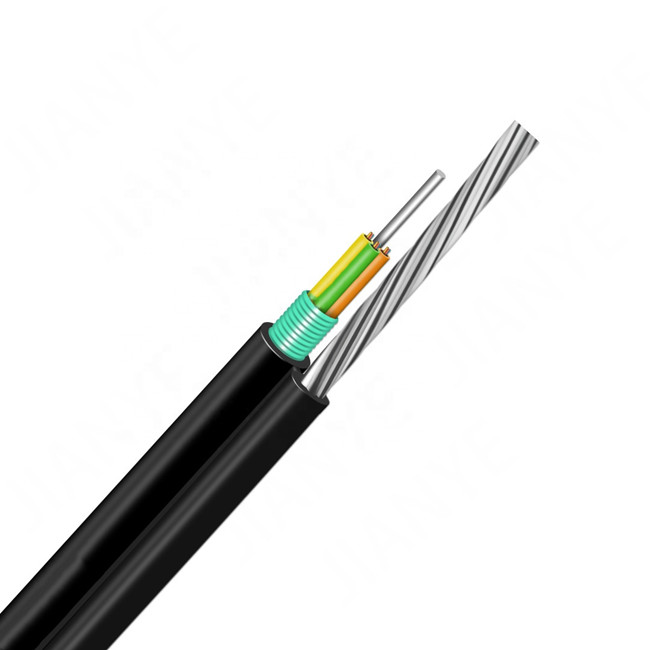

YOFC Black PE Jacket Outdoor Fiber Optic Cable 4 6 8 12 Cores GYXTW
Description of Outdoor Fiber Optic Cable
Fiber Optic Cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specification of Fiber Optic Cable G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 | |
| Cladding diameter | μm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | μm | ≤0.5 | |
| Coating diameter | μm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | μm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/ks | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |

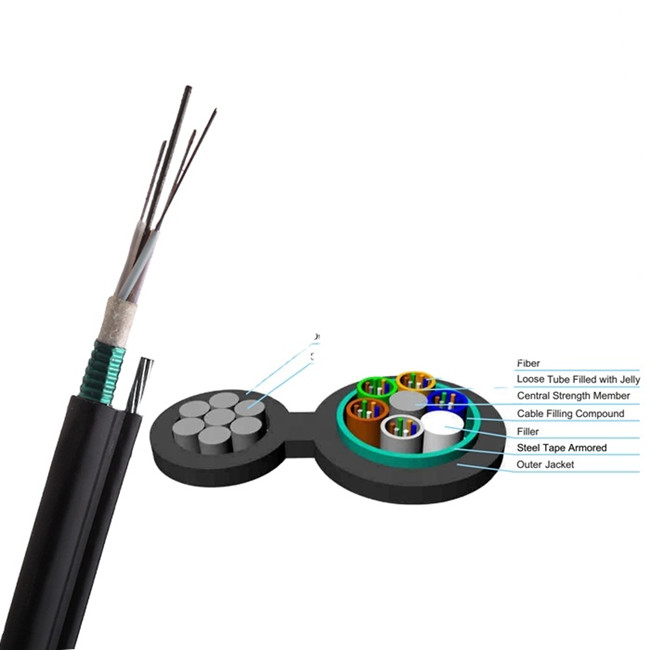

Cable performance:
| Item | Parameter | |
| Fiber Count | 12 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | nature | |
| Filler | Material | none |
| Color | none | |
| Strength Member | Dimension | 0.7mm±0.05mm |
| Material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| Color | Black | |
Feature of Outdoor Fiber Optic Cable
* Quick, highly repeatable, low-loss connections
* Simplex & Duples
* Singlemode & Multimode
* PC, UPC & APC polishing
* Various boot (cable) sizes available
* FC/ LC/ SC/ ST/ MTR/ MPO connectors available
* Interferential parameters
* Hybrid patch-cords are available upon request
* Low Insertion loss
FAQ:
1. Q: Are you a factory or trade company?
A: We are a factory
2. Q: What is the MOQ?
3. Q: Which brand of fiber do you use?
A: Corning,YOFC,Fiberhome,etc
4. Q: Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.
5. Q: What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Q: Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.Q: What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
