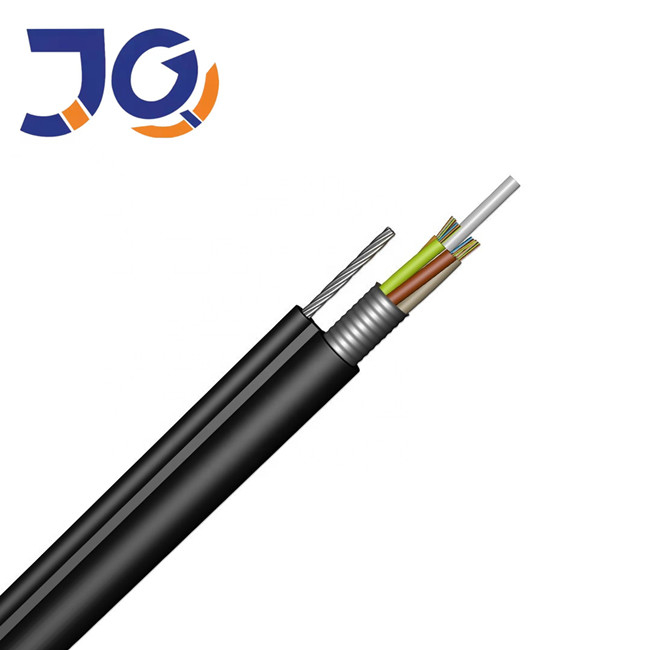

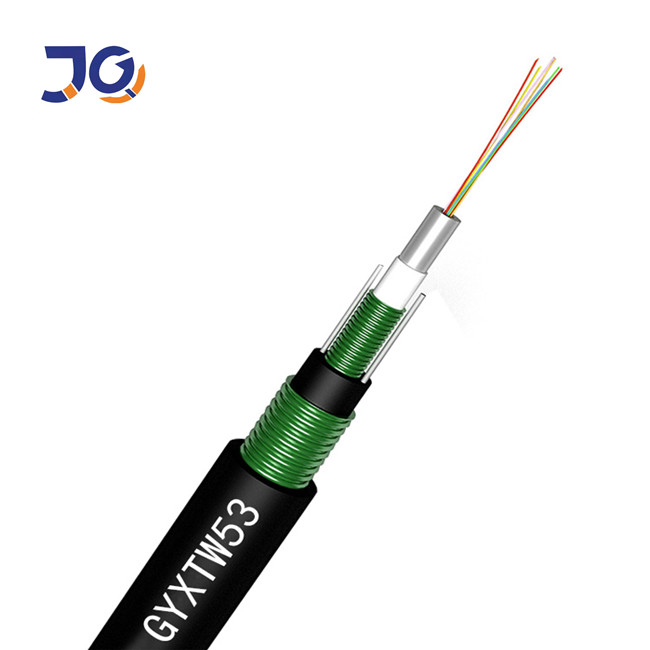

ODM Black PE Jacket Fiberhome Outdoor Fiber Optic Cable 4 6 8 12 Cores
Description of Outdoor Fiber Optic Cable
Fiber optic cables are a cost-effective alternative to time-consuming field terminals designed for high-density fiber optic wiring in data centers that need to save space and reduce cable management issues.
Specification of Fiber Optic Cable G652D
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
| Mode field diameter |
1310nm |
μm |
9.2±0.4 |
| 1550nm |
μm |
10.4±0.8 |
| Cladding diameter |
μm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
μm |
≤0.5 |
| Coating diameter |
μm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
μm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
| Attenuation Coefficient |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dB/ks |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
Cable performance:
| Item |
Parameter |
| Fiber Count |
12 |
| Colored coated fiber |
Dimension |
250µm±15µm |
| Color |
Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Loose tube |
Dimension |
2.2mm±0.1mm |
| Material |
PBT |
| Color |
nature |
| Filler |
Material |
none |
| Color |
none |
| Strength Member |
Dimension |
0.7mm±0.05mm |
| Material |
Phosphating steel wire |
| Armoured |
Material |
Plastic coated steel strip |
| Outer jacket |
Material |
PE |
| Color |
Black |
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
The reason why Choose us:
1. On time delivery
2. Customization
3. Factory outlet
4. Large product inventory with massive production line
5. Quality guarantee
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ:
1. Q: Are you a factory or trade company?
A: We are a factory
2. Q: What is the MOQ?
A: The MOQ of Fiber Optic cable is 1km.
3. Q: Which brand of fiber do you use?
A: Corning,YOFC,Fiberhome,etc
4. Q: Can you accept small order?
A: Yes, small order is available .We support new project of our customers as we know business is always from small order.
5. Q: What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Q: Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.Q: What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
