No metal singlejacket double jacket multi cores ADSS Fiber Optic Cable with HDPE
ADSS destricption
ADSS stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between structures without the use of conductive metal parts.
With a maximum of 144 fibers, ADSS cables can support both single mode and multimode fibers. From pole-to-building to town-to-town deployments,
ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop topologies. A full transmission circuit architecture
with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures
Features
1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstandingmechanical and environmental performance.
2. Non-metallic construction is convinence for cable laying without cutoff the power systems .
3. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for
different weather conditions and different installation spans.
4. Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 6 |
1+6 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 8 |
1+6 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 12 |
1+6 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
9.8 |
83 |
93 |
| 24 |
1+6 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
9.8 |
86 |
96 |
| 48 |
1+6 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
10.0 |
89 |
99 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
10.5 |
99 |
109 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
12.0 |
124 |
136 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
15.2 |
176 |
189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count |
structure |
fiber per tube |
losse tube diameter
(MM)
|
FRP/pad diameter (mm) |
Thickness of outer jacket(mm) |
Ref. Outer
Diameter
(mm) |
Ref. Weight
(kg/km) |
| PE Jacket |
AT Jacket |
| 4 |
1+6 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 6 |
1+6 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 8 |
1+6 |
4 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 12 |
1+6 |
6 |
1.9 |
2.0/2.0 |
1.7±0.1 |
12.0 |
125 |
135 |
| 24 |
1+6 |
6 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.0 |
128 |
138 |
| 48 |
1+6 |
12 |
2.0 |
2.0/2.0 |
1.7±0.1 |
12.5 |
130 |
140 |
| 72 |
1+6 |
12 |
2.2 |
2.0/2.0 |
1.7±0.1 |
13.2 |
145 |
155 |
| 96 |
1+8 |
12 |
2.2 |
2.0/3.4 |
1.7±0.1 |
14.5 |
185 |
195 |
| 144 |
1+12 |
12 |
2.2 |
3.0/7.2 |
1.7±0.1 |
16.5 |
212 |
228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
|
Fiber type
|
Attenuation
(+20℃)
|
Bandwidth
|
Optical cable cut-off wavelength
|
|
@850nm
|
@1300nm
|
@1310nm
|
@1550nm
|
@850nm
|
@1300nm
|
| G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
≤1260nm |
| G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
≤1450nm |
| 50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
| 62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
---
|

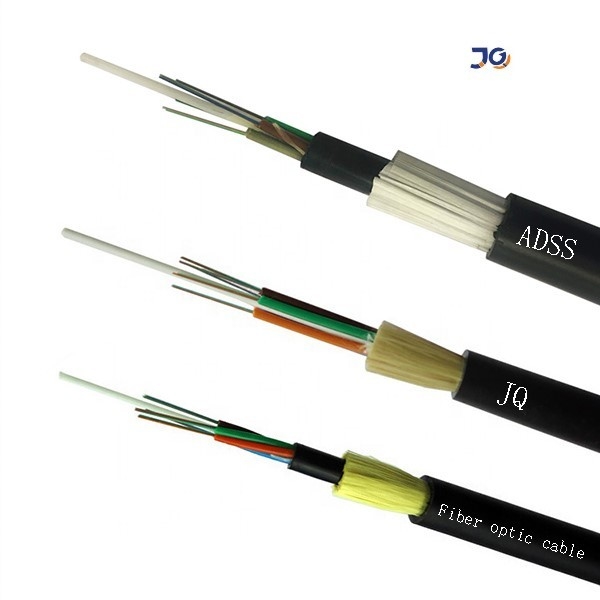

Details picture shows

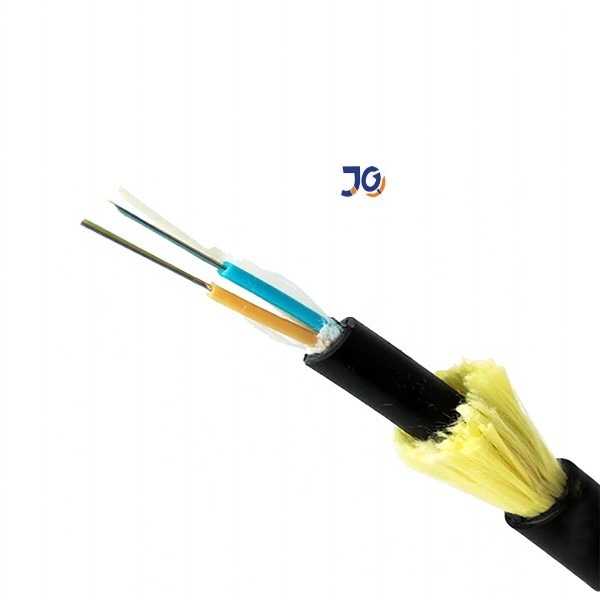

single jacket ADSS fiber cable

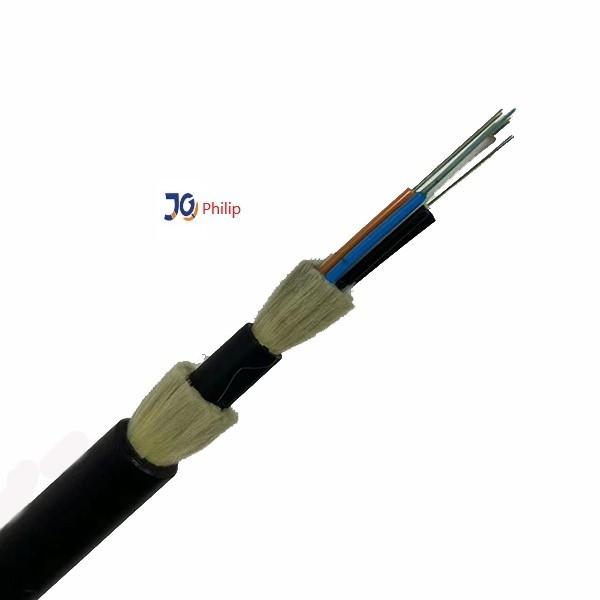

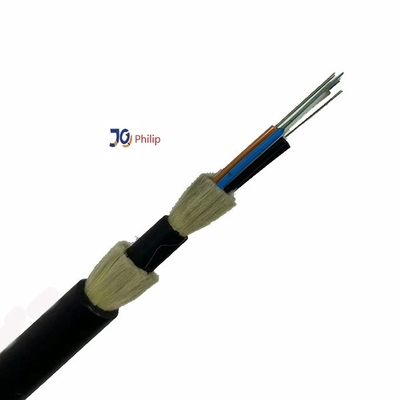

double jacket ADSS fiber optic cable
Application of Fiber Optic Cable
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
- Telecommunication networks
- Data centers
- 40G to 10G transition
- CATV;
- Active device termination;
- Metro;
- Local Area Networks;
- Data processing networks
- Test equipment;
- Premise installation;
- Wide Area Networks
Packing:
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord.
Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
