Self Supporting Aerial ADSS Fiber Optic Cable 12 /24/48 cores Span 100m
product desctirption
ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower. Loose tube construction, tubes jelly filled, elements (tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member,polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the cable core, thenaramid yarn reinforced and PE outer sheath.
Characteristics
· Can be installed without shutting off the power
· Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
· Light weight and small diameter reducing the load caused by ice and wind and the load on towers
and backprops
· Large span lengths and the largest span is over 1000m
· Good performance of tensile strength and temperature
· The design life span is 30 years
·Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
·Standards
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

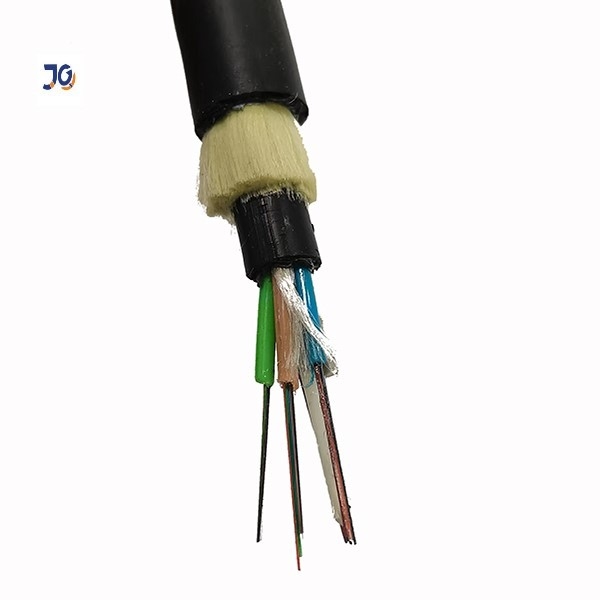

ADSS detail pictures showes:

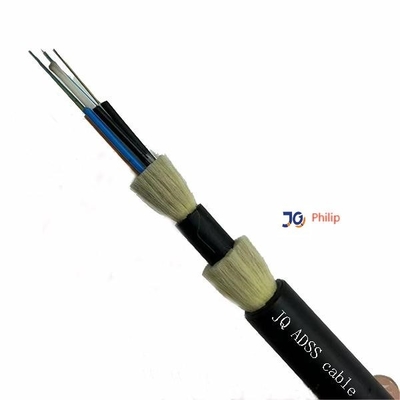

single jacket ADSS

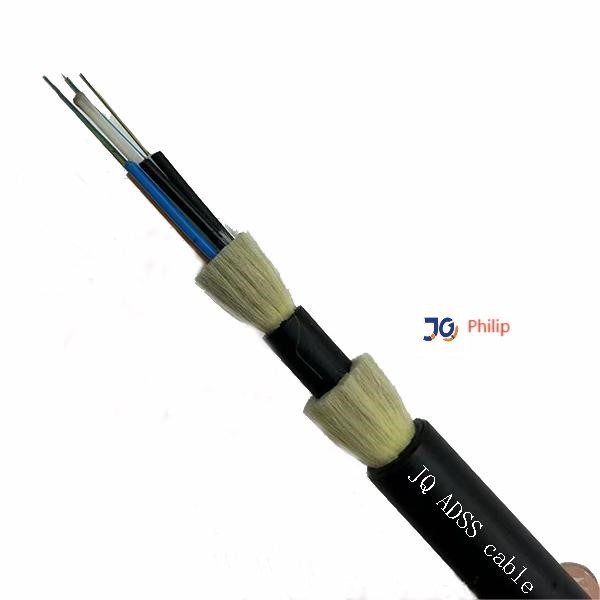

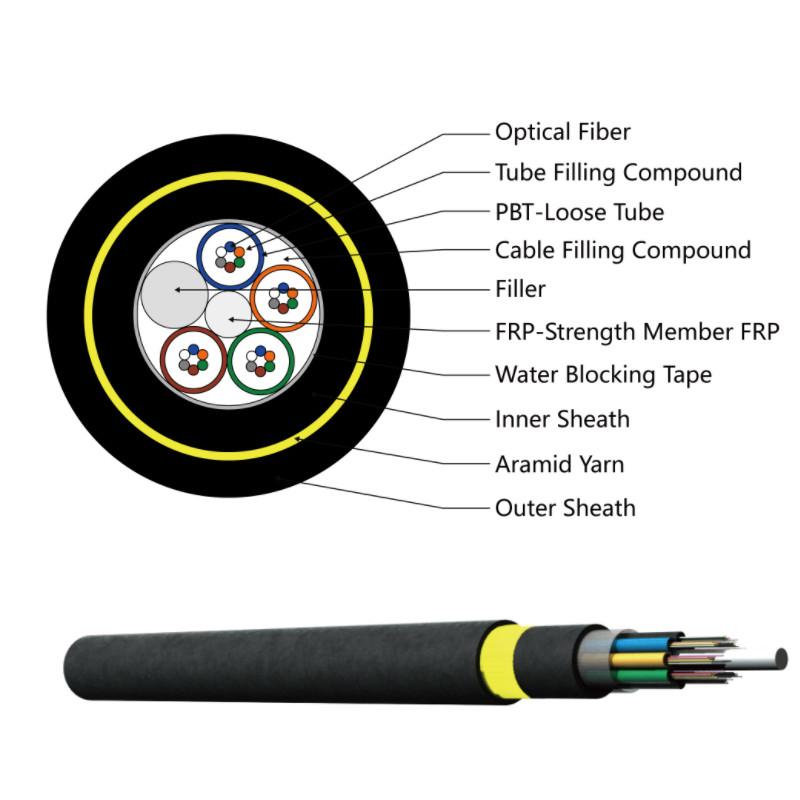

double jackets ADSS
ADSS data sheets
Structure and Technical Specifications ADSS-SJ(50-150M)
Ref. Outer Diameter (mm) | Ref. Weight (kg/km) | Rec. Daily Max. | Max Allowable Working Tension (kN) | Break | Strength | Modulus of | Heat | Suitable Span Meter | ||||
PE Jacket | AT Jacket | A | B | C | D | |||||||
11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
Ref. Outer Diameter (mm) | Ref. Weight (kg/km) | Rec. Daily Max. (kN) | Max Allowable Working Tension (kN) | Break | Strength | Modulus of | Heat | Suitable Span Meter | ||||
PE Jacket | AT Jacket | A | B | C | D | |||||||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Optical characteristic
Fiber type | Attenuation | Bandwidth | Numerical aperture | Optical cable cut-off wavelength | ||||
---|---|---|---|---|---|---|---|---|
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
