anti-rodent direct buried underwater GYTA33 GYTS33 steel wire armored fibre optic cable

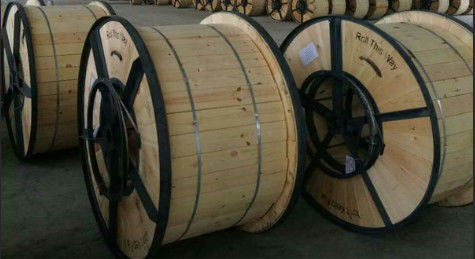

Minimum Order Quantity : 5km Packaging Details : wooden drum
Delivery Time : 10 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Place of Origin: China Brand Name: JQ/OEM
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYTA33

Detail Information

Fiber Brand: YOFC/Fiberhome/ Corning Color: Black
Jacket Metarial: PE,HDPE/LSZH Strength Member: FRP
Fiber Count: 2-288 Cores Installation: Directly Burail & Duct
Sample: Acceptable Product Name: GYTA33 Outdoor Fiber Cable
Application: Network/long Distance Communication
High Light:

144 Core Non Armored Cable


GYFTY Non Armored Cable


MDPE Jacket Non Armored Cable

Product Description

GYTA33 directly burial underwater fiber cable

Product Description


GYTA33 optical cable is a type of armored loose tube cable commonly used in outdoor installations. It is designed to provide high-performance fiber optic connectivity in harsh environments. GYTA33 cables consist of multiple optical fibers encased in a protective outer jacket, providing durability and protection against various external factors.

Mechanical Protection: GYTA33 optical cables are designed with an armored construction, which provides excellent mechanical protection to the enclosed optical fibers. The armored layer consists of steel wires or steel tapes that offer resistance against crushing, impact, and rodent attacks. This makes GYTA33 cables ideal for installations in rugged environments where protection against physical damage is crucial.
Enhanced Durability: The outer jacket of GYTA33 cables is made from high-quality materials such as polyethylene (PE) or polyvinyl chloride (PVC). These materials offer superior resistance to moisture, UV radiation, chemicals, and temperature variations. As a result, GYTA33 cables can withstand harsh outdoor conditions, including extreme temperatures, sunlight exposure, and moisture ingress, ensuring long-term reliability.




Whole section water blocking structure ensures good water blocking performance Special tube filling compound ensure a critical protection of fiber Accurate residual length control ensures that cable has good tensile and temperature performance The armor by smooth round steel wire greatly strengthens the tensile strength and improves the crush resistance of fiber optical cable Polyethylene sheath has good radiation resistance The service life of the product is more than 30 years.




• Adopted to Outdoor distribution.

• Suitable for directly burial aying method.

• Suitable for water and submarine area.


Optical Characteristics

Items Unit Specification
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22



Technical Parameters

Min.Bend Radius Mlin.Tension
Static Dynamic Long Term Short Term Long Term Short Term
2-30 13.5 245



















4000 10000 3000 5000
32-36 13.8 252 4000 10000 3000 5000
38-60 14.5 275 4000 10000 3000 5000
62-72 15.0 285 4000 10000 3000 5000
74-96 15.5 295 4000 10000 3000 5000
98-120 16.0 305 4000 10000 3000 5000
122-144 17.0 315 4000 10000 3000 5000
146-216 19.0 345 4000 10000 3000 5000
218-240 20.5 365 4000 10000 3000 5000
242-288 21.5 395 4000 10000 3000 5000


Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788



Detail product pictures

anti-rodent  direct buried underwater GYTA33 GYTS33 steel wire armored fibre optic cable 0


anti-rodent  direct buried underwater GYTA33 GYTS33 steel wire armored fibre optic cable 1


anti-rodent  direct buried underwater GYTA33 GYTS33 steel wire armored fibre optic cable 2

anti-rodent  direct buried underwater GYTA33 GYTS33 steel wire armored fibre optic cable 3

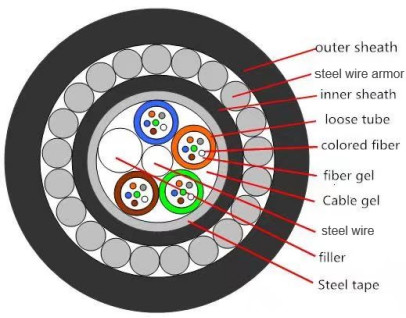

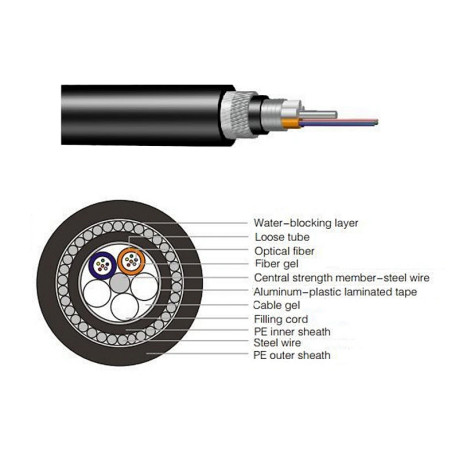

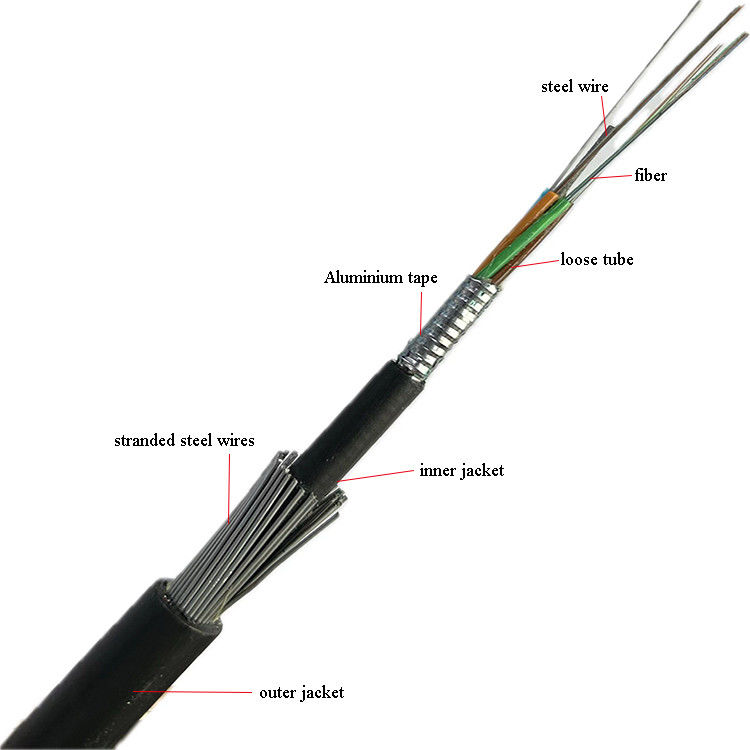

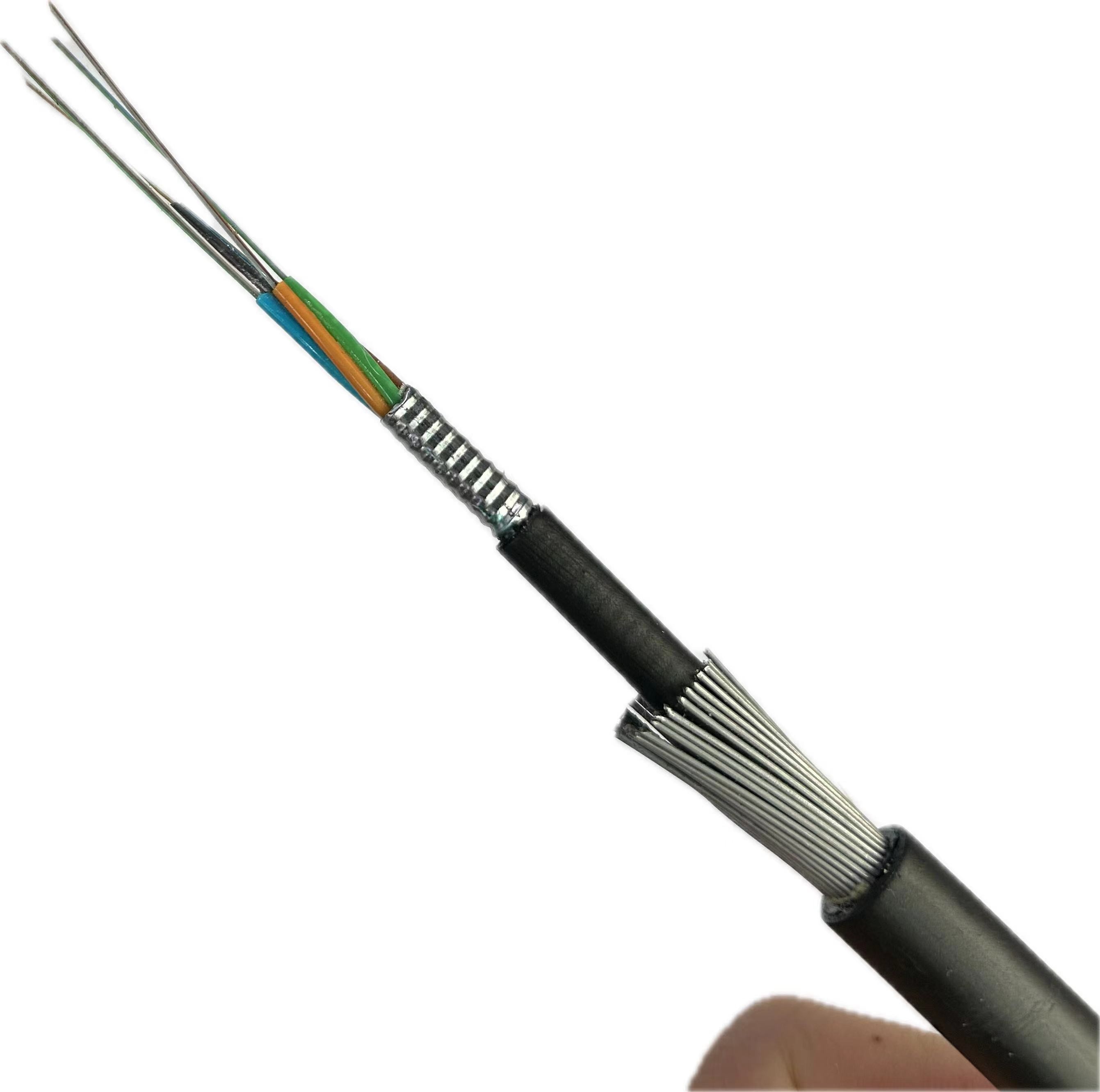

                                   Picture shows about the GYTA33 fiber cable








Q1:  How the warranty for products ?

A: 10 years,and maintance for whole life


Q2:  Can we make OEM for products?

A: Yes, we can print your logo or label on the products or on the box.


Q3:  Can you provide free samples ?

A:  you can get free samples from my company.


Q4: Are you factory direct?

A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
Q5: What is your main products?
A:Outdoor fiber optic cables such as GYTA33/GYXTC8Y/ADSS ,GYTA, GYFTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables

Q6: Do you have certificate for raw material?

A:We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers


A: Some of low value samples can be free for you, but you need pay for the shipping cost.


Q4:  How can you guarentee the quality ?

A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
