Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 4500KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 ROHS CE |
Detail Information |
|||
Model Number: | GYTC8S/GYTC8Y | Fiber Type: | G652D |
---|---|---|---|
Fiber Count: | 2-144 Cores | Color: | Black |
Messenger Wire: | 7*1.0 Steel Stranded Wire | Structure: | Figure 8 Cable |
Type: | Singlemode & Multimode | Operating Temperature: | -40 ~ +60 C |
Application: | Outdoor Aerial Application | Product Name: | Figure 8 Self Support Fiber Optical Cable |
High Light: | 144 Cores Self Supporting Cable,GYTC8Y Self Supporting Cable,Singlemode Self Supporting Cable |
Product Description

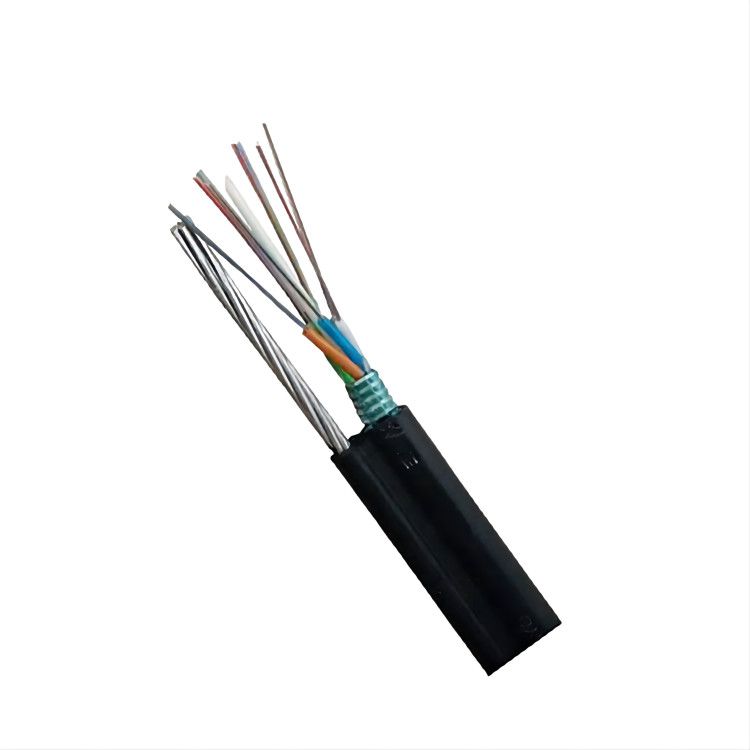

Self-Supporting Cable GYTC8S GYTC8Y

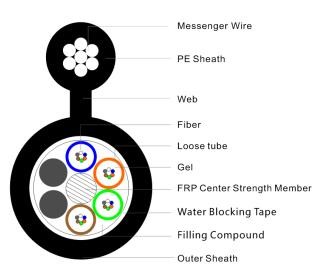

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates or FRP in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress. This part of cable accompanied with the strand wires, as the supporting part are completed with a polyethylene(PE)sheath to be figure 8 structure.
Features
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.8*16.3 | 190 |
96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12*17.5 | 205 |
144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.8*21.3 | 320 |
Packing
• Standard Cable Wooden Drum
• Standard reel length: 2/3km/reel, other length is also available
