GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable
GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable
Contact Now

GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable

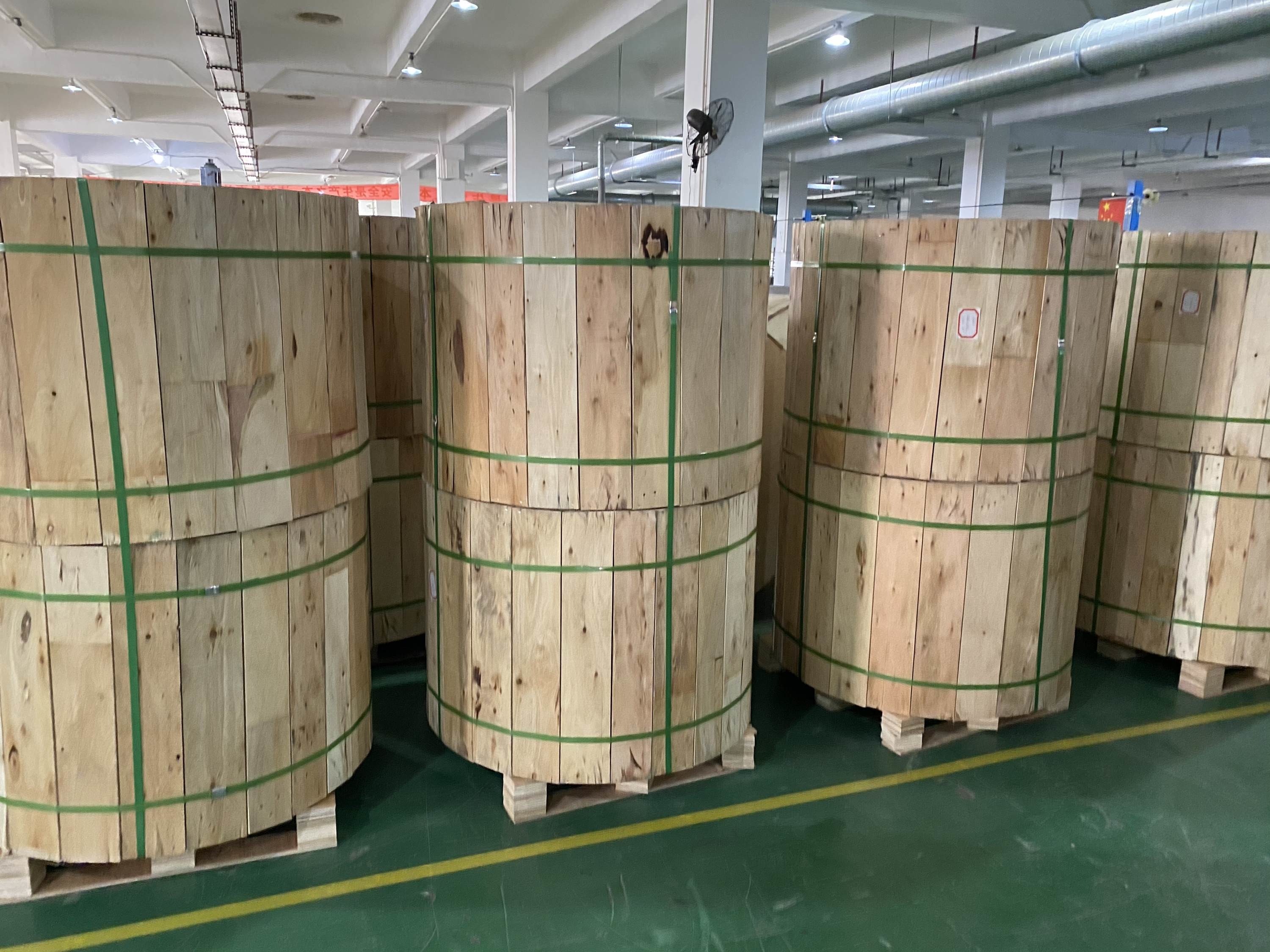

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001

Detail Information
Model Number: GYFTY53-48 Core Fiber Count: 4-144 Cores
Fiber Type: Single Mode/multi Mode Jacket: PE
Color: Black Product Name: Outdoor Fiber Optic Cable
Structure: Loose Tube Installation: Aerial Or Duct
Strength Member: FRP Oem: Available
High Light:

Anti Rodent Fiber Optic Cable

,

Double Jacket Armored Fiber Optic Cable

,

GYTY53 Fiber Optic Cable

Product Description

GYTY53 Double Jacket Armored Anti-rodent Fiber Optic Cable

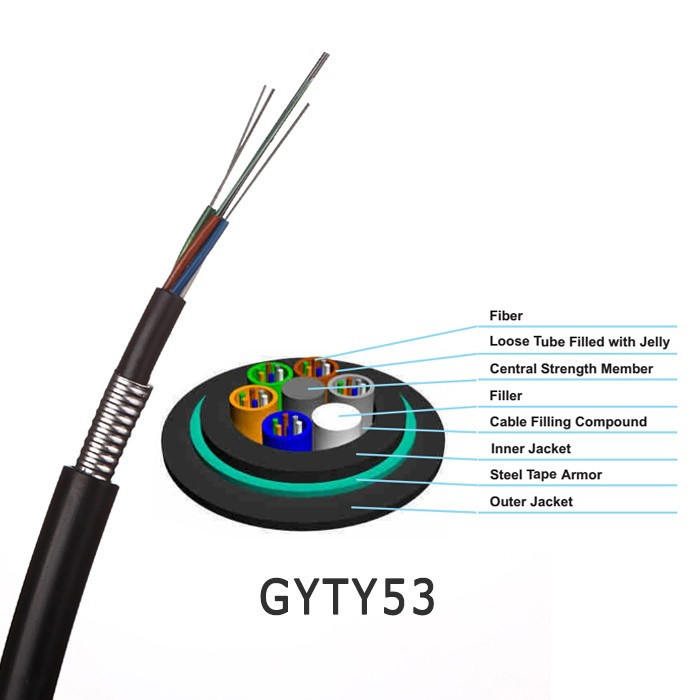

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

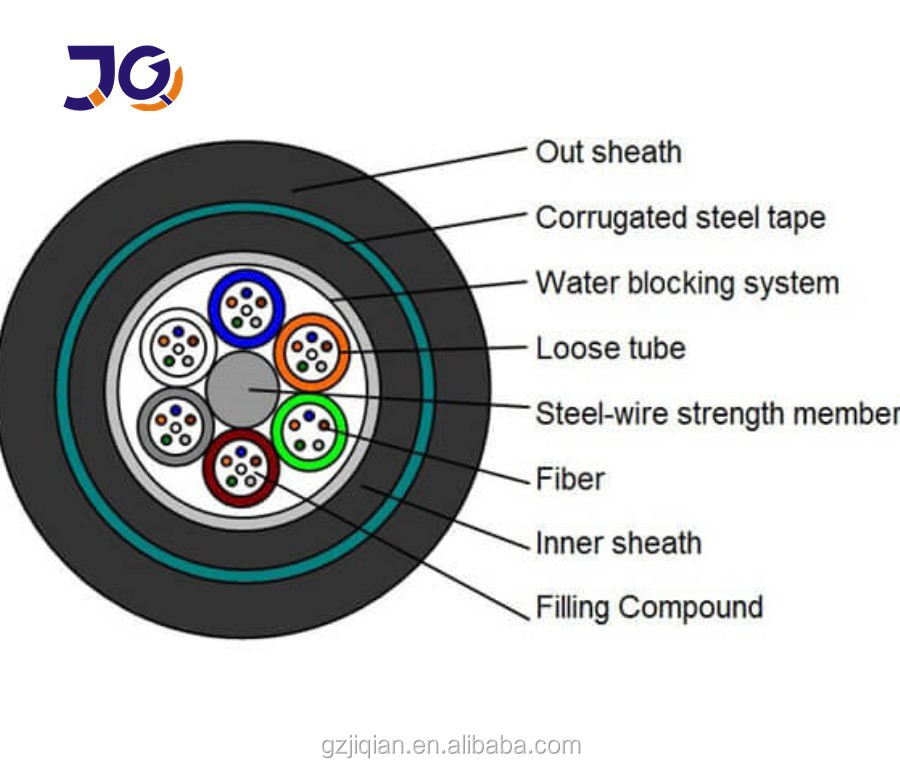

GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable 0


Application

1. Direct burial

2. Underground

3. Backbone Internet



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm















Technical Data



Fiber count



Nominal

Diameter(mm)



Nominal

weight(kg/km)



Max

Fibers per

Tube



No.of

(Tube+fillers)



AllowableTensile Load

(N/100mm)



Allowable Crush

Resistance(N/100mm)



short

Term



long

term



short

Term



long term



2~36



10.2



125



12



6



3000



1000



3000



1000



36~72



15.1



212



12



6



3000



1000



3000



1000



74~96



16.3



246



12



8



3000



1000



3000



1000



    98~120



17.8



288



12



10



3000



1000



3000



1000



   122~144



19.4



336



12



12



3000



1000



3000



1000



>144



Design according to the customer request



GYTY53 Double Jacket Armored Anti - Rodent Fiber Optic Cable 1
