OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
|---|---|---|---|
| Delivery Time : | 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T,Alipay, Western Union |
| Supply Ability : | 10000km |
| Brand Name: | Jiqian | Model Number: | GYXTW |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Certification: | ISO 9001/CE/FCC/ROHS |
|---|---|---|---|
| Model Name: | GYXTW-4B1 | Fiber Count: | 4 Cores |
| Loose Tube: | 2.0mm | Armoured: | Curragated Steel Tape |
| Fiber Type: | Fiberhome/YOFC | Sheath: | PE/LSZH Black |
| Manufacturer: | Yes | Strength Member: | Steel Wire |
| High Light: | 6 Core Fiber Optic Cable,GYXTW Armoured Fiber Optic Cable |
||
Product Description

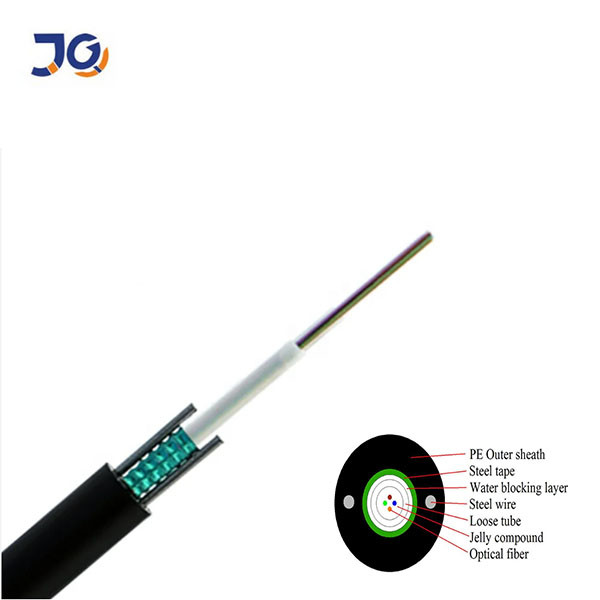

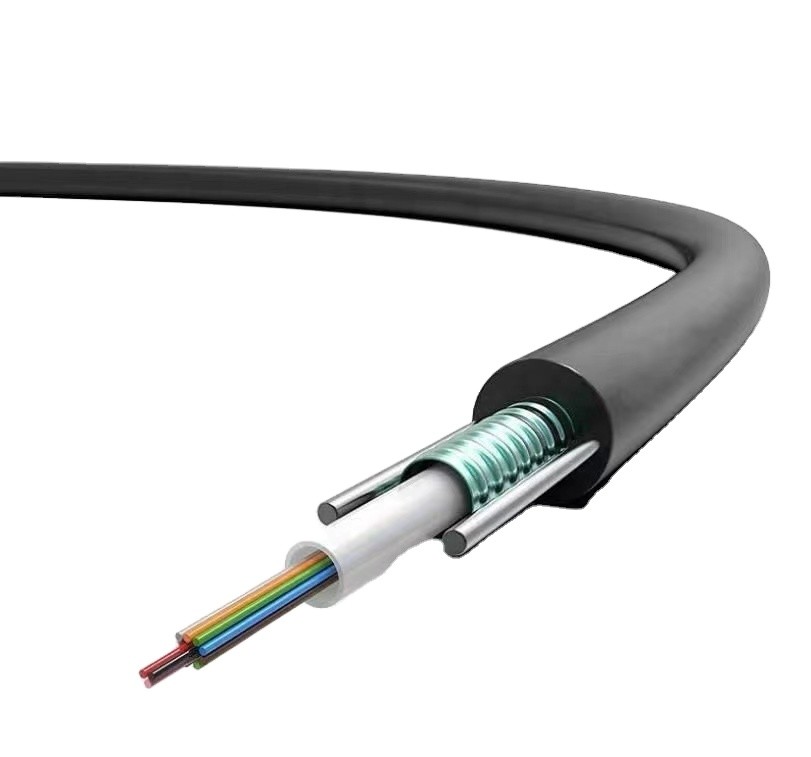

Factory Price GYXTW Armoured Uni-tube SM MM 6 Core Fiber Optic Cable
Mechanical and Environmental Characteristics:
| Item | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
|
Repeating bending |
Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Torsion |
Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Impact
|
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.
|
|
Certification
Characteristics:
1.The two parallel round steel wires enhance tensile strength,tension-resistance and crush resistance
2.Good mechanical performance,jacket with good ultra violet resistant property
3.Small outer diameter,lightweight,tight structure,excellent bending property and suitable to installation and operation
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.

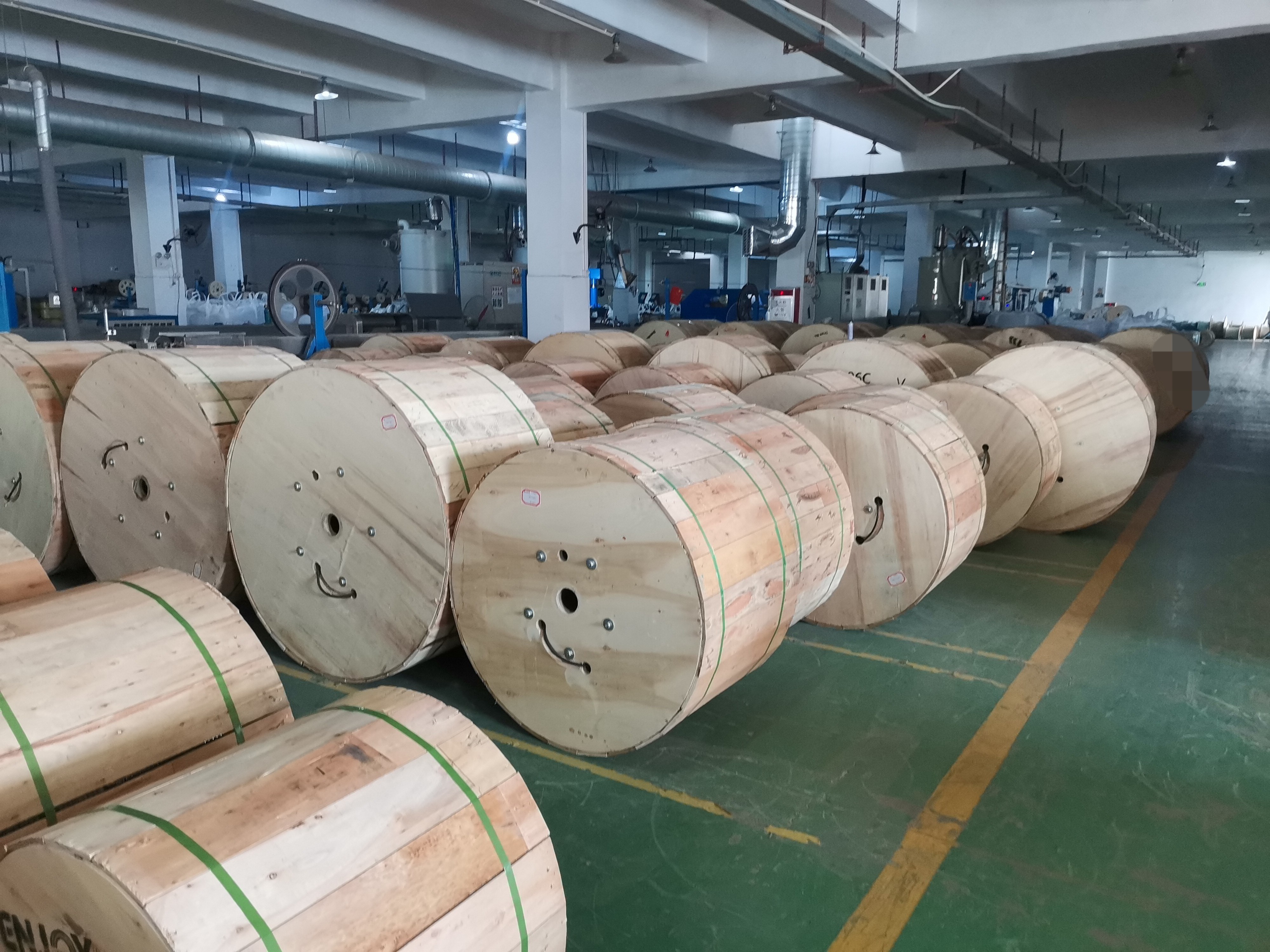

Welcome to our factory,which is in Guangzhou,China
Contact me at +8618998347595 to get free sample
