Home ProductsOutdoor Fiber Optic CableGYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable
Contact Now

GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable

Minimum Order Quantity : 2km Price : 200-1600usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: GYTA33

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: GYTA3 Structure: Multi Layers Metal Structure Optic Fiber Cable
Network: FTTH FTTX
Highlight:

GYTA33 Underground Fiber Optic Cable

,

Direct Burial Underground Fiber Optic Cable

Product Description

GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable
1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:Where is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small ordeA:Yes, small order is available .We support new project of our customers as we know business is always from small order.
Product Description

GYTA33 Underwater underground fiber optic cable 1000 strong thick Armoured direct burial fiber cable

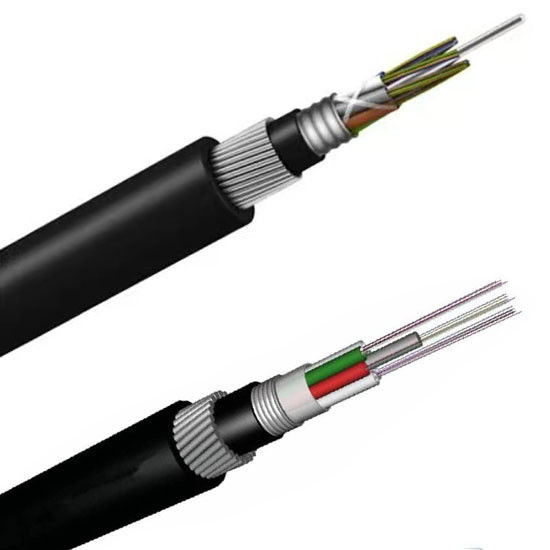

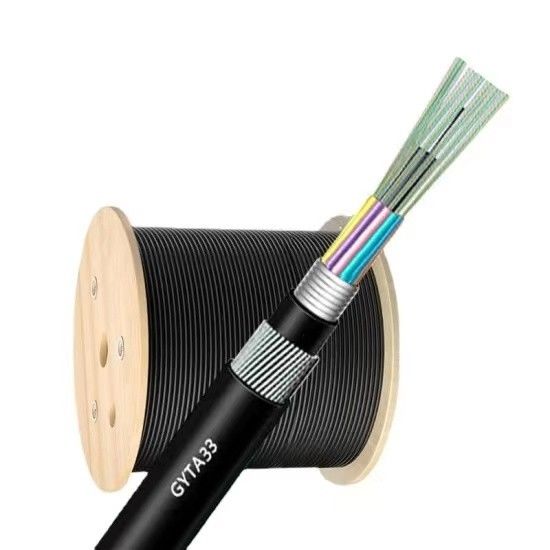

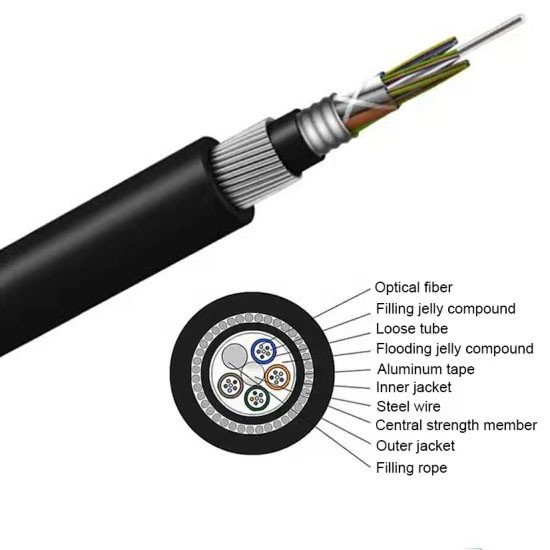

Fiber optic cable GYTA33, 2-144 cores fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler(if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires,pe outer sheath. G652d sm fiber, detailed specification on your request.
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 0
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 1
Characteristics:
1.Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
3.The armoring of steel wire and double-jacket structure make cable have excellent tensile strength and nice properties of
water-proof and crush resistance.

Application:
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.
Application:
(1) Wile area network system
(2) Junction communications system
(3) Adopted for outdoor backbone cable, distribution cable
(4) Long distance and local area network communications
(5) Suitable for severe environment like underwater,steep slope,river etc
Specification
Product Name
Fiber Optic Cable
Fiber Count
2-144 Fibers,can be customized according to customers' requirement
Construction
multi-layer Armored structure,layer steel wire for strengthen
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
underwater,direct buried,severe environment
Jacket Diameter
19-28mm
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-20℃ to +60℃
Strengthen
multi layers with metal structure
Color
usually black,can be customized
Related Products
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 2
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 3
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 4
GYTA33 Underwater Underground Fiber Optic Cable 1000 Strong Thick Armoured Direct Burial Optic Fiber Cable 5

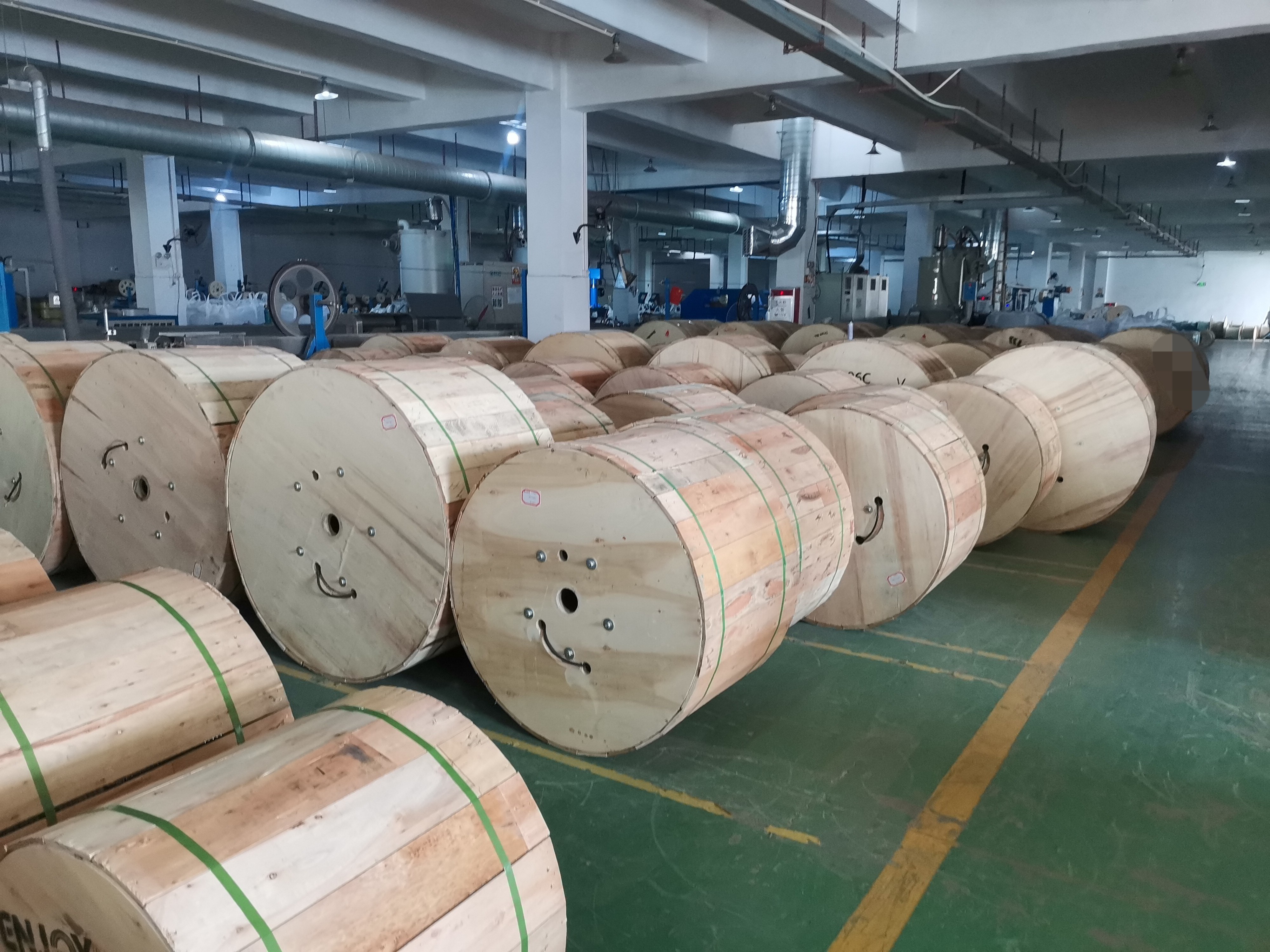

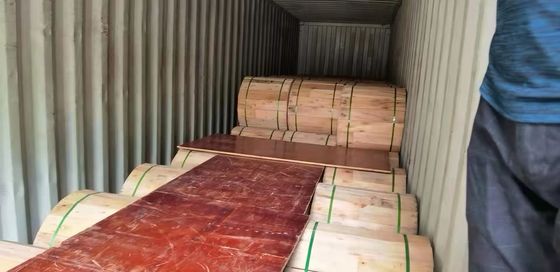

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
