Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter
Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter
Contact Now

Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter

Minimum Order Quantity : 2km Price : 220-950usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: GYFTC8S53

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: GYFTC8S53 Structure: Layer-stranding Cable
Network: FTTH FTTX
High Light:

Aerial Fiber Optic G652d Cable

,

96 Core Fiber Optic G652d Cable

Product Description

Product Description

Double Jacket Double Armoring Aerial Figure 8 single mode 6 core 12 core 24 core 48 core 96 core fiber optic g652d cable price per meter GYFTC8S53

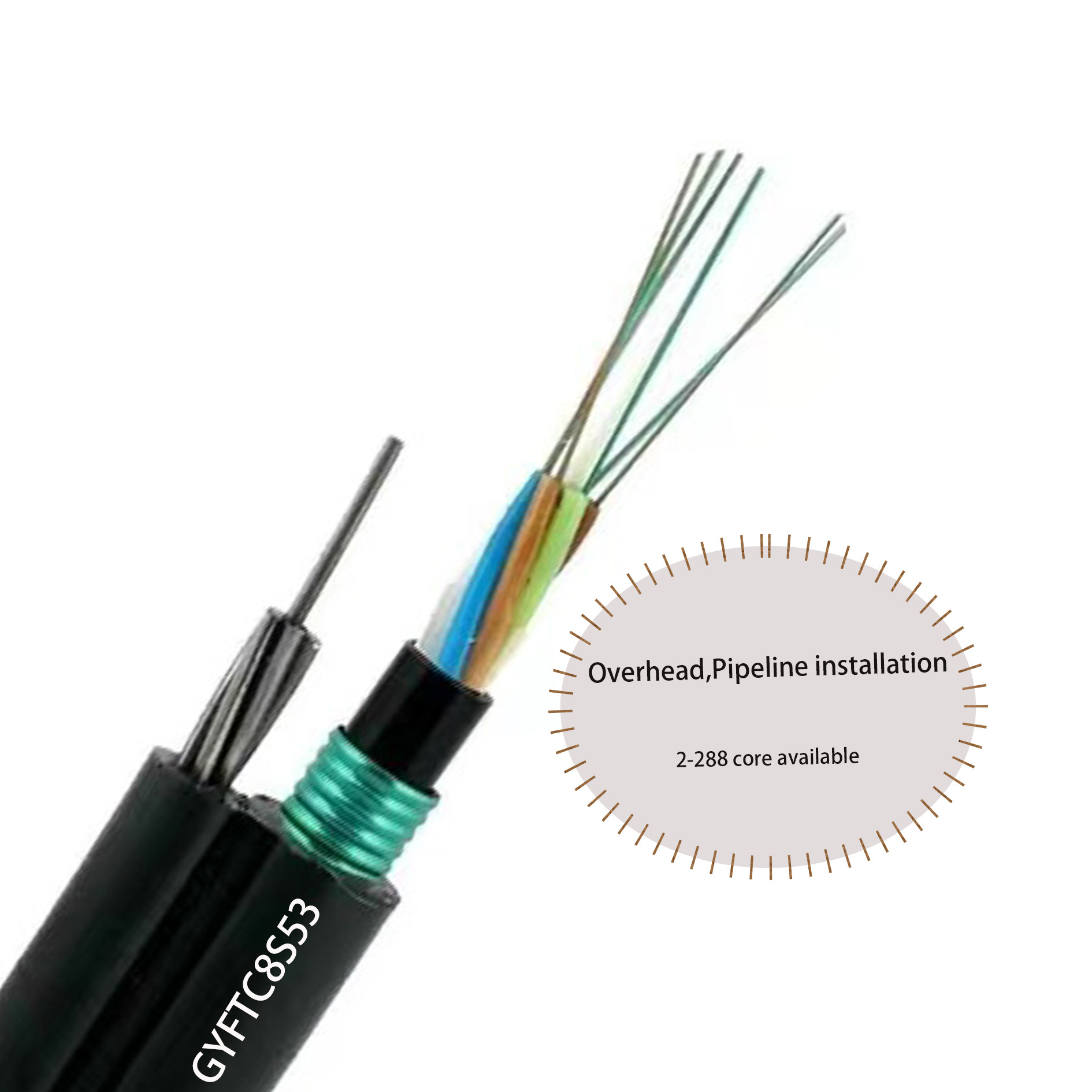

Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 0

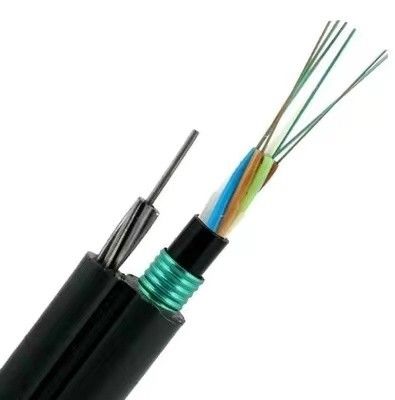

Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 1

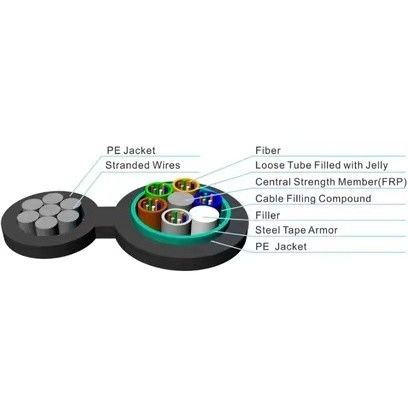

GYFTC8S53
* Loosen tube stranding,

Non-metal strength member for central location

Flooding jelly compound,

Double steel tape armored ,

Double PE jacket

Figure "8" layer-stranding optic fiber cable

Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 2
Specification
Product Name
GYFTC8S53 figure 8 double jacket double armour fiber optic g652d cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
steel wire rope for strengthening + Center beam tube for fibers
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead, aerial
Fiber cable Diameter
4-60 cores,around 11.7*17.3mm
72 core,around 13.0*18.8mm
96 core,around 14.7*20.6mm
144 core,around 17.8*23.8mm
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
steel wire rope
Color
usually black,can be customized
Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 3
Related Products

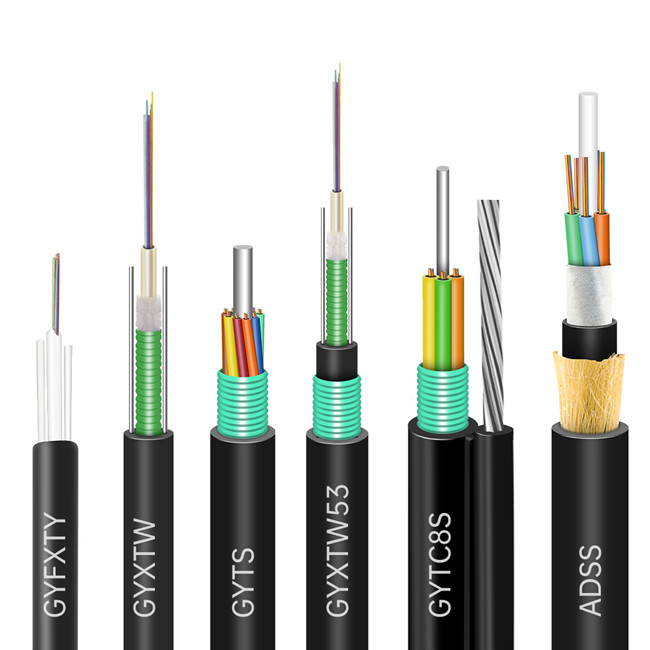

Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 4
Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 5
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 6
Double Jacket Double Armoring Figure 8 GYFTC8S53 Aerial 6 24 48 96 Core Fiber Optic G652d Cable Per Meter 7
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

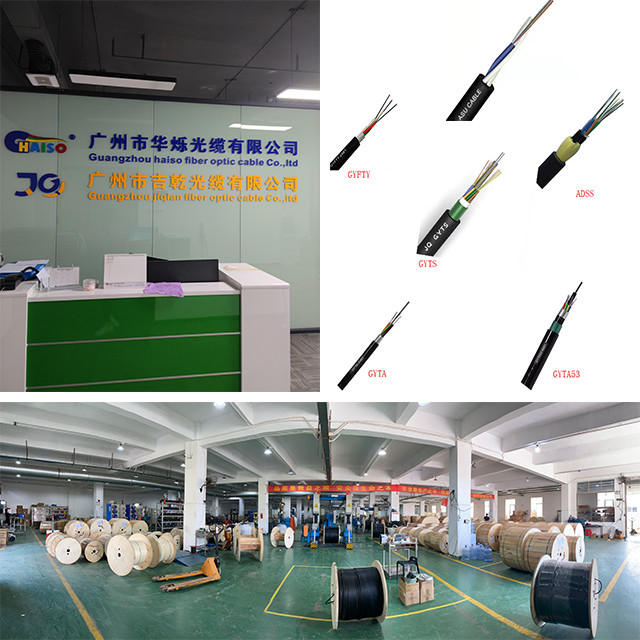

Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
