Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
Contact Now

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable

Minimum Order Quantity : 2km Price : 100-500usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: any style for choice,also customize

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: Different Models For Choice,can Customize For Customers Application: Aerial,duct,underground
Network: FTTH FTTX
High Light:

Network Adss Fiber Optic Cable

,

144 Core Adss Fiber Optic Cable

,

Strong Tensile Adss Fiber Optic Cable

Product Description

Product Description

Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter



Application

1. overhead
2. aerial
3. duct

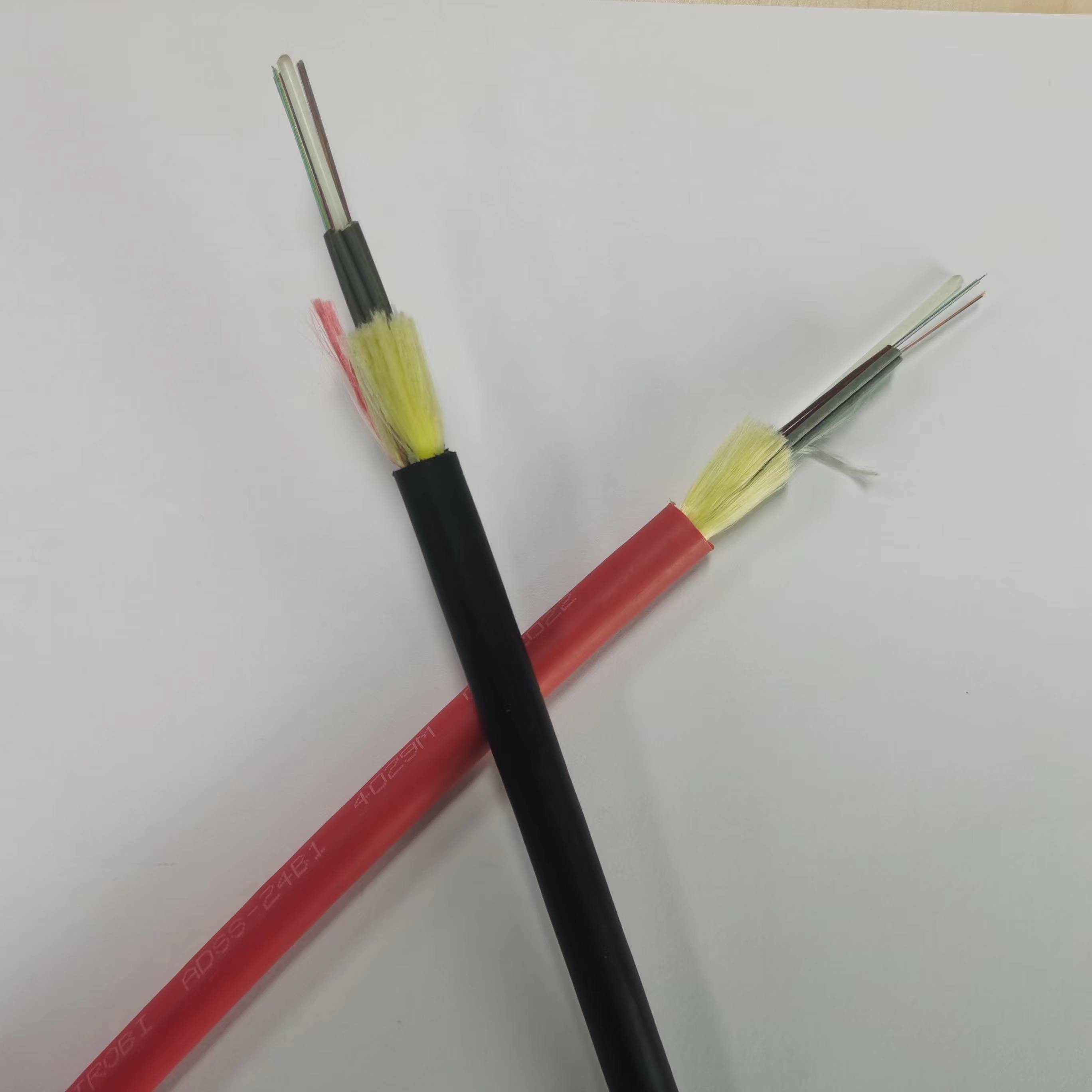

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 0

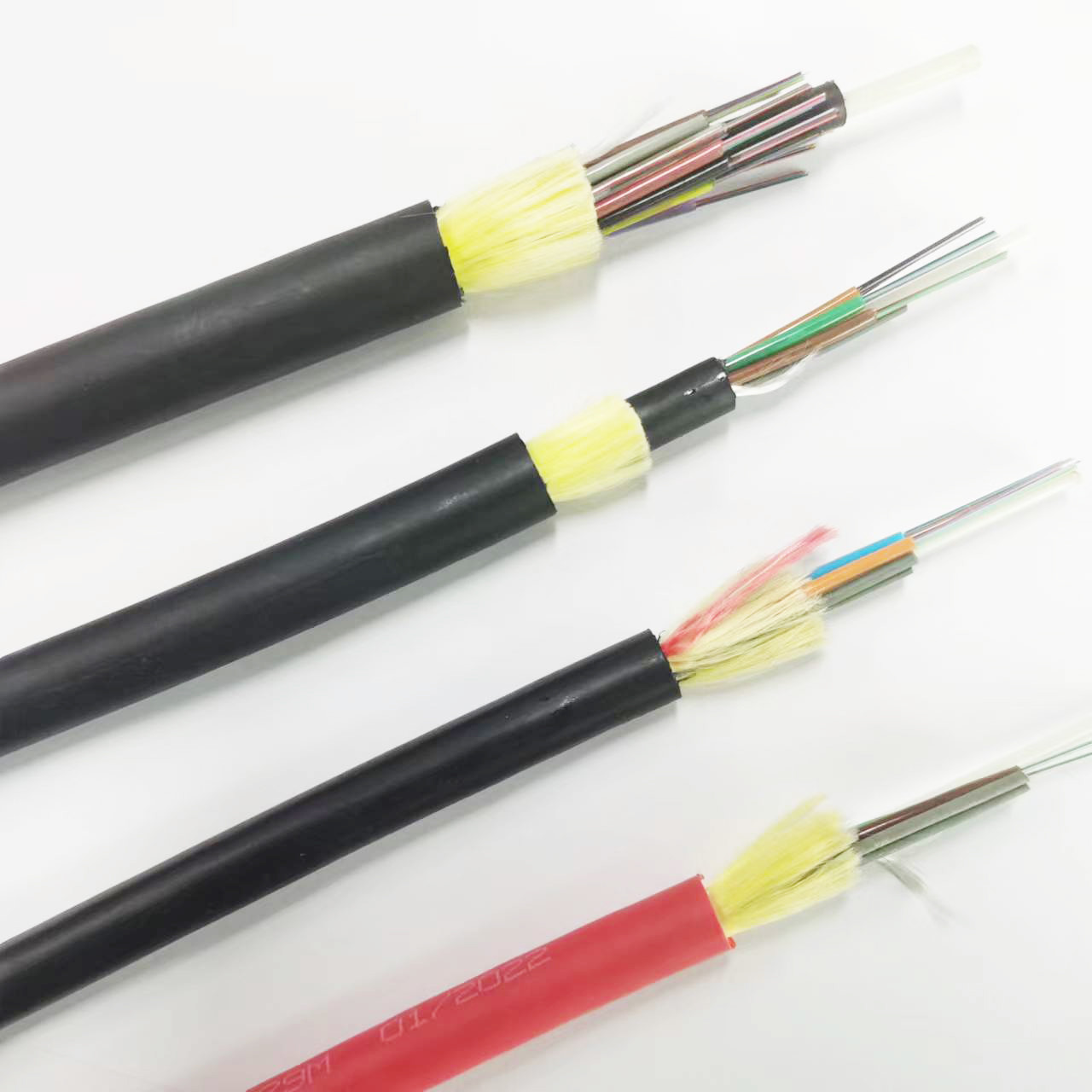

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 1
Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter
1. All Dielectric Self Supporting Non-metallic Optical Fiber Cable.
2. It can be directly suspended on the power tower.
3. Mainly use for overhead high-voltage transmission system.
Feature
• big quantity for fibers,can be from 2-288,can be set up together with power tower.

• All-dielectric design, applicable to lightning-prone areas

• Aramid yarns are used as load-bearing components,high tensile strength

• Metal free,anti-electromagnetic interference,lightning protection,strong electromagnetic field. can be used in many thunderstorm areas.


Specification
Product Name
Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter
Fiber Count
2-244 Fibers,can be customized according to customers' requirement
Construction
PE sheath + aramid yarn,FRP strengthen
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead,aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized

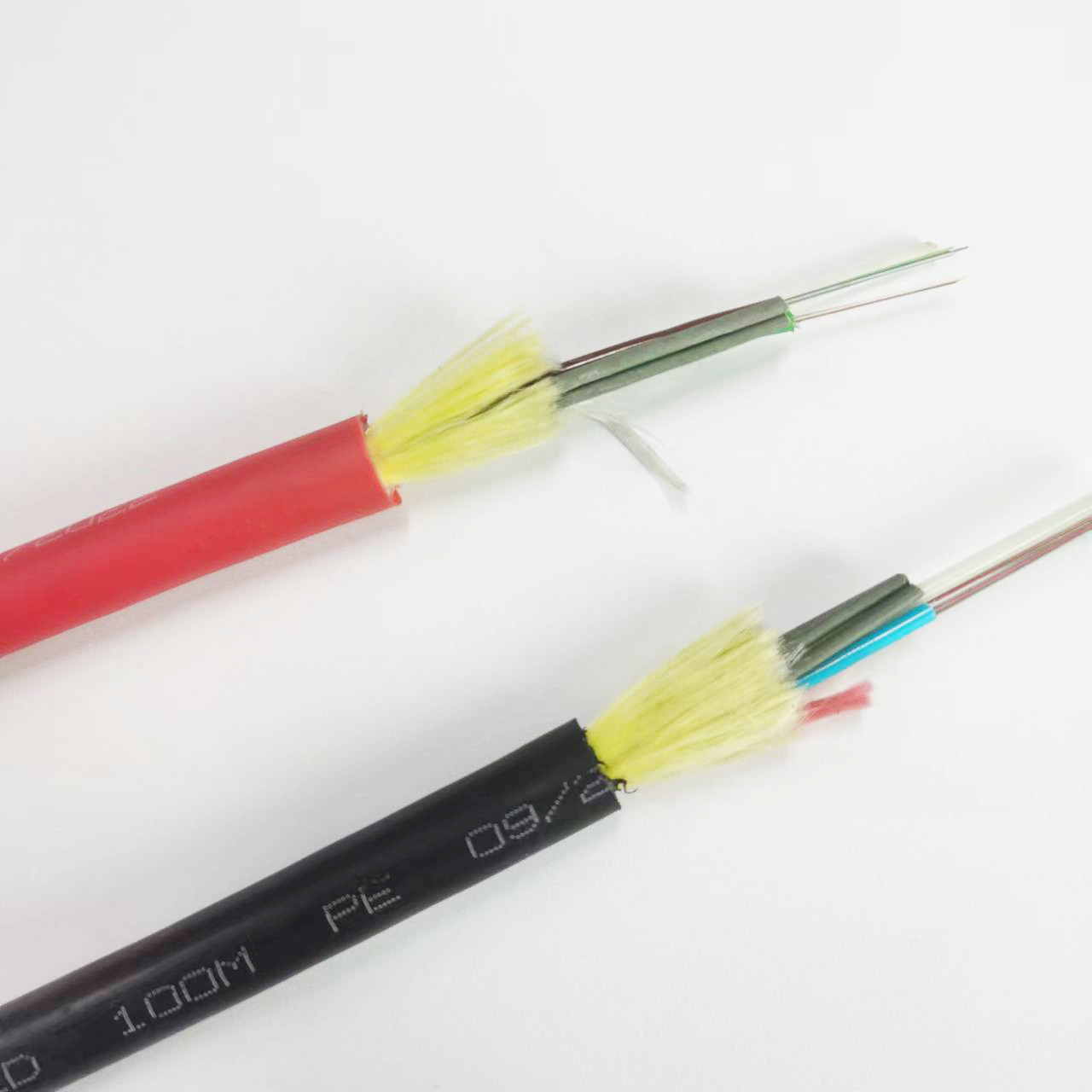

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 2
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products

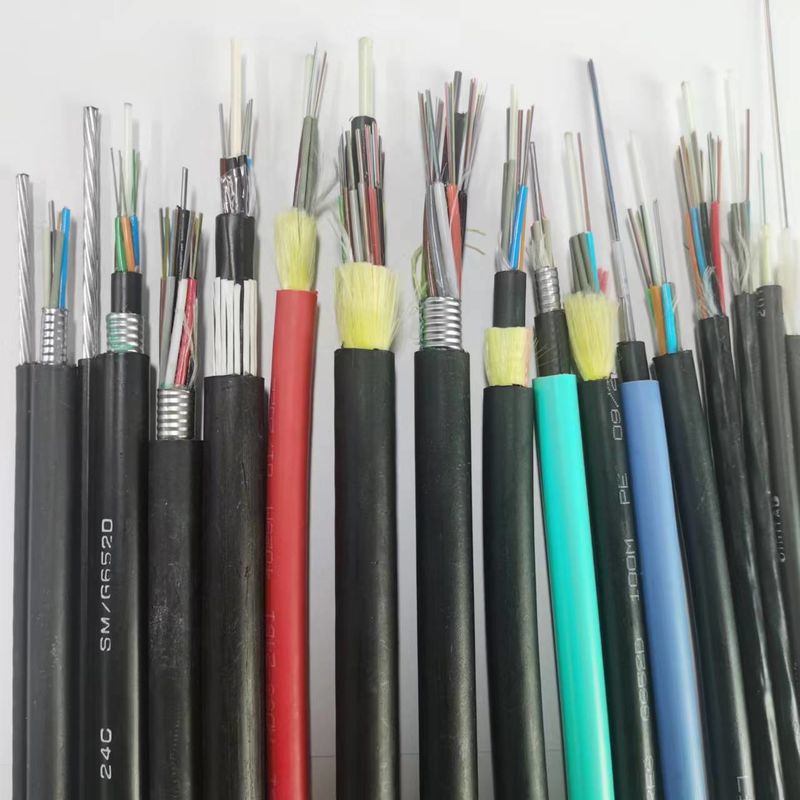

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 3

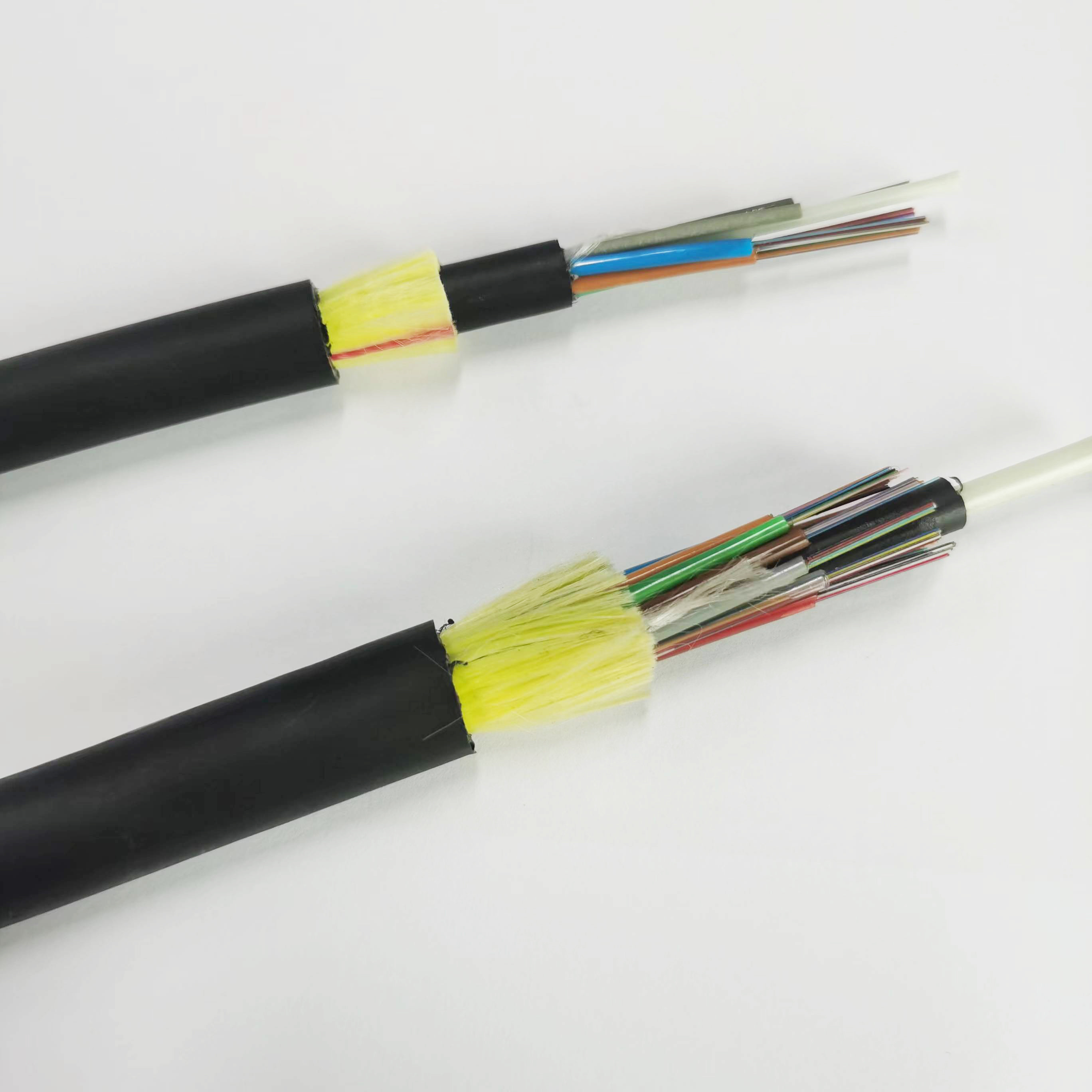

Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 4
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 5
Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 6
Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 7
Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable 8
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
