GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable
Contact Now

GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable

Minimum Order Quantity : 2km Price : 100-500usd/km
Packaging Details : wood drum
Place of Origin: China Brand Name: Jiqian
Model Number: GYFTZY

Detail Information
Fiber Model: G652D Or G657A Waterproof: Yes
Suitable Temperature: -40℃ +70℃ Useful: FTTX
Type: GYFTC8S53 Structure: Layer-stranding Cable
Network: FTTH FTTX Characteristic: LSZH Sheath,flame Retardant
High Light:

Unarmored G652D Fiber Optic Cable

,

Flame Retardant Fiber Optic Cable

,

Fiber Optic Cable 4 Core

Product Description

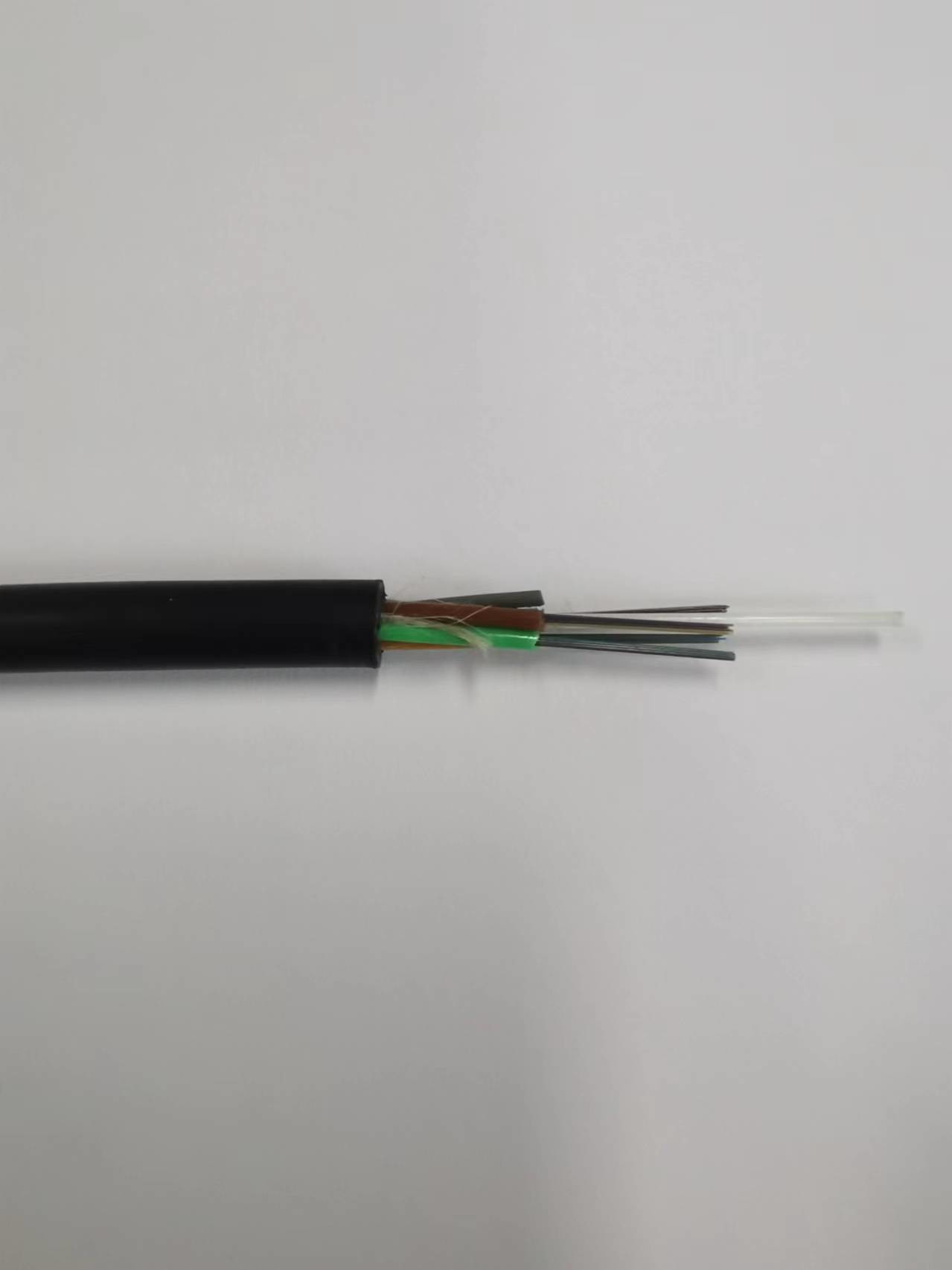

GYFTZY Metal free unarmored G652D flame retardant LSZH jacketed 4 core single mode fiber optic cable


GYFTZY fiber optic cable - completed with LSZH sheath

Application

1. used for power transmission system,
2. excessive thunder areas and high electromagnetic interface.
3. used in high-voltage area for long distance aerial or duct application

GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 0
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 1

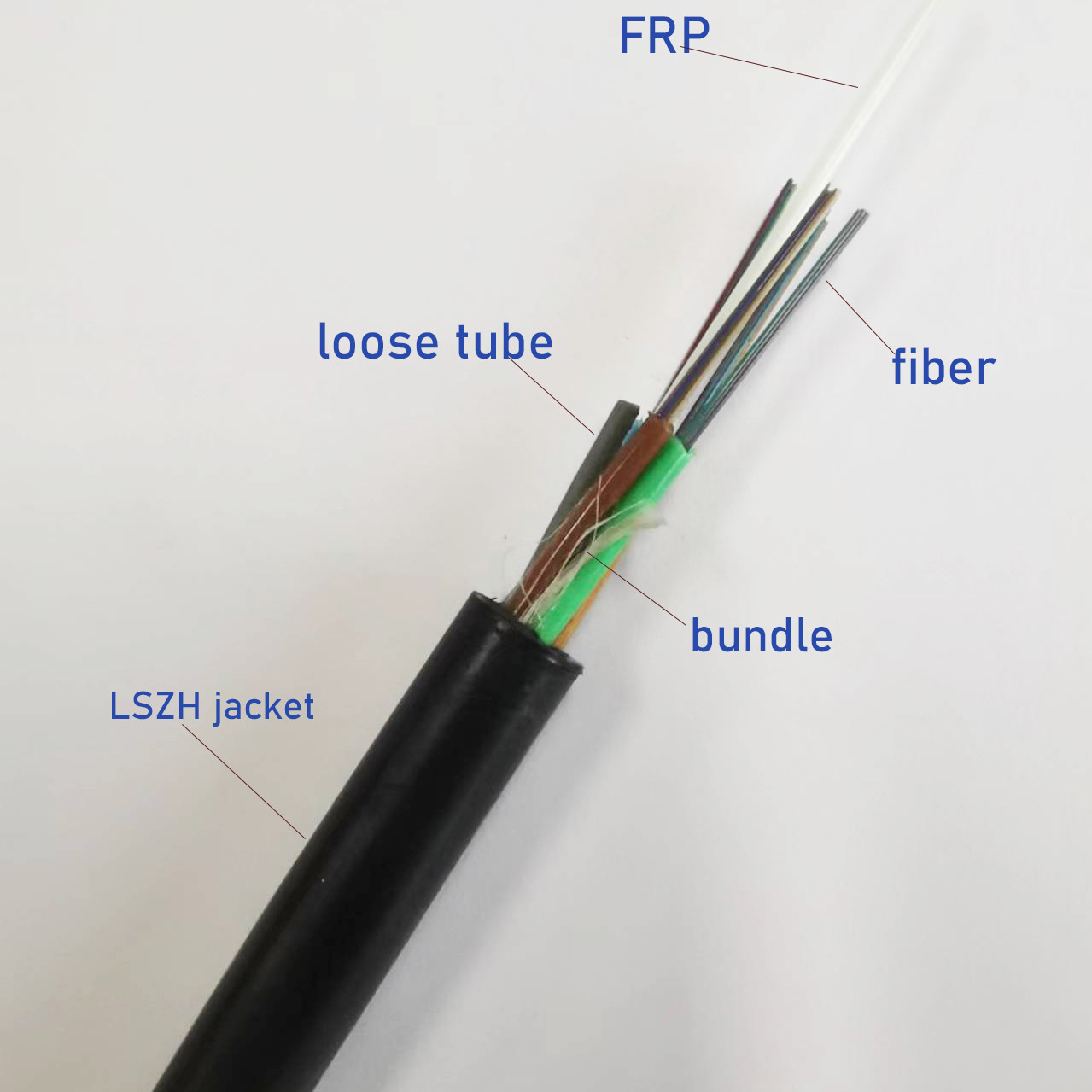

Product Construction:
1. Fiber:
2-288 fiber
Multi-loose tube gel-filled
2. Central Strength Member:
Fiberglass reinforced Platic (FRP).
3. Outer Jacket:
LSZH material for flame retardant


Features:
1. Excellent mechanical and temperature performance.
2. 100% core filling water prevent cable jelly to ensure the cable watertight.
3. Crush resistance and flexibility.
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 2
Specification
Product Name
GYFTZY Metal free unarmored G652D flame retardant LSZH jacketed 4 core single mode fiber optic cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
LSZH sheath + FRP strengthen
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead,aerial,duct,high-voltage area, thunder areas and high electromagnetic interface
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 3
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 4
Packing & Delivery
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 5
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 6
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 7
GYFTZY Metal Free Unarmored G652D Flame Retardant LSZH Jacketed 4 Core Single Mode Fiber Optic Cable 8
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
