Home ProductsOutdoor Fiber Optic CableCoal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable
Contact Now

Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: MGTSV

Detail Information
Fiber Count: 2-288Core Strength Member: Metal Reinforcement
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM Feature: Blue Color,flame Retardant Sheath,LSZH Outer Sheath
High Light:

Mine Armored Fibre Optic Cable

,

144 Core Armored Fibre Optic Cable

,

Fireproof Armored Fibre Optic Cable

Product Description

Product Description

Coal mine Armored fibre optic cable manufacturer 12 24 48 96 144 core LSZH jacketed fireproof optical fiber mining cable



Application

1. Mine
2. tunnel
3. pipeline

Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 0
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 1
Coal mine Armored fibre optic cable manufacturer 12 24 48 96 144 core LSZH jacketed fireproof optical fiber mining cable

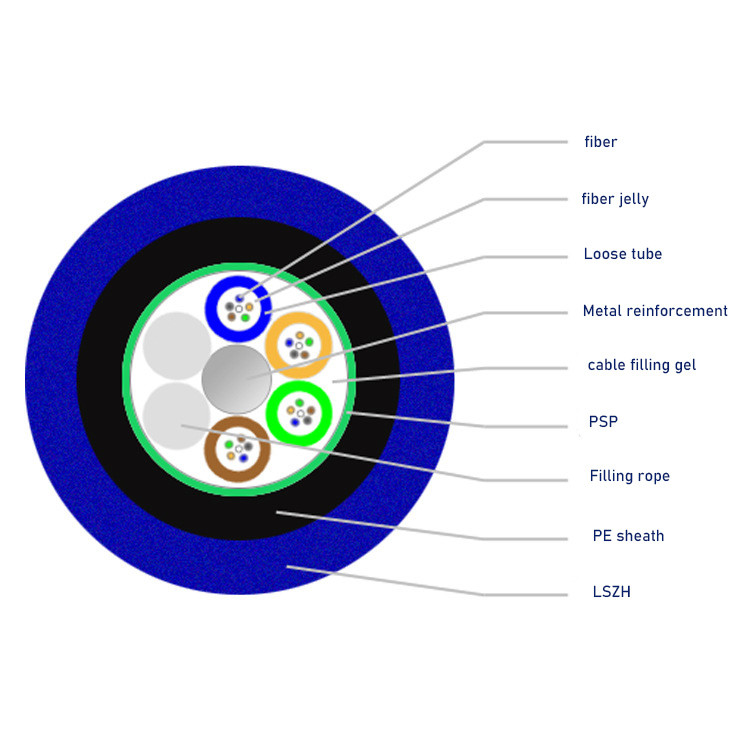

Product description:

* Double sheath structure with good compression resistance
* Low smoke and halogen free outer sheath with flame retardant effect
Product features:
1. Mine Cable 48 core fiber optic cable is a special application of optical fiber and cable in the field of communications, which
is a kind of optical fiber cable that is used in the coal mine industry and is used in the mine, gold mine and iron mine.
2. mine cable 48 core fiber optic cable not only inherited all the performance of optical fiber and cable, but also because of the
special requirements of the coal industry and added many special properties
Product Name
Coal mine Armored fibre optic cable manufacturer 12 24 48 96 144 core LSZH jacketed fireproof optical fiber mining cable
Fiber Count
4-288 Fibers,can be customized according to customers' requirement
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
LSZH
Application
Mine tunnel pipeline
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 2
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 3

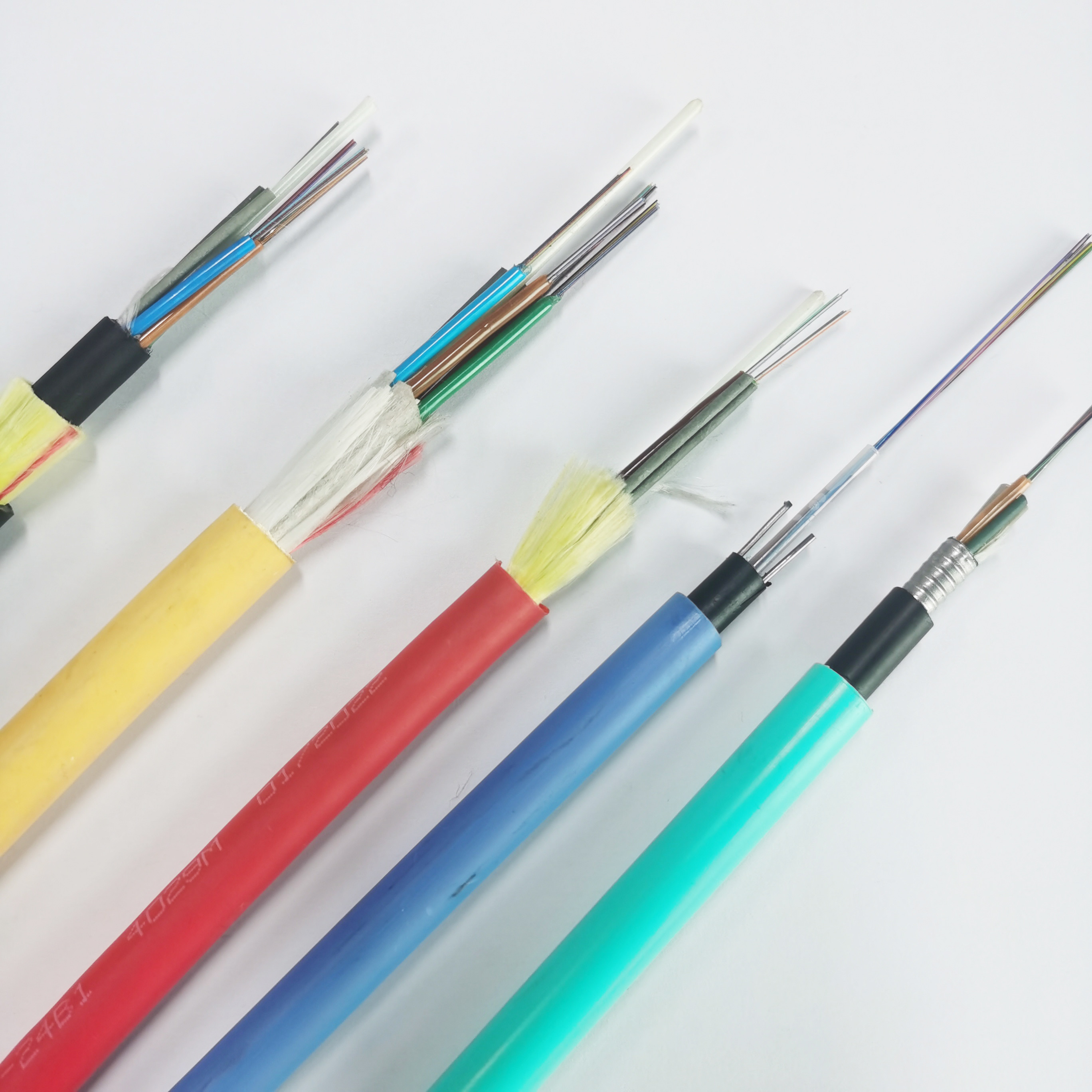

Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

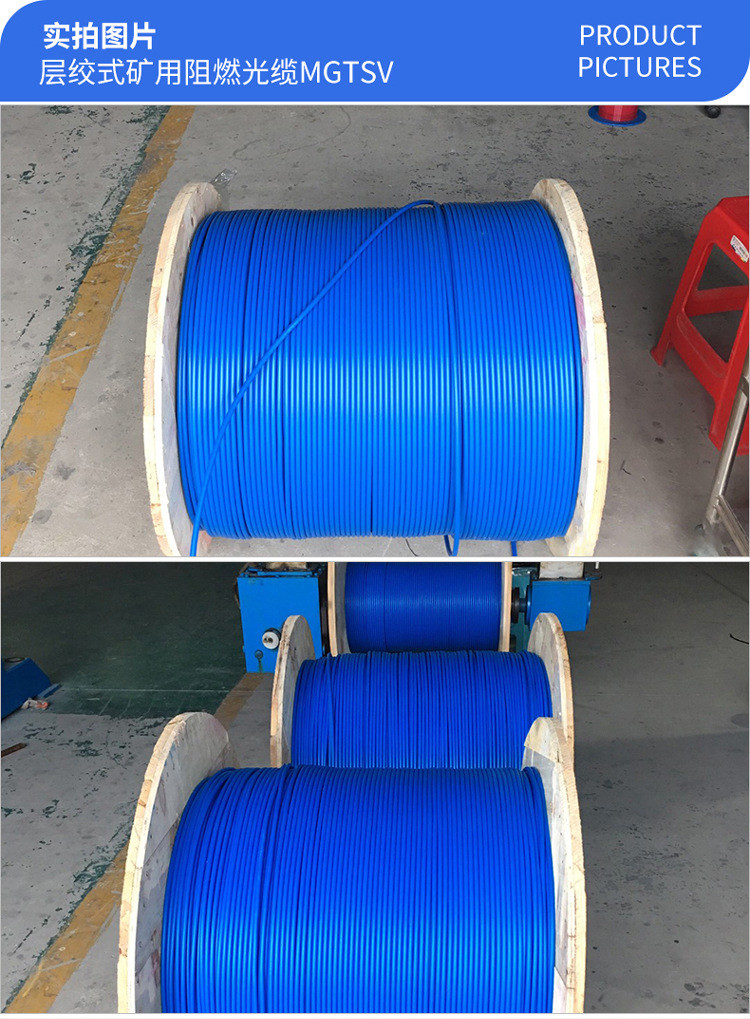

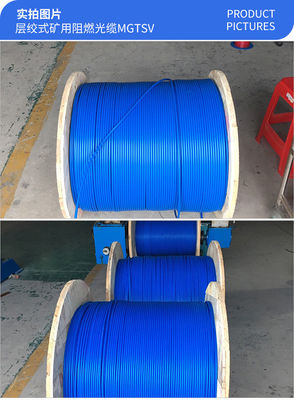

Packing & Delivery
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 4
Coal Mine Armored Fibre Optic Cable 12 24 48 96 144 Core LSZH Jacketed Fireproof Optical Fiber Mining Cable 5
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
