4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member

1 Kilometer
MOQ
4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GYTY
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request
Fiber Count: 2-288 Cores
Length: As Required
Color: Customized
Central Strength Member: Steel Wire
Jacket: PE,MDPE,LSZH,PVC
Package: Wooden Drum/Customized
Application: Duct/Aerial
Oem: Available
Highlight:

GYTY Outdoor Fiber Optic Cable

,

Stranded Outdoor Fiber Optic Cable

,

PE Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: JQ/OEM
Certification: CE/ISO9001
Model Number: GYTY
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Product Description:

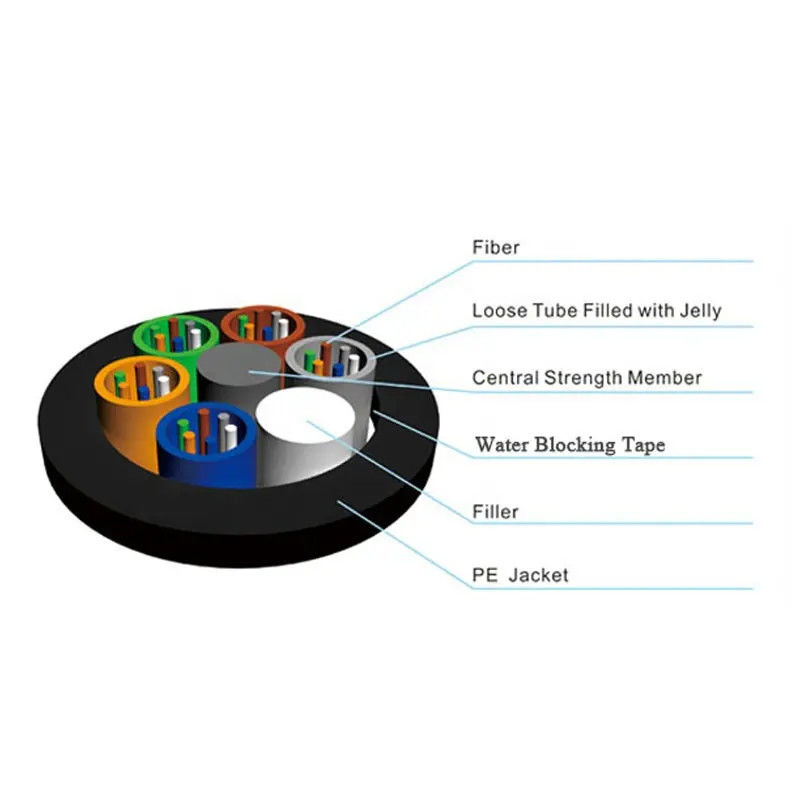

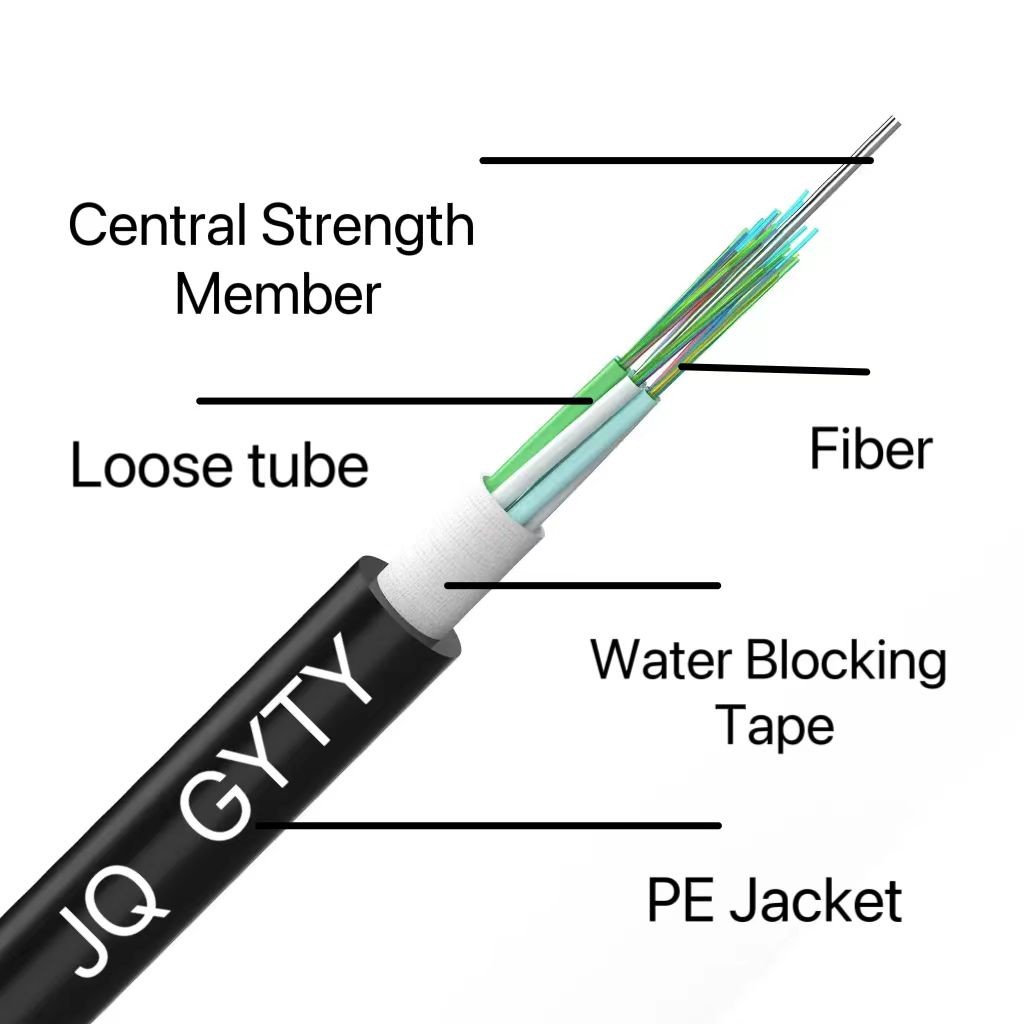

GYTY(Metal reinforced member, loose sheath stranding, polyethylene sheath communication outdoor optical cable) Optical fiber is constructed by placing single mode or multi-mode optical fiber in a loose sleeve made of high modulus plastic filled with waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, the metal reinforcement core is also extruded with a layer of polyethylene (PE). The loose sleeve (and the filling rope) is twisted around the central strengthening core to synthesize a compact and circular cable core. The gap in the cable core is filled with water blocking compounds, and the polyethylene sheath is formed into a cable.

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 0

Characteristic:

■ Precisely controlling the residual length of the fiber ensures that the cable has good tensile properties and temperature characteristics.

■ loose tube material has good hydrolysis resistance, and the tube is filled with special oil to protect the optical fiber.

■ The smooth outer sheath allows the cable to have a smaller coefficient of friction during installation.

■ PE sheath has good anti-solar radiation performance.

The following measures are adopted to ensure the waterproof performance of the cable:
···The loose tube is filled with special waterproof compound. ···Complete cable core filling.



Applicatioon:
■Adapted to Outdoor distribution.
■Long distance and local area net work communication.
■Suitable for aerial and pipeline laying method.
4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 1

Specification:

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 2

Optical Characteristics:

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 3

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 44/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 5

WHY CHOOSE US:

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 6

Certification:

4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 7

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.


4/6/8/12/24 Core single-mode multi-mode optical fiber GYTY stranded loose tube steel wire strength member 8
