Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTC8S |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Jacket: | PE,MDPE,LSZH,PVC |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | Central Strength Member: | FRP |
| High Light: | Outdoor Figure 8 Armored Cable,single mode Figure 8 Armored Cable |
||
Product Description
Product Description:

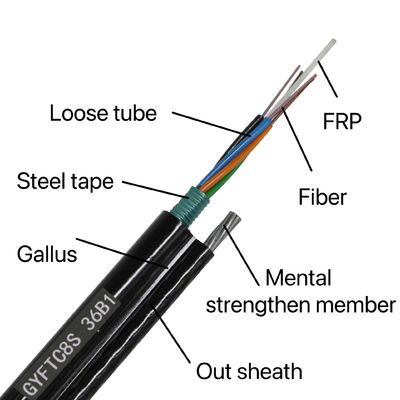

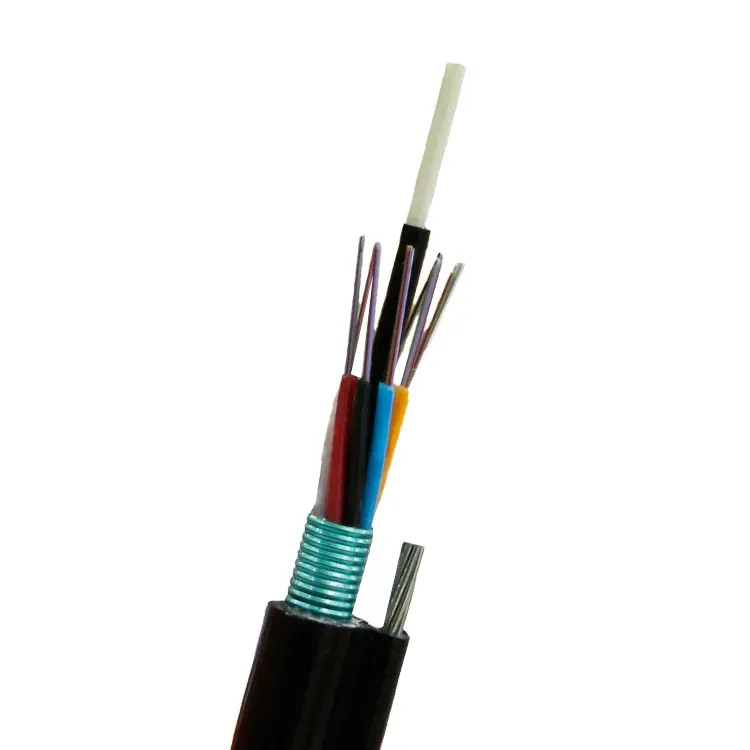

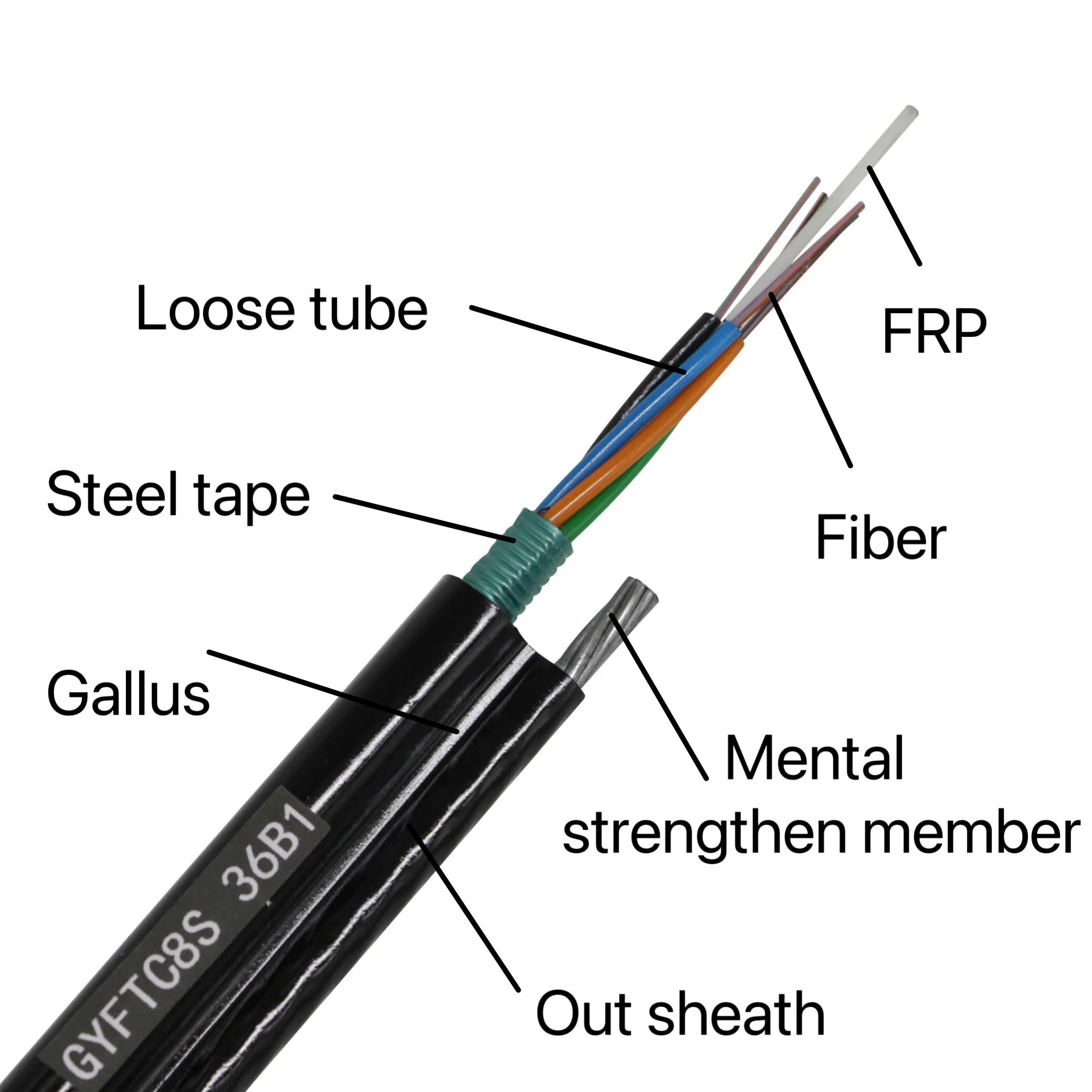

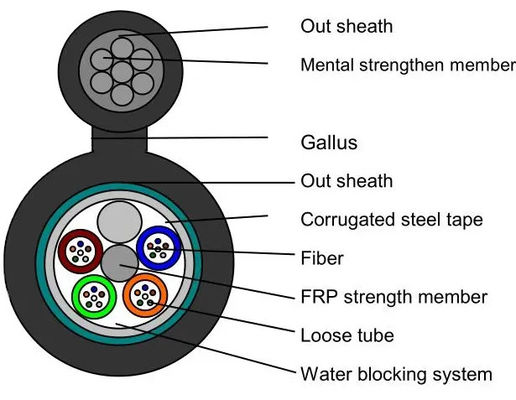

The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Steel tape (SPS) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Features:
■ Low dispersion and attenuation.
■ Proper design, precise control for fiber excess length and distinct stranding process.
■ render the cable excellent mechanical and environmental properties.
■ With small cable diameter, light cable weight, easily to lay.
■ The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance.
Application:
* Long-distance backbone network
* Urban ring network
* Access Network, FTTX
* Relay between communication machine rooms
* Building cable in integrated wiring
Specification:
| item | value |
| Model Number | GYFTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
