Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S
Contact Now

Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYTC8S

Detail Information
Fiber Count: 12-144Core Strength Member: Steel Strand
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM
Highlight:

Armored fiber optical cable

,

figure 8 optic fiber optical cable

,

GYTC8S fiber optical cable

Product Description

Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S



Description

1. The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound.

2. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

3. This kind of cable is specifically applied for self-supporting aerial installation.
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 0
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 1

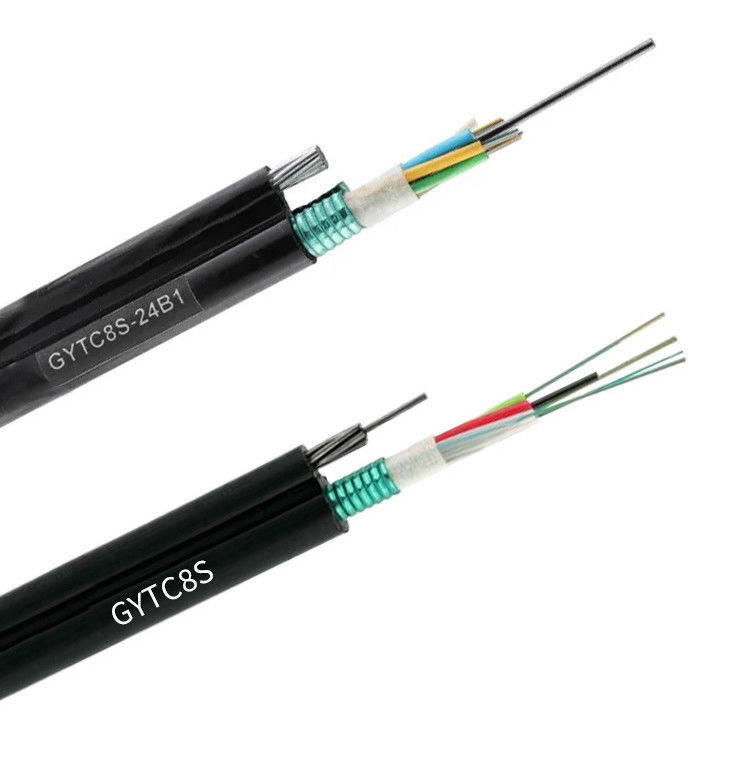

GYTC8S


Application:
1.Adopted to Outdoor distribution.
2.Suitable for aerial (self- supporting), decrease cost.
3.Long distance and local area network communication.

Specification
Product Name
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S
Fiber Count
12,24,48,72,96,144 Fibers,can be customized according to customers' requirement
Construction
steel wire rope for strengthening + Center beam tube for fibers (no armour srtucture)
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
overhead, aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
steel wire rope
Color
usually black,can be customized
OEM
YES
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 2
Related Products
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 3
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 4
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 5
Jiqian overhead outdoor 48 core fig 8 fiber optical cable Self Supporting Armored figure 8 fiber optic cable GYTC8S 6

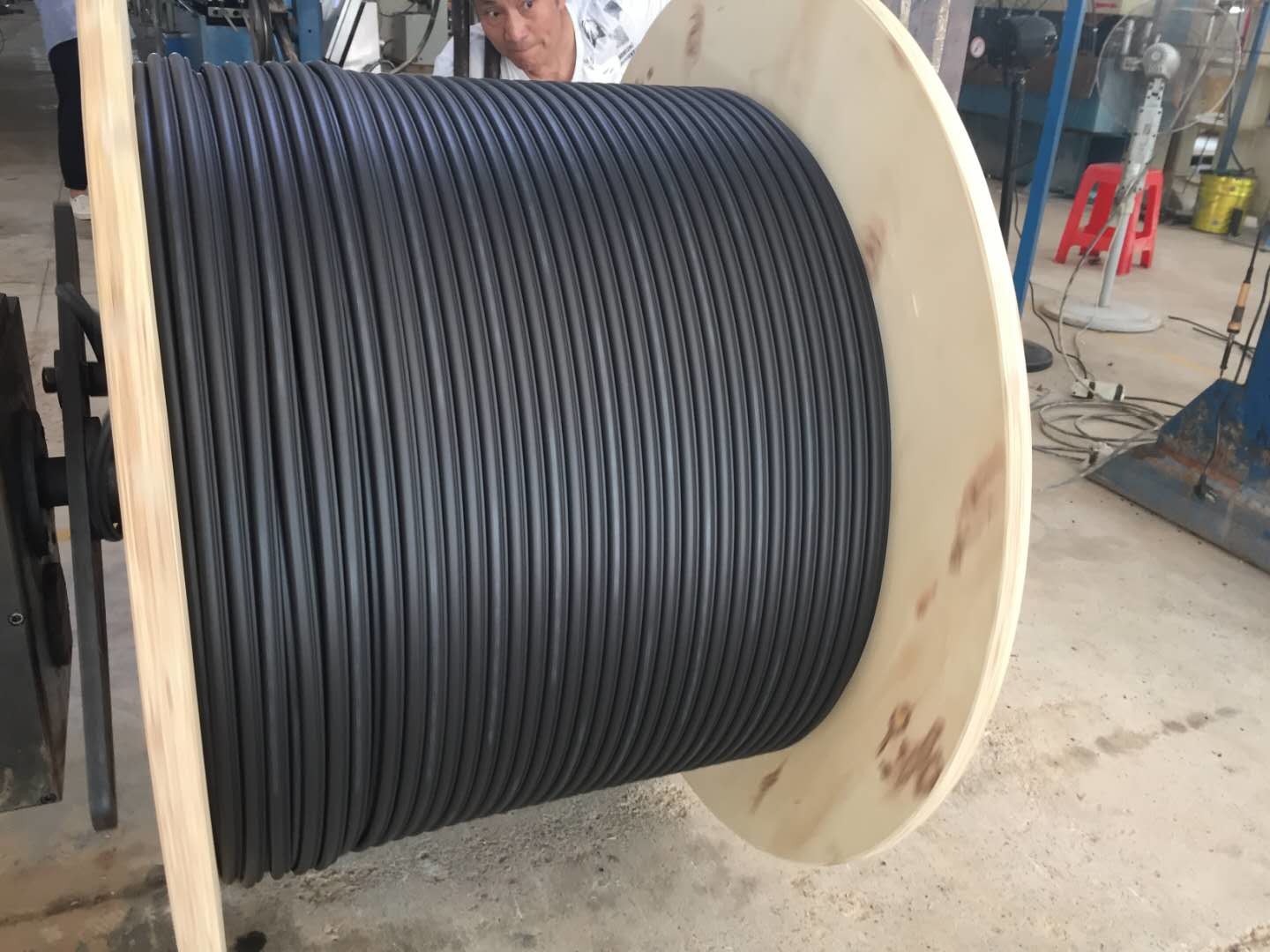

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
