2-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Brand Name: JQ/OEM Certification: CE/ISO9001

Detail Information

Place Of Origin: Guangdong, China Model Number: MGXTSV
Type: Outdoor Fiber Optic Cable Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request Length: As Required
Color: Customized Loose Tube: PBT
Jacket: LSZH PE MDPEor As Your Request Tube: Central Loose Tube
Package: Wooden Drum/Customized Application: Outdoor Aerial And Duct
Oem: Available
High Light:

Central Tube Mine Optical Fiber Cable

,

2-24 Mine Optical Fiber Cable

,

Flame Retardant Mine Optical Fiber Cable

Product Description

Product Description:

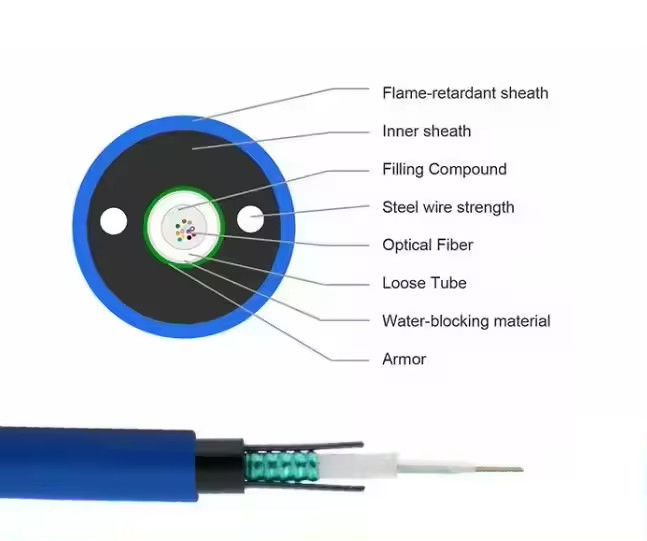

Unitube Mining Falme-retardant Cable:
The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are
filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally.
Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and
watertight. Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed
with a flame-retardant sheath.

2-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV 0

Characteristics:

The loose tube is located in the center of optical physics, operation is convenient.

The loose tube is filled with special ointment for critical protection of the optical fiber.

Two parallel round steel wire tension resistance and resistance to lateral pressure.

Whole section block water structure,ensure good resistance water moisture performance.

Has a good flame retardant performance.

Cable diameter is small,light weight,bending performance.

Application:

Usable in Duct / Aerial.

Suitable for communication between bureaus, metropolitan network, access network .
■Especially suitable for the situation where high-density fibers is expected.
■Suitable for shafts, tunnels, mines.
Specification:
No. of cable MGXTSV-12B1.3
Fiber Model G.652D
Strength Member Material Steel wires
Diameter(±0.05)mm 1MM
Loose Tube Material PBT
Diameter(±0.06)mm 1.85
Thickness(±0.03)mm 0.35
The Max.Core NO./Tube 12 or 24
Outer Sheath Material PE
Cable Diameter(±0.2)mm 8MM
Cable Weight(±5)kg/km 78
Min. bending radius Without Tension 10.0×Cable-φ
Under Maximum Tension 20.0×Cable-φ
Temperature range Installation -20~+60
(℃) Transport&Storage -40~+70
  Operation -40~+70

Optical Characteristics:
Fiber Type   G.652 G.655 50/125^m 62.5/125^m
Attenuation 850 nm     <3.0 dB/km <3.3 dB/km
(+20X) 1300 nm     <1.0 dB/km <1.0 dB/km
  1310 nm <0.34 dB/km <0.40 dB/km
  1550 nm <0.21 dB/km <0.23 dB/km
Bandwidth 850 nm     >500 MHz-km >200 Mhz-km
  1300 nm     >500 MHz-km >500 Mhz-km
Numerical Aperture       0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc   <1260 nm <1450 nm
Technical parameters:
cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
(MM) (KG) allowable Crush load(N/100mm)
    Short term Long term Short term long Term short term long Term
2-36 12.8 170 3000 1000 3000 1000 20D 10D
38-72 14.2 212 3000 1000 3000 1000 20D 10D
74-96 15.7 245 3000 1000 3000 1000 20D 10D
98-120 17.3 289 3000 1000 3000 1000 20D 10D
122-144 18.8 328 3000 1000 3000 1000 20D 10D

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

2-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV 12-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV 2

WHY CHOOSE US:

2-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV 3

Certification:

2-24 Central Tube Flame Retardant Mine Optical Fiber Cable MGXTSV 4

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
