GYDTA stranded layer fiber ribbon optical cable with Aluminum Tape

Contact Now

GYDTA stranded layer fiber ribbon optical cable with Aluminum Tape

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	GYDTA

Detail Information
Model Number:	GYDTA	Type:	Outdoor Fiber Optic Cable
Place Of Origin:	Guangdong, China	Number Of Conductors:	≥ 10
Fiber Type:	G652D Single Mode Or As Your Request	Length:	As Required
Color:	Customized	Cable Structure:	Multi-Loose Tube Al Tape Armor
Central Strength Member:	Steel Wire	Armoured:	Al Tape
Package:	Wooden Drum/Customized	Application:	Long Distance Communication, LAN
Oem:	Available
Highlight:	fiber ribbon optical cable , GYDTA stranded fiber ribbon optical cable , Aluminum Tape ribbon optical cable

Product Description

Product Description:

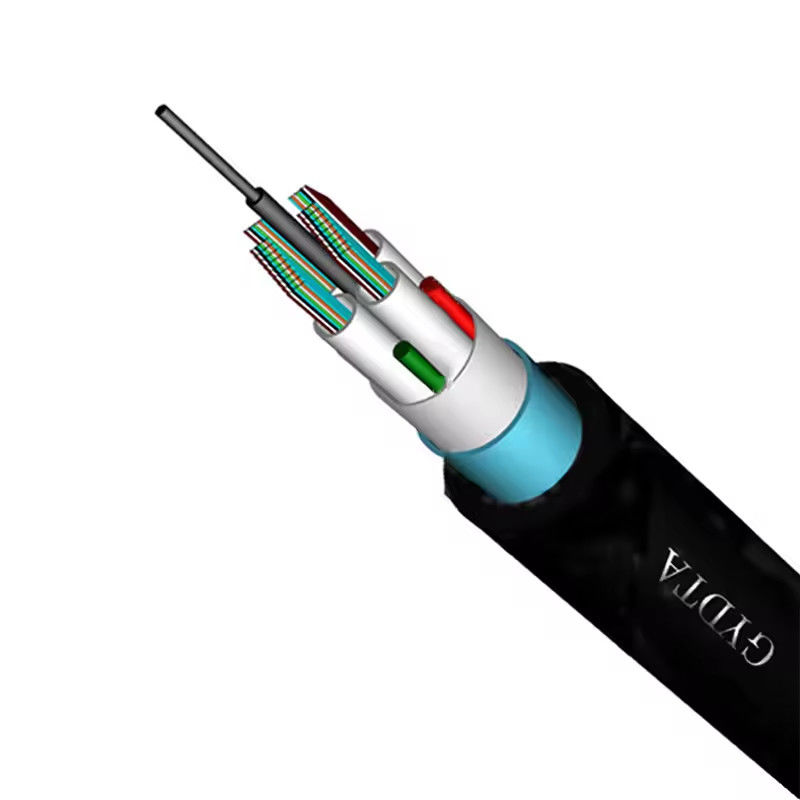

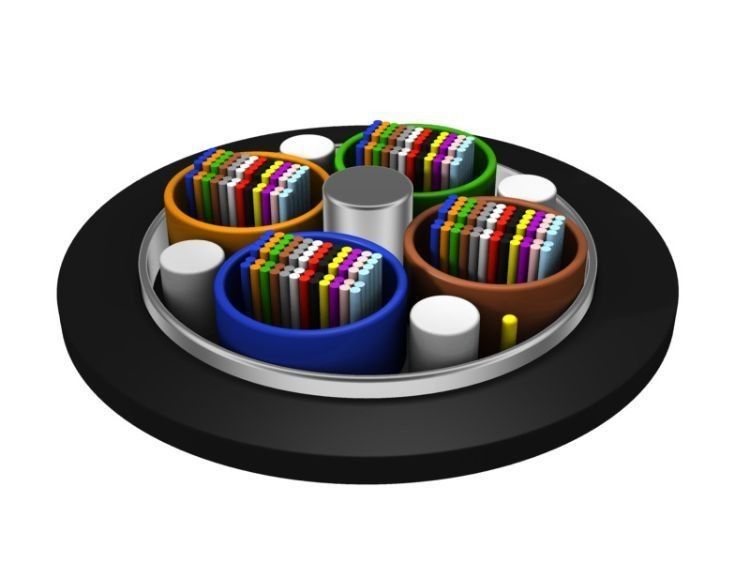

GYDTA cables are constructed by placing single - or multi-mode fibers in loose tubes made of high-modulus plastic filled with water-blocking compounds. The center of the cable core is a metal reinforcement core. For some fiber optic cables with a number of cores, a layer of polyethylene should be squeezed outside the metal reinforcement core, and the loose sleeve (and filling rope) should be twisted around the center reinforcement core to form a compact and circular cable core. The gap in the cable core is filled with water-blocking filler. The cable is formed by a polyethylene sheath after two sided aluminum coated tape is longitudinally wrapped.

GYDTA stranded layer fiber ribbon optical cable with Aluminum Tape 0

Characteristics:

● Good mechanical and temperature performance

● High strength loose tube that is hydrolysis resistant

● Special tube filling compound ensure a critical protection of fiber

● PE sheath protects cable from ultraviolet radiation

● Good crush ability,applies for duct and directly buried application

● Single steel wire as central strength member

● Special tube filling compound ensure a critical protection of fiber

● Fully filled in the cable

● Double APL layers prevent the moisture

● Good water-blocking tape prevent the sinking vertically

Application:

● Aerial & conduit/duct application

Specification:

item	value
Model Number	GYDTA
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	steel wire
Loose tube	Jelly filled
Loose Tube Material	PBT
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Al Tape armor
Color	Black or as your need
Package	Plywood Reel/customized
Installation	aerial, in duct
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001 /ANATEL

Structure and Technical Specifications:

Fiber	Nominal	Nominal	Max Fiber	Max No.	Allowable Tensile		Allowable Crush
Count	Diameter	Weight	Per Tube	of(Tubes+	Load(N)		Resistance(N/100mm)
	(mm)	(kg/km)		fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19	325	12	24(2 layers)	2500	600	1000	300
