GYXTW Outdoor Aerial Fiber Optic Cable Duct Overhead 2 24 Core high Quality
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
---|---|---|---|
Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 8000 kilometers per month |
Place of Origin: | Guangdong,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | CE/ISO9001 | Model Number: | GYTZS |
Detail Information |
|||
Model Number: | GYTZS | Type: | Outdoor Fiber Optic Cable |
---|---|---|---|
Place Of Origin: | Guangdong, China | Number Of Conductors: | ≥ 10 |
Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
Color: | Customized | Cable Structure: | Multi-Loose Tube Steel Tape Armor |
Central Strength Member: | Steel Wire | Armoured: | Steel Tape |
Package: | Wooden Drum/Customized | Application: | Aerial, In Duct |
Oem: | Available | ||
Highlight: | Jacket Outdoor Armored Fiber Optic Cable,LSZH Outdoor Armored Fiber Optic Cable |
Product Description
Product Description:

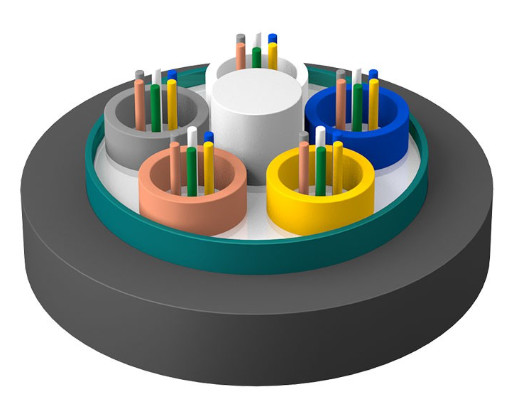

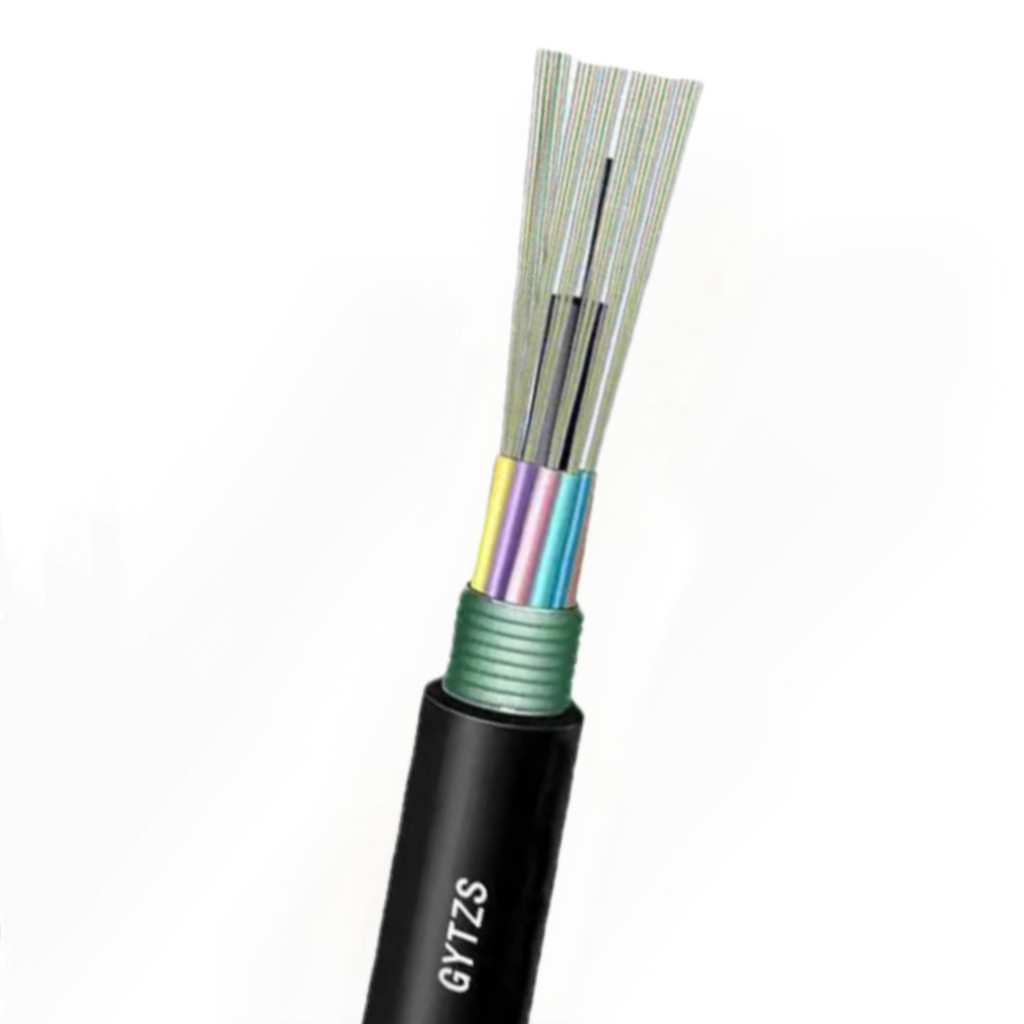

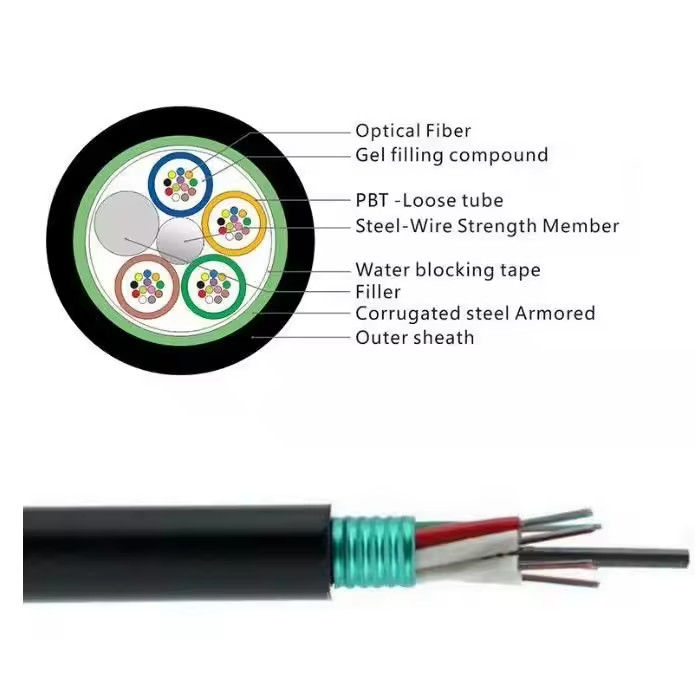

The GYTZS cable is constructed by placing 250µm of fiber in a loose tube made of a high modulus material, which is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene (PE) needs to be squeezed on the outside of the metal reinforcement core. The loose sleeve and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core, and the gap in the cable core is filled with water-blocking filler. Two sided coated plastic steel tape (PSP) longitudinally wrapped and extruded flame retardant sheath to form a cable.
Characteristics:
• Good mechanical properties and temperature characteristics.
• The loose tube material itself has good hydrolysis resistance and high strength.
• The tube is filled with special oil paste, which provides critical protection for the optical fiber.
• Specially designed tight cable structure, effectively prevent sleeve retraction.
• Good compression resistance and flexibility.
• Special sheath with excellent flame retardant performance.
Application:
■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial ,in duct.
■Suitable for long distance, LAN communication.
Specification:
item | value |
Model Number | GYZTS |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Central strength member | Steel wire |
Armoured | Steel tape |
Outer Sheath | LZSH |
Cable Structure | Multi-Loose Tube Steel Tape armor |
Color | Black or as your need |
Installation | aerial, in duct |
Certification | CE/ROHS/ISO9001 /ANATEL |
Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
(mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
