OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTY |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Multi-Loose Tube None Armor |
| Tube: | Multi-Loose Tube | Central Strength Member: | FRP |
| Outer Sheath: | PE Or As Your Request | Package: | Wooden Drum/Customized |
| Application: | Direct Buried/Duct/Aerial | Oem: | Available |
| High Light: | FRP fiber optic cables,24 cores fiber optic cables |
||
Product Description
Product Description:

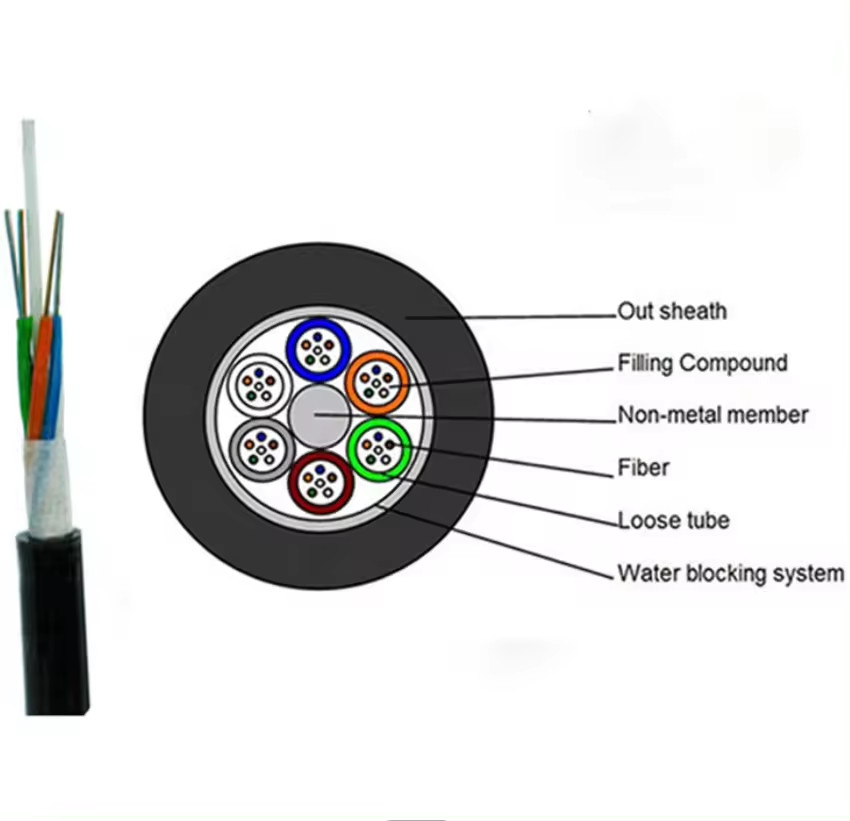

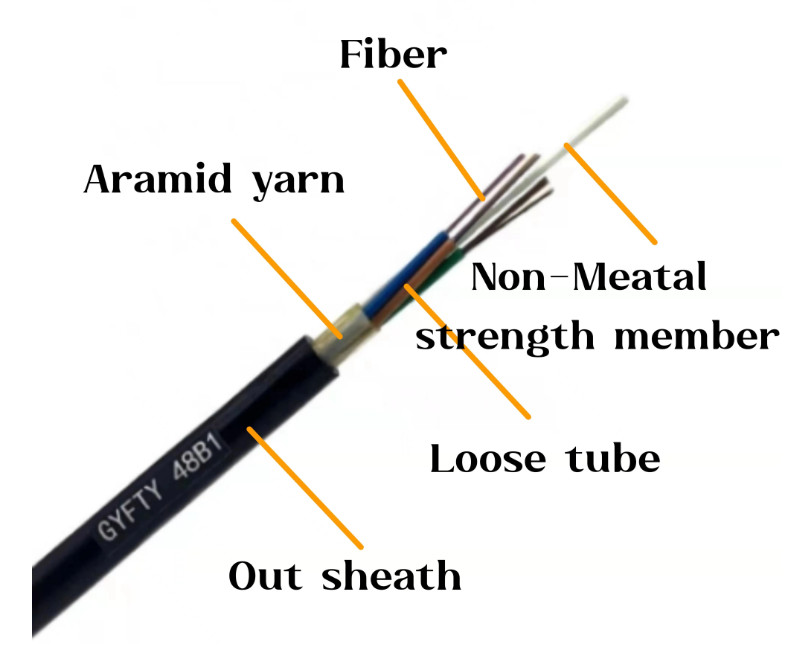

The structure of GYFTY is to sheath 250μm fiber into a high modulus loose tube (PBT). The tubes are filled with a water resistance filling compound. A fiber reinforced polymer wire (FPR), sometimes sheathed with polyethylene (PE) for high fiber count cable, locates in the center of cable as a strength member. PBT tubes (and fillers) are stranded around the strength member into acompact and round shape. The gap between the tubes is filled with water blocking compounds. Then the cable is completed with a PE heath.
Characteristics:
■ Good mechanical properties and temperature characteristics.
■ The loose tube material itself has good hydrolysis resistance and high strength.
■ The tube is filled with special oil paste to protect the optical fiber.
■ Good compression resistance and flexibility.
The following measures are used to ensure water resistance of GYFTY non-armoured cable: Single non-metal core reinforcement. The loose tube is filled with special waterproof compound. Complete cable core filling.
Application:
■Adapted to Outdoor distribution.
■Long distance and local area net work communication.
■Suitable for aerial .pipeline laying method.
■Suitable for wiring in many minefields and places with serious electromagnetic interference.
Specification:
| item | value |
| Model Number | GYFTY |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable Structure | Multi-Loose Tube None Armor |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Jacket Sheath | PE |
| Color | Black or as your need |

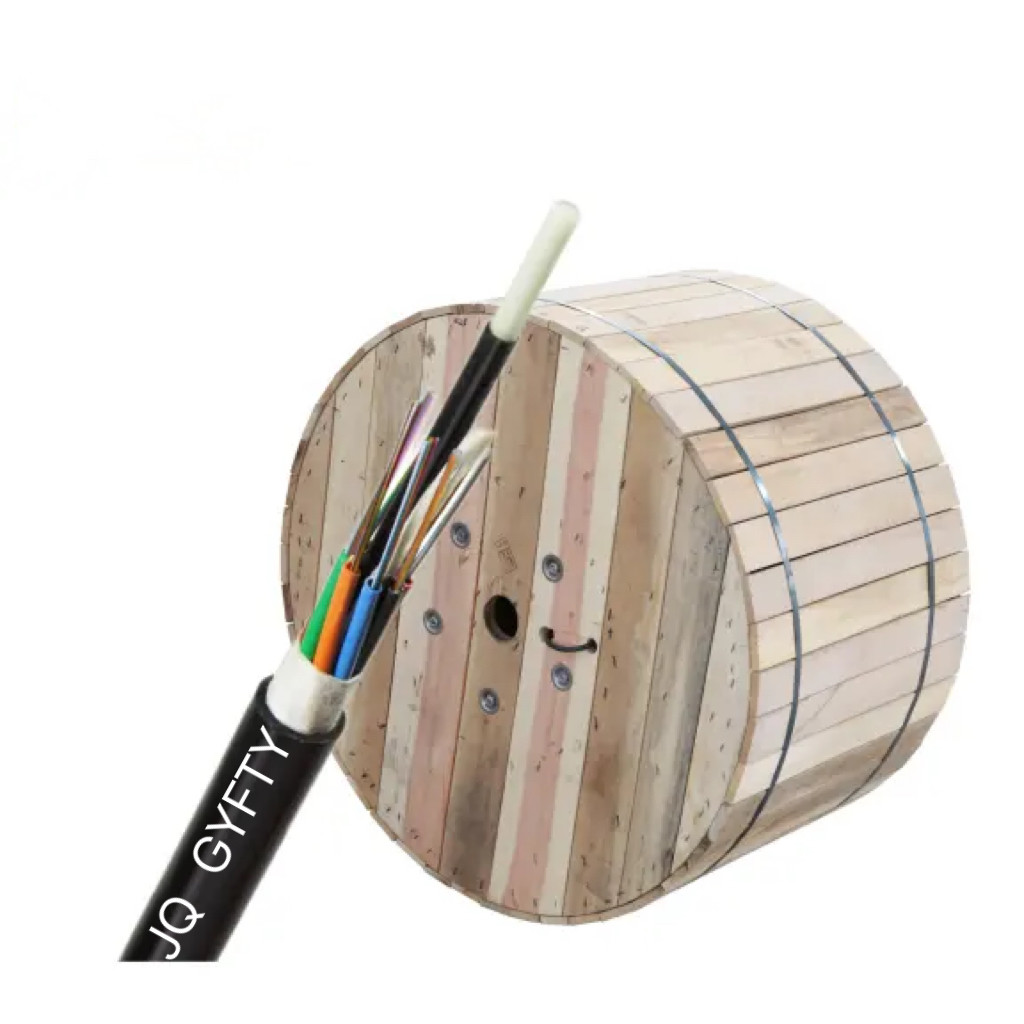

| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Structure and Technical Specifications:
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
