OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYXTW |
|---|---|---|---|
| Type: | Central Loose Tube | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube Material: | PBT |
| Outer Sheath: | PE Or As Your Request | Package: | Wooden Drum/Customized |
| Application: | Overhead, Duct | Oem: | Available |
| High Light: | 24 core Fiber Optic Cable,Fiber Optic Cable for Telecommunication |
||
Product Description
Product Description:

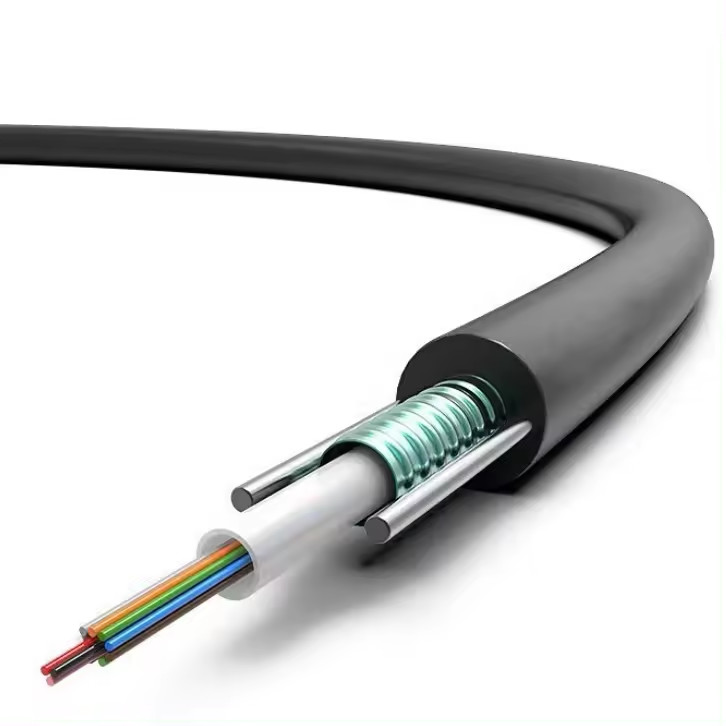

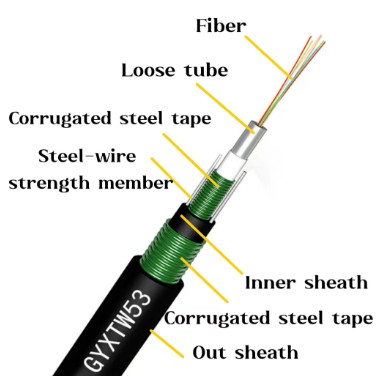

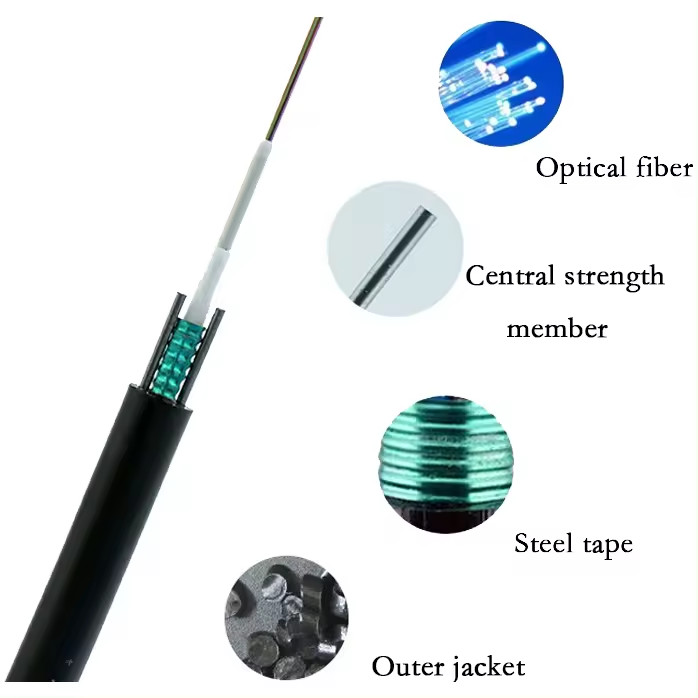

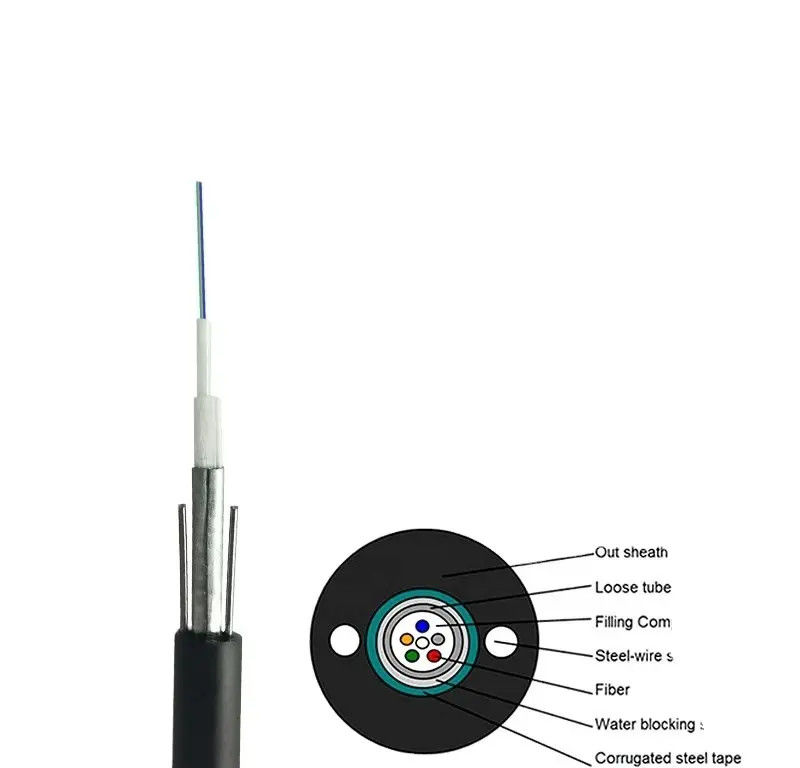

The center of the central tube type optical cable is a loose tube, and the outer part of the loose tube is longitudinally wrapped with plastic coated steel tape. Place two parallel steel wires on both sides of the steel strip to ensure tensile strength. The reinforcing components are located around the loose tube, and waterproof materials are filled between the PSP and the loose tube to ensure the compactness and waterproofing of the cable.
■ Central loose tube structure, gel filled inside.
Characteristics:
■ Small diameter, light weight, flexible structure.
■ Metal reinforcement, oil paste filling, steel tape armouring, loose nesting layer.
■ Single tube gel filled structure provides excellent fiber protection.

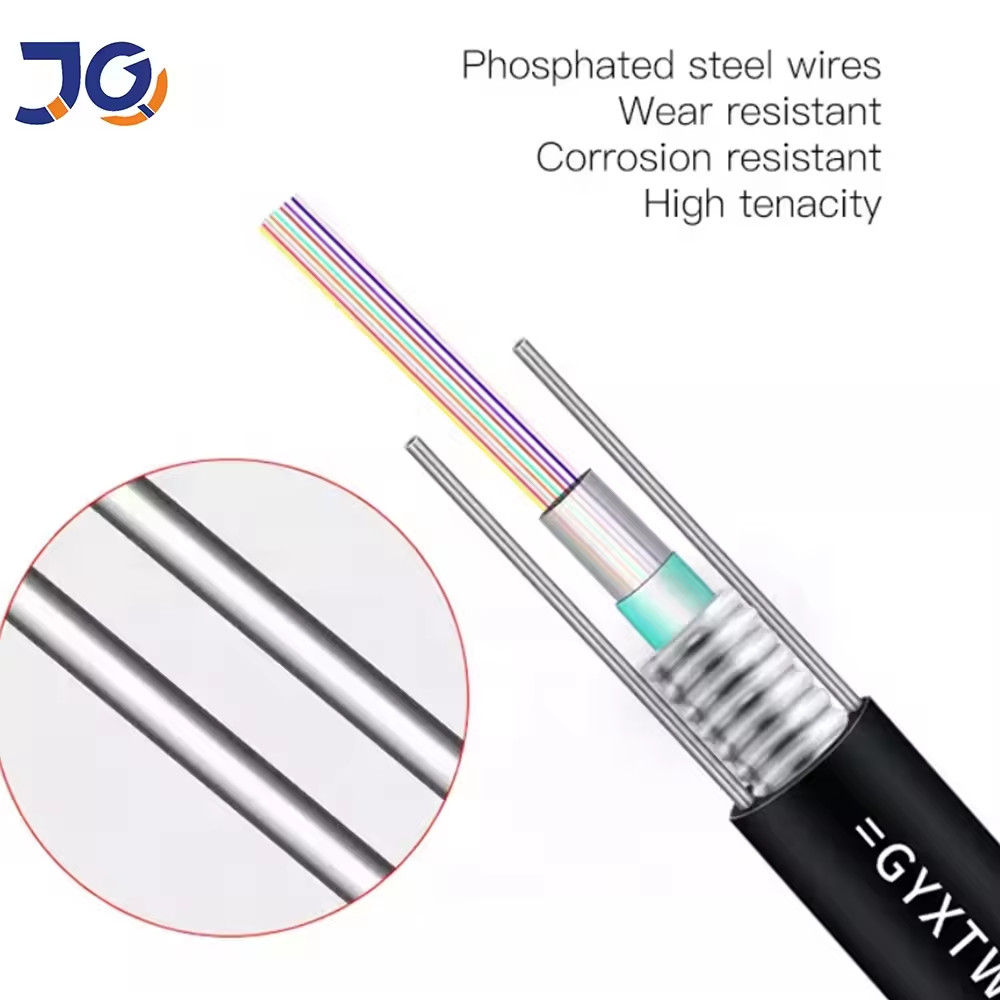

■ Two parallel steel wires ensure tensile strength.
■ Excellent mechanical and high temperature resistance.
■ Excellent water and moisture resistance.
■ Excellent resistance to ultraviolet radiation
■ Suitable for various construction environments, and has good environmental performance.
Application:
1. Suitable for outdoor distribution.
2. Suitable for overhead and pipeline laying methods.
3. Long-distance and LAN communication.
Specification:
| No. of cable | GYXTW-12B1.3 | |
| Fiber Model | G.652D | |
| Strength Member | Material | Steel wires |
| Diameter(±0.05)mm | 1MM | |
| Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.85 | |
| Thickness(±0.03)mm | 0.35 | |
| The Max.Core NO./Tube | 12 or 24 | |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 8MM | |
| Cable Weight(±5)kg/km | 78 | |
| Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ | |
| Temperature range | Installation | -20~+60 |
| (℃) | Transport&Storage | -40~+70 |
| Operation | -40~+70 | |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
