OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFXTY |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Tube: | Central Loose Tube |
| Loose Tube Material: | PBT | Outer Sheath: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Aerial Or Duct Or Direct Buried |
| Oem: | Available | ||
| High Light: | 12 core Outdoor Optic Cable,Single Mode Outdoor Optic Cable |
||
Product Description

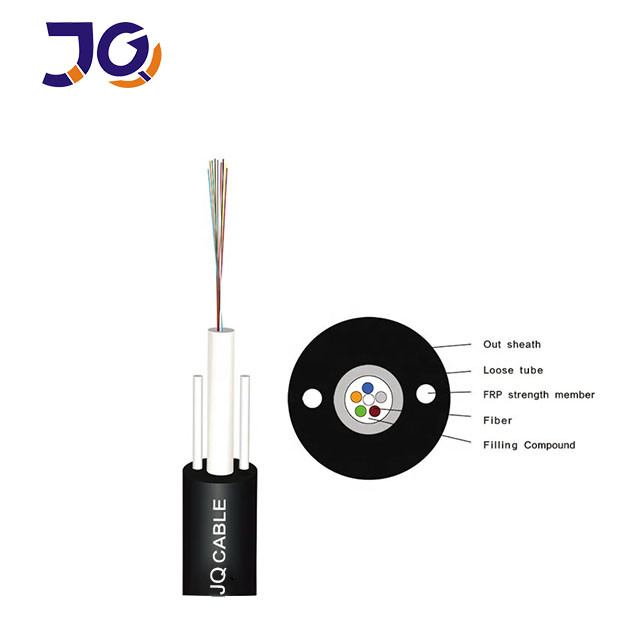

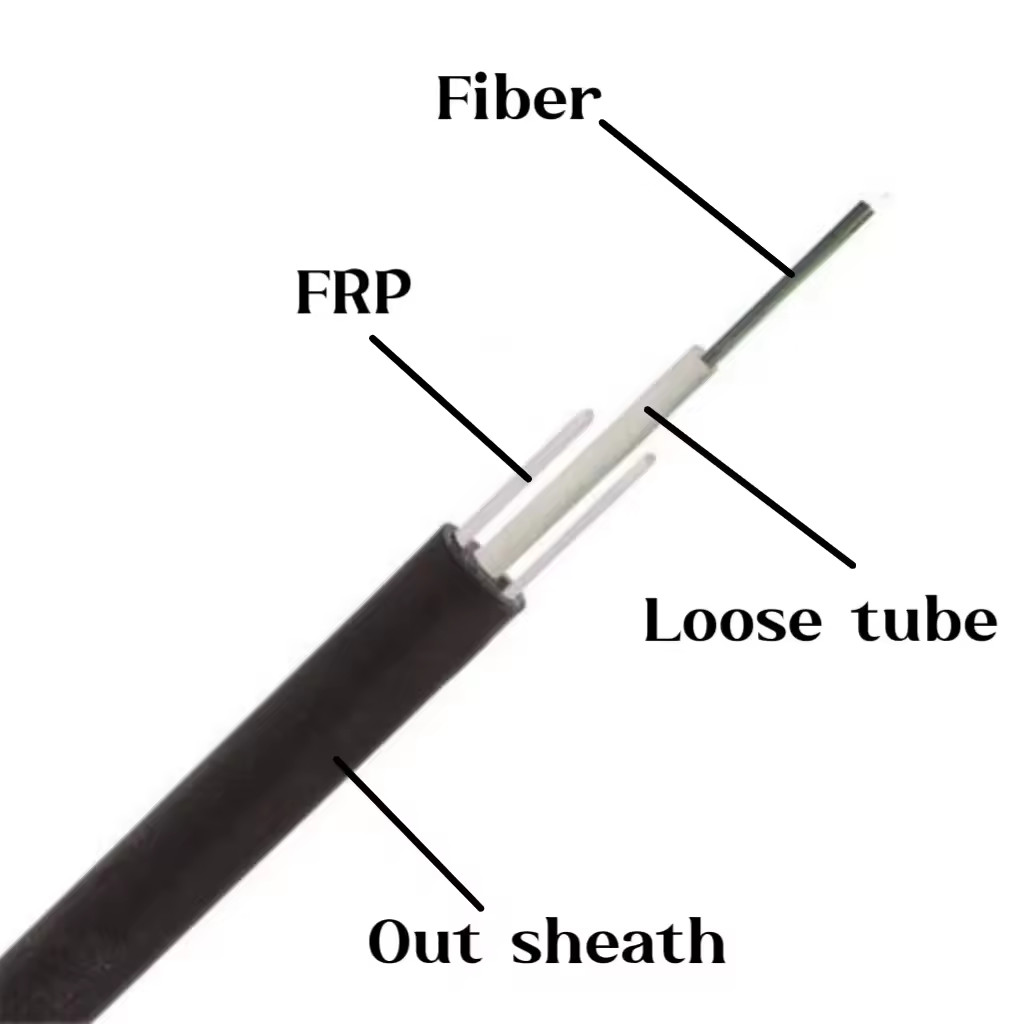

Product Description:
1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
2.The tubes are filled with a water-resistant filling compound.
3.Two parallel FRP strength member are placed at the two sides of jacket.
4.The cable is completed with a polyethylene (PE) sheath.
Characteristics:
Application:
Specification:
| Product name | GYFXTY |
| Type | Fiber Optic Cable |
| No. of Fiber: | 2-12core |
| Brand | JQ/OEM |
| Fiber Type | G652d |
| Fiber | single mode |
| Outer Sheath | PE /LSZH Jacket |
| Loose tube material | PBT |
| Strength member: Central | Steel Wire or FIberglass reinforced plastic (FRP) |
| Package | Wooden Drum |
| Operating temperature | -40~+70 |
| Filling compound in loose tube | Gel |
| Application | Aerial or Duct or direct buried |
| Certification | ISO9001/ ROHS/ CE/ FCC |
| 1310nm | ≤0.34dB |
| 1550nm | ≤0.21dB |
| Characteristic | Anti-electromagnetism |

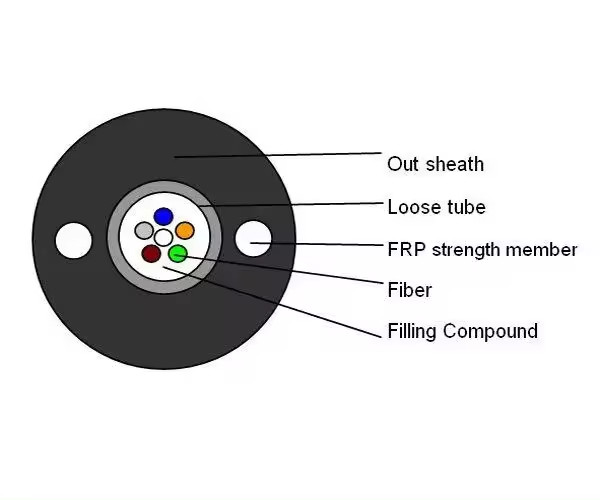

Structure and Technical Specifications:
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | Suitable temperature | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | |||||||
| Long term | Short term | long Term | short term | long Term | (℃) | ||||
| Short term | |||||||||
| 2 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
| 4 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
| 6 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
| 8 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
| 10 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
| 12 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D | 20 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
