JET 2-12 core outdoor optical fiber cable no mental manufacture supply

1 Kilometer
MOQ
JET 2-12 core outdoor optical fiber cable no mental manufacture supply
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: JET
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Number Of Conductors: ≥ 10
Fiber Type: G652D Single Mode Or As Your Request
Length: As Required
Color: Customized
Tube: Central Loose Tube
Loose Tube Material: PBT
Outer Sheath: PE Or As Your Request
Package: Wooden Drum/Customized
Application: Outdoor Overhead
Oem: Available
Highlight:

12 core outdoor optical fiber cable

,

PBT outdoor optical fiber cable

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: JQ
Certification: CE/ISO9001
Model Number: JET
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

Product Description:

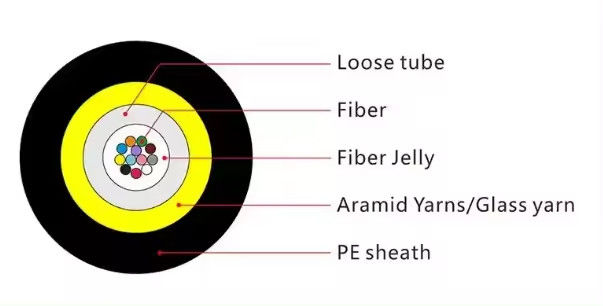

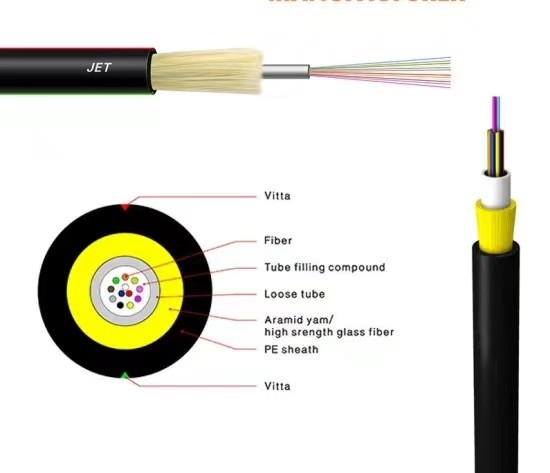

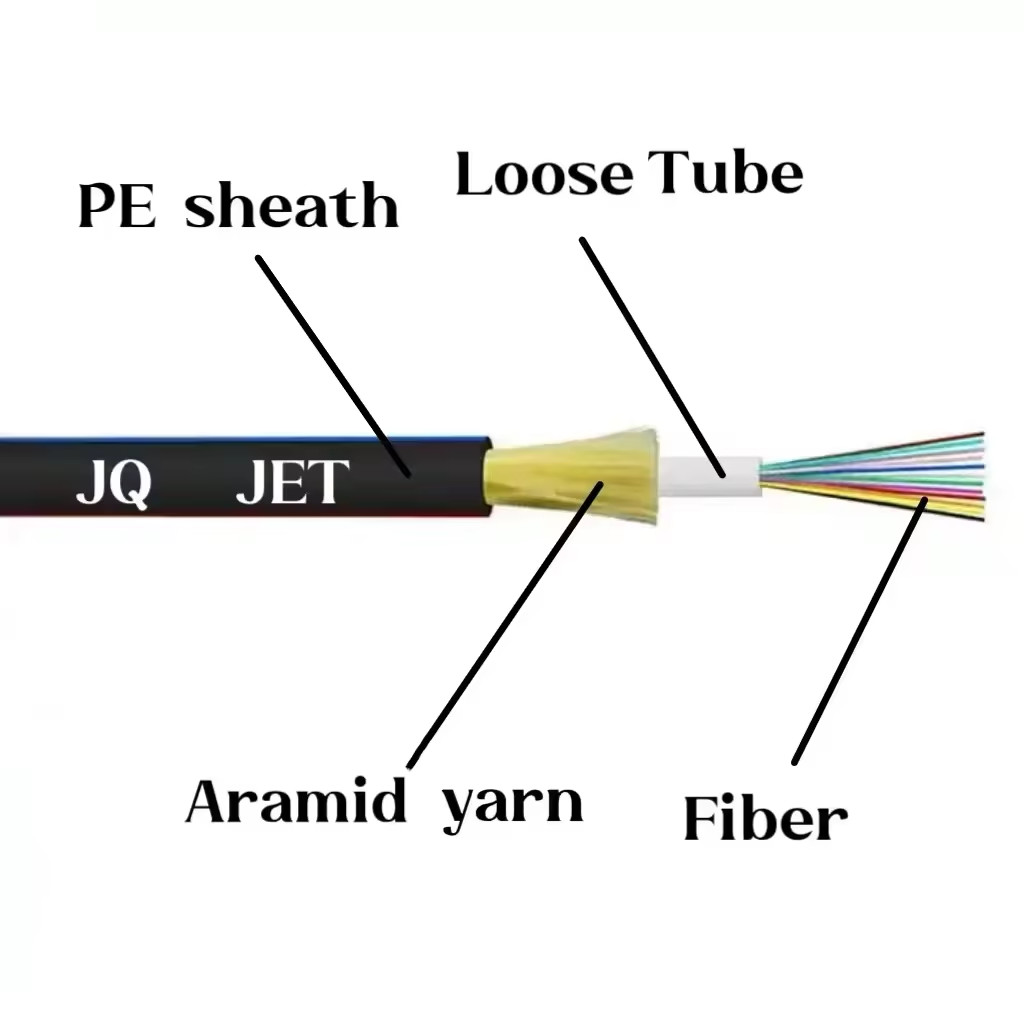

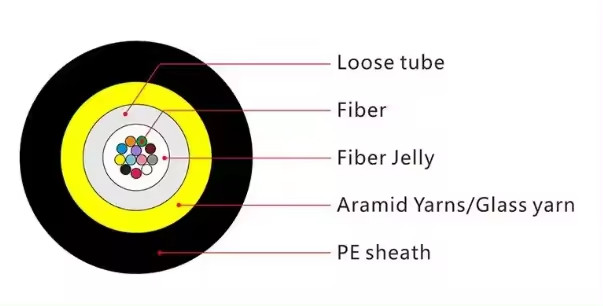

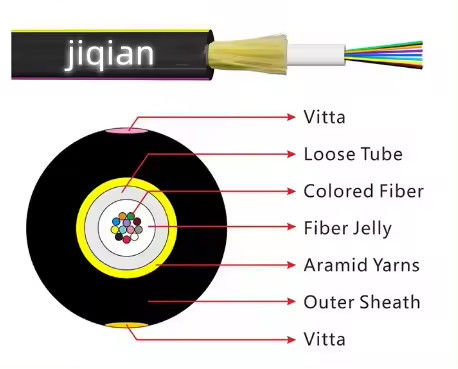

The fibers,200/250um, either of single-mode or multimode type, are positioned in aloose tube made of a high modulus plastic. The tubes are filled with a water-resistantfilling compound. A layer of aramid yarn or high strength glass is applied around thecable core as additional strength member. Then, the cable is completed with a black (color HDPE sheath.
·JET cable is relatively soft, with a certain tension, indoor and outdoor universal. Overhead, through the
pipe are more convenient.

JET 2-12 core outdoor optical fiber cable no mental manufacture supply 0

Characteristics:

· Specially designed compact structure is good at preventing loose tubes from shrinking.
· Aramid yarn ensures good performance of tensile strength.
· Loose tube filling compound ensure good moisture resistance performance.
· Good flexibility.
· High dense fiber packed, small diameter and light weight; it's the better option for blowing installation process.

Specification:

Model Number
JET
Fiber count
2-12 Cores
Fiber Type
G652D or as your need
Structure
Central loose Tube
Jacket material
PE /HDPE/LSZH
Jacket color
Black
Loose tube Material
PBT or as your need
Armored or not
Non-armoure, aramid yarn strength member
Certification
CE/ROHS/ISO9001
Application
FTTH indoor outdoor
1310nm
≤0.34dB
1550nm
≤0.21dB
Package
Plywood drum
Operating environment:
- 40 ~ 60 ℃
Place of Origin
Guangdong, China


Structure and Technical Specifications:

Mechanical and Environmental Characteristics
Items
Unite
Specifications
Tension
(Long Term)
N
300
Tension
(Short Term)
N
800
Crush
(Long Term)
N/10cm
500
Crush
(Short Term)
N/10cm
1000
Min. Bend Radius(Dynamic)
mm
20D
Min. Bend Radius(Static)
mm
10D
Installation Temperature
-10~+60
Operating Temperature
-40~+60
Storage Temperature
-40~+60

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

JET 2-12 core outdoor optical fiber cable no mental manufacture supply 1JET 2-12 core outdoor optical fiber cable no mental manufacture supply 2

WHY CHOOSE US:

JET 2-12 core outdoor optical fiber cable no mental manufacture supply 3

JET 2-12 core outdoor optical fiber cable no mental manufacture supply 4

Certification:

JET 2-12 core outdoor optical fiber cable no mental manufacture supply 5

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
